Feature | Stage Gantry Structure Customization - GLE

  • High stiffness aluminum gantry structure.
  • Suitable for high acceleration and deceleration applications.
  • Maximize the working area.
  • Space saving.
  • Can be equipped with ironless or ironcore motor.

Dimensions | Stage Gantry Structure Customization - GLE

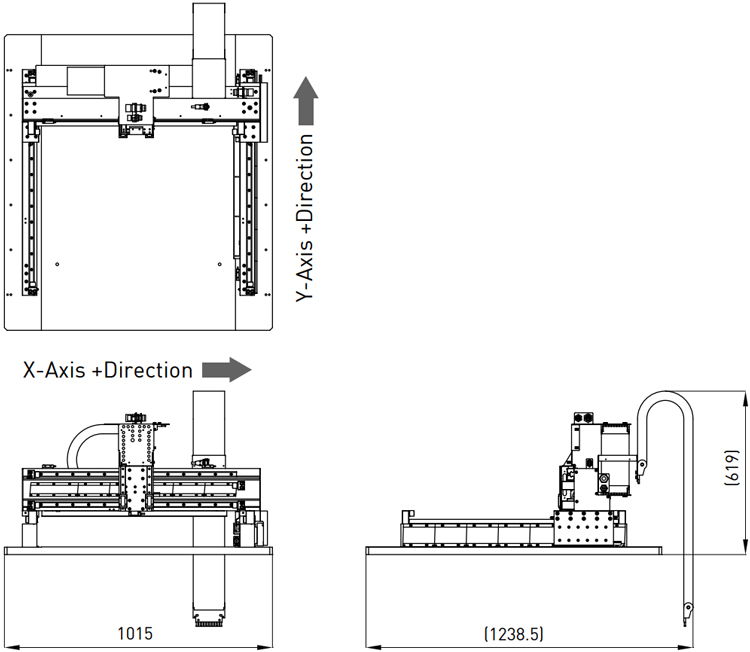

Dimensions - Hiwin Gantry Structure Customization - GLE


Specifications | Stage Gantry Structure Customization - GLE

Stage typeLMG2C-SA11SA22-580-500
Motor Type Ironcore(/Ironless) motor
Stroke(mm) X-axis :580, Y-axis :500
Peak Force(N) / Continuous Force(N) X-axis : 289/121, Y-axis : 1023/426
Repeatability(µm) ±2.5(uni-direction, with HIWIN solution)
Accuracy(µm) ±5(after error mapping)
Max. Acceleration(m/s2) X-axis : 10, Y-axis: 10(with payload)
Max. Velocity(m/s) X-axis : 0.5, Y-axis: 0.5(with payload)
Vertical Straightnees(µm) ±5
Horizontal Straightnees(µm) ±5
Payload(kg) 12
Stage orientation Horizontal

Note : All specifications can be designed according to customer demand.
