Stage Dual Axis Customization - DLA

ดาวน์โหลดไฟล์ PDF

Feature | Stage Dual Axis Customization - DLA

• Integrationof high-precision torque motor.
• XY positioning with high precision angular compresation.
• Use dust-proof desgin. High stiffness extruded aluminum structure.
• Can be equipped with ironless ironcore motor.

---

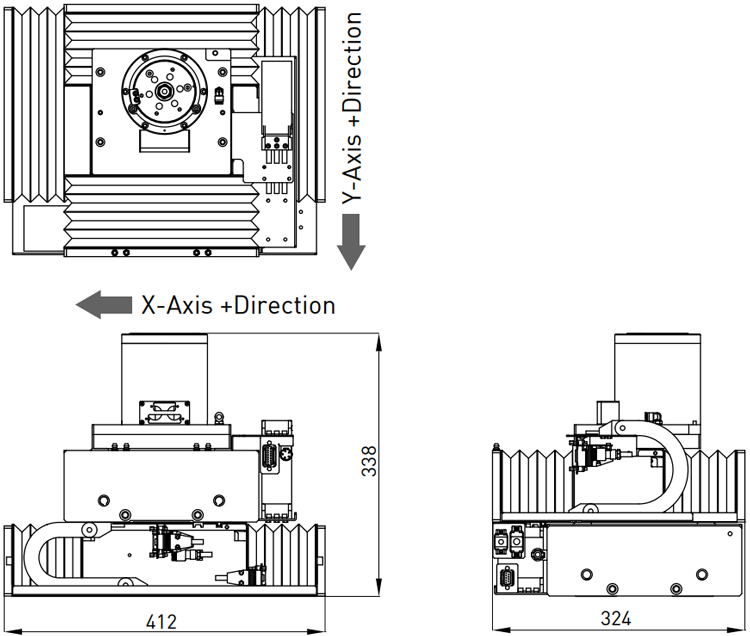

Dimensions | Stage Dual Axis Customization - DLA

---

Specifications | Dual Axis Customization - DLA

Stage type	LMX2C-CB4CB7-50-50+TMS03
Motor Type	Ironless(/Ironcore) motor
Stroke(mm)	50
Peak Force(N) / Continuous Force(N)	X-axis : 512/128, Y-axis : 292/73
Repeatability(µm)	±1 (with HIWIN solution)
Accuracy(µm)	±5 (after error mapping)
Max. Acceleration(m/s2)	X-axis : 5, Y-axis : 5(with payload)
Max. Velocity(m/s)	X-axis : 0.4, Y-axis : 0.2(with payload)
Payload(kg)	5
Stage orientation	Horizontal
Torque Motor Type	TMS03
Peak Torque(Nm) / Continuous Torque(Nm)	9.3/3.1
Max. Velocity(rpm)	500(220V)
Repeatability(arc-sec)	±3
Accuracy(arc-sec)	±45
Inertia of rotation parts(kgm2)	0.003

Note : All specifications can be designed according to customer demand.
