Hiwin Shaft Motors - LMTB series

The HIWIN LMTB series: LMTB = Diameter of stator = 25.4mm, Peak = 208N - 416N, Continuous = 52N - 104N

Linear Shaft Motors - LMTB series

The HIWIN rod-shaped linear motor has a variety of size series, with complete specifications, and easy installation. The maximum peak force for this motor is up to about 2570N. It complies with international safety CE certification, has dustproof and a waterprood IP66 rating. Using direct drive technology, on other mechanical conversion components arr needed to acieve linear tranmission, with high-speed, no cogging and low velocity ripple along with other characteristics including; excellent dynamic performance, no wear, zero backlash, and easy maintenance. Compared to traditional mechanical linear solutions, the motor effectively enhances machine equipment production capacity and reduces maintenance costs to meet the needs of high-precision positioning control and smooth operation applications such as high-speed light-load automation equipment, dust-free environment, automation equipment, panel equipment, optical inspection equipment, tool line cutting equipment, scanning electron microscope equipment, medical automation and other industries.

ดาวน์โหลดไฟล์ PDF

Feature | Shaft Motors - LMTB series

• Excellent dynamic characteristics : no cogging
• Low velocity ripple
• Max. Acceleration up to 5G
• CE certification
• Ingress Protection rating : IP66
• No wear, zero backlash
• Similar to screw mechanism, easy to install

---

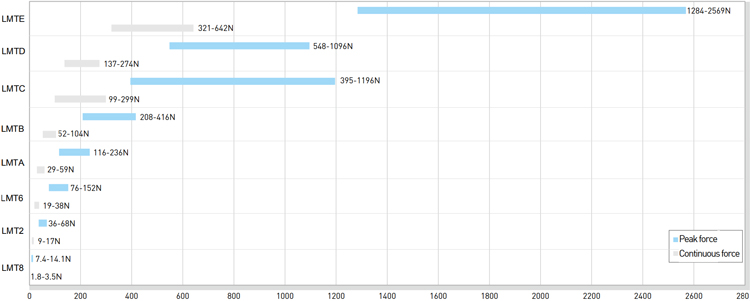

Force Chart | Shaft Motors - LMTB series

---

Code | Shaft Motors - LMTB series

---

Specifications | Shaft Motors - LMTB series

Detail	Symbol	Unit	LMTB2	LMTB3	LMTB4
Continuous force	Fc	N	52	78	104
Continuous current	Ic	Arms	1.3
Peak force (1s)	Fp	N	208	312	416
Peak current (1s)	Ip	Arms	5.2
Force constant	Kf	N/Arms	40	60	80
Electrical time constant	Ke	ms	1
Resistance (line to line 25°C)	R25	Ω	16.0	24.0	32.4
Inductance (line to line)	L	mH	16.5	24.7	33.0
Pole pair pitch	2T	mm	90
Minimum beanding radius of cable	Rbend	mm	37.5
Back emf constant (line to line)	Kv	Vrms/(m/s)	22	33	44
Motor constant ( 25°C)	Km	N/√W	8.2	10.0	11.6
Thermal resistance	RTH	°C/W	1.7	1.2	0.9
Thermal switch	-	-	PTC
Maximum DC bus voltage	-	VDC	325
Mass of forcer	Mf	kg	0.88	1.25	1.65
Unit mass of stator	Ms	kg/m	3.2
Length of forcer	Lf	mm	120	165	210
Mounting pitch	P1 x P2	mm	105 x 25	150 x 25	195 x 25
Stroke	S	mm	100 ~ 1550 (Take 50 mm as increase unit)
Clamping length	L1	mm	50 (Stroke = 100 ~ 700 mm) 70 (Stroke = 750 ~ 1300 mm) 100 (Stroke = 1350 ~ 1550 mm)
Total stator length	Ls	mm	Ls (Total stator length) = S (Stroke) + Lf (Length of forcer) + 2*L1 (Clamping legnth)

1. Values in the table refer to opeartion without forced cooling.
2. Except diemensions, the electrical specificaitons are in ±10% of tolerance.
3. We reserve the right of changes, please follow customer recognition drawings.
