Hiwin Shaft Motors - LMT2 series

The HIWIN LMT2 series: LMT2 = Diameter of stator = 12mm, Peak = 36N - 68N, Continuous = 9N - 17N

Linear Shaft Motors - LMT2 series

The HIWIN rod-shaped linear motor has a variety of size series, with complete specifications, and easy installation. The maximum peak force for this motor is up to about 2570N. It complies with international safety CE certification, has dustproof and a waterprood IP66 rating. Using direct drive technology, on other mechanical conversion components arr needed to acieve linear tranmission, with high-speed, no cogging and low velocity ripple along with other characteristics including; excellent dynamic performance, no wear, zero backlash, and easy maintenance. Compared to traditional mechanical linear solutions, the motor effectively enhances machine equipment production capacity and reduces maintenance costs to meet the needs of high-precision positioning control and smooth operation applications such as high-speed light-load automation equipment, dust-free environment, automation equipment, panel equipment, optical inspection equipment, tool line cutting equipment, scanning electron microscope equipment, medical automation and other industries.

ดาวน์โหลดไฟล์ PDF
Shaft Motor - LMT2 series
Hiwin Linear Shaft Motors - LMT2 series

Feature | Shaft Motors - LMT2 series

  • Excellent dynamic characteristics : no cogging
  • Low velocity ripple
  • Max. Acceleration up to 5G
  • CE certification
  • Ingress Protection rating : IP66
  • No wear, zero backlash
  • Similar to screw mechanism, easy to install

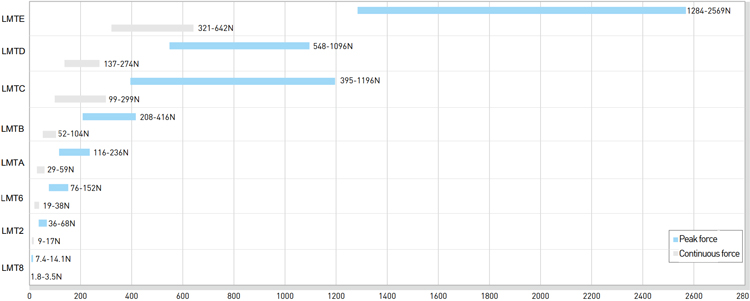

Force Chart | Shaft Motors - LMT2 series

Shaft Motor - LMT2 series

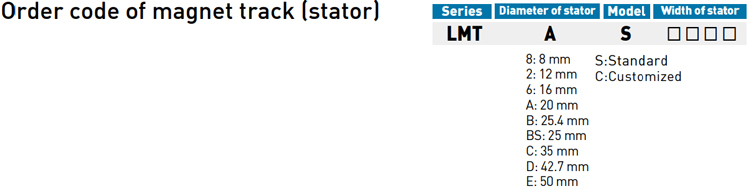

Code | Shaft Motors - LMT2 series

Shaft Motor - LMT2 series

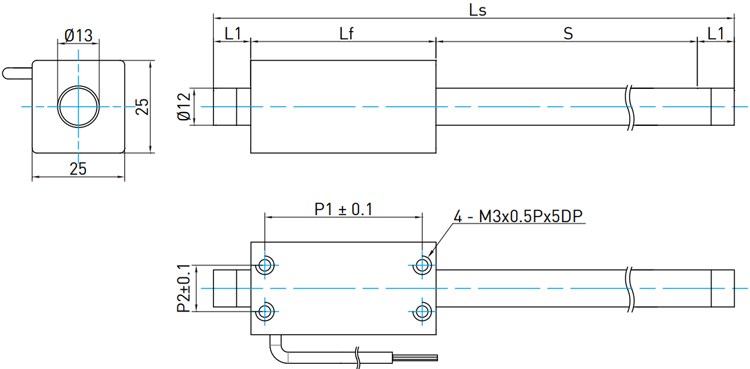

Specifications | Shaft Motors - LMT2 series

DetailSymbolUnitLMT2DLMT2TLMT2Q
Continuous force Fc N 9 13 17
Continuous current Ic Arms 1.5
Peak force (1s) Fp N 36 52 68
Peak current (1s) Ip Arms 6
Force constant Kf N/Arms 5.7 8.6 11.4
Electrical time constant Ke ms 0.3
Resistance (line to line 25°C) R25 Ω 4.2 6.3 8.4
Inductance (line to line) L mH 1.1 1.7 2.2
Pole pair pitch 2T mm 48
Minimum beanding radius of cable Rbend mm 31
Back emf constant (line to line) Kv Vrms/(m/s) 2.8 4.2 5.6
Motor constant ( 25°C) Km N/√W 2.4 2.8 3.2
Thermal resistance RTH °C/W 5.4 3.6 2.7
Thermal switch - - PTC
Maximum DC bus voltage - VDC 325
Mass of forcer Mf kg 0.12 0.15 0.19
Unit mass of stator Ms kg/m 0.9
Length of forcer Lf mm 64 88 112
Mounting pitch P1 x P2 mm 56 x 12 80 x 12 104 x 12
Stroke S mm 50 ~ 1050 (Take 50 mm as increase unit)
Clamping length L1 mm 25 (Stroke = 50 ~ 350 mm)
40 (Stroke = 400 ~ 800 mm)
60 (Stroke = 850 ~ 1050 mm)
Total stator length Ls mm Ls (Total stator length) = S (Stroke) + Lf (Length of forcer) + 2*L1 (Clamping legnth)
  1. Values in the table refer to operation without forced cooling.
  2. Except diemensions, the electrical specificaitons are in ±10% of lolerance.
  3. We reserve the right of changes, please follow customer recognition drawings.
