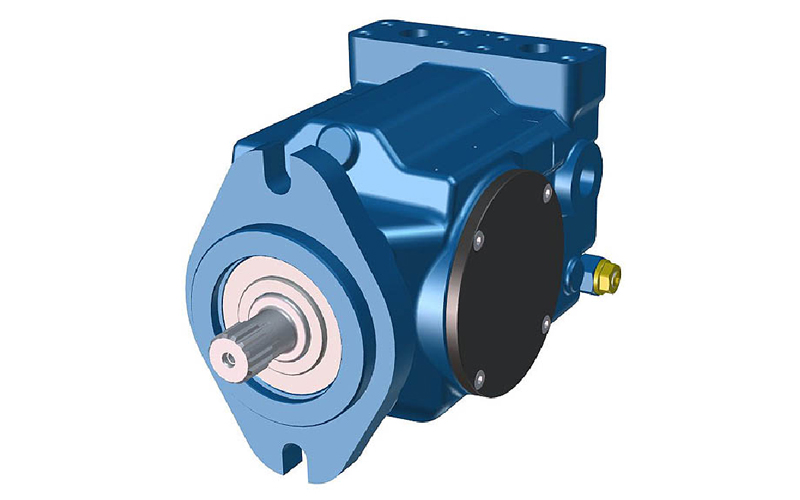

DANA Motor Variable Displacement - MD11V series

MD11V series are a family of variable displacement motors, swash plate design for operation in both open and closed circuit. The high quality components and manufacturing techniques make able the MD11V series motors to provide up to 300 bar [4350 psi] continuous and 400 bar [5800 psi] peak performance.

DANA Axial piston Motor Variable Displacement - MD11V series

DANA

ดาวน์โหลดไฟล์ PDF

DANA Motor Variable Displacement MD11V
DANA Motor Variable Displacement MD11V

Feature | DANA Motor Variable Displacement MD11V

Fully laboratory tested and field proven, these motors provide maximum efficiency and long life. Heavy duty bearings permit high radial and axial loads. The MD11V series motors will adapt to any application both industrial and mobile.


Specifications | DANA Motor Variable Displacement MD11V

SeriesMD11V
Displacement Vgmax cm3/giro
[in3/rev]
46
[2.81]
50
[3.05]
64
[3.90]
Vgmax cm3/giro
[in3/rev]
23
[1.403]
25
[1.525]
32
[1.952]
Maximum pressure Continuous Pnom bar
[psi]
300
[4350]
300
[4350]
300
[4350]
Peak Pmax bar
[psi]
400
[5800]
400
[5800]
400
[5800]
Maximum flow qmax l/min
[U.S. gpm]
184
[48.57]
200
[52.8]
256
[67.58]
Maximum speed nmax rpm 4000 4000 4000
Minimum speed nmin rpm 700 700 700
Maximum power (nominal) Pmax kW
[hp]
92
[123.3]
100
[134]
128
[171.5]
Maximum torque shaft S22
13T - 16/32 DP
Tmax Nm
[lbf•ft]
300
[221.1]
300
[221.1]
300
[221.1]
S21
15T - 16/32 DP
Tmax Nm
[lbf•ft]
400
[294.8]
400
[294.8]
400
[294.8]
Moment of ineria J kg•m2
[lbf•ft2]
0.0046
[0.1082]
0.0046
[0.082]
0.0046
[0.1082]
Weight(1) m kg
[lbs]
20
[44.08]
20
[44.08]
20
[44.08]
(1) = Approximate values.

(Theorical values, without considering nnm and nv ; approximate values). Peak operations must not excede 1% of every 1% of every minute. A simultaneous maximum pressure and maximum speed not recommended.
