DANA Motor Variable Displacement - H2V series

H2V series are variable displacement bent axis, axial piston motors for operation both in open and closed circuit. The bearing of main shaft allows operation with both high radial and axial loads. Several types of control and flangeable valves are available.

DANA Axial piston Motor Variable Displacement - H2V series

DANA

ดาวน์โหลดไฟล์ PDF

DANA Motor Variable Displacement H2V
DANA Motor Variable Displacement H2V

Feature | DANA Motor Variable Displacement H2V

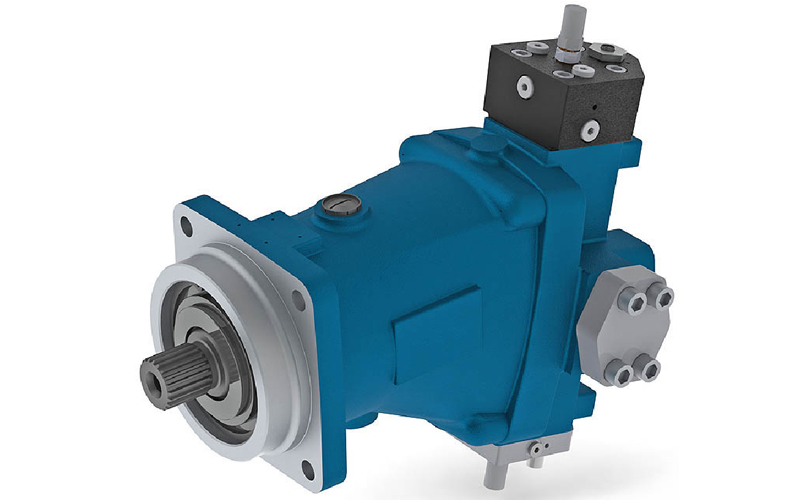

H2V series are a family of variable displacement motors, bent axis piston design for operation in both open and closed circuit. The proven design incorporating the lens shape valve plate, the high quality components and manufacturing techniques make able the H2V series motors to provide up to 350 bar [5100 psi] continuous and 450 bar [6500 psi] peak performance. Fully laboratory tested and field proven, these motors provide maximum efficiency and long life even at very bad filtering conditions. Heavy duty bearings permit high radial and axial loads. Versatile design includes a variety of control and shaft ends that will adapt the H2V series motors to any application both industrial and mobile. H2V series motors are available in both ISO and SAE version.


Code | DANA Motor Variable Displacement H2V

DANA Motor Variable Displacement H2V

Controls table | DANA Motor Variable Displacement H2V

Pressure control PE PE100 PE+PI
Hydraulic controls       PI 2PI PI+PE 2PI+PE
Ekectric controls               EM 2EM EM+PE 2EM+PE
Manual control                       LC
Displacement setting 1 (Vgmax-Vgmin)
2 (Vgmin-Vgmax)
Pressure setting 100+350 bar
[1450+5075 psi]

Pressure range for displacement variation form Vgmin to Vgmax (100-1)
△p 100 bar [1450 psi]

(100-2)
△p 75 bar [1087 psi]

(100-3)
△p 55 bar [797 psi]

(100-4)
△p 145 bar [2102 psi]

Solenoid voltage 12V
24V

Specifications | DANA Motor Variable Displacement H2V

H2V55*75*108*226
Shaft end C (cylindrical keyed)
S (splined)
Port plate L2 (side port)
F2 (side port)
Direction of rotation Viewed from shaft side) R (reversible)
Control See control table
Displacement range (min/max) 28/55 38/75 54/108 113/226
Version M (ISO)
SAE
Seals NBR (Nitrile)
FKM (Viton®)
Flangeable valves on F2 (1) Flushing VSC06F
VSC09F
VSC15F
VSC21F
Overcentre VCD/1
VCD/2
VCD/3
Flangeable vales on F2(1) Double acting Overcentre VCR2 D/AF
Displacement Vg max cm3/rev
[in3/rev]
54.8
[3.34]
75.3
[4.60]
107.5
[6.56]
225.1
[13.73]
Vg min cm3/rev
[in3/rev]
15.8
[0.96]
21.7
[1.33]
31.0
[1./89]
64.9
[3.96]
Max. pressure cont. pnom bar
[psi]
350
[5100]
peak pmax bar
[psi]
450
[6500]
Max. flow qmax l/min
[U.S. gpm]
214
[56.5]
263.5
[69.5]
344
[90.5]
563
[148.5]
Max. speed at Vgmax qmax nmax rpm 3900 3500 3200 2500
Max. speed at Vg < Vgmax (2) nmax lim rpm 5100 4600 4200 3200
Torque constant Vgmax Tk Nm/bar
[lbf•ft/psi]
0.87
[0.044]
1.20
[0.061]
1.71
[0.087]
3.58
[0.18]
Max. power at qmax e pnom Pmax kW
[hp]
125
[167]
154
[206]
201
[269]
328
[440]
Max. torque at Vg max cont
(pnom)
Tnom Nm
[lbf•ft]
305
[224.5]
420
[310]
599
[442]
1254
[925]
peak
[lbf•ft2]
Tmax Nm
[lbf•ft]
392
[289]
540
[398]
770
[568]
1613
[1189]
Moment of inertia J kg•m2
[lbf•ft2]
0.004
[0.095]
0.008
[0.189]
0.013
[0.308]
0.040
[0.948]
Weight (3) m kg
[lbs]
29
[64]
41
[90]
54
[119]
106
[234]
Drainage flow (4) qd l/min
[U.S gpm]
1.5
[0.39]
2.0
[0.53]
2.8
[0.74]
4.9
[1.29]
