DANA Electronics - Control systems valve

Electronic control systems valve have to 4 series. It good controls system: LAB3 Series, MAV1152HY Series, MAV1152 Series, MAV4211 Series

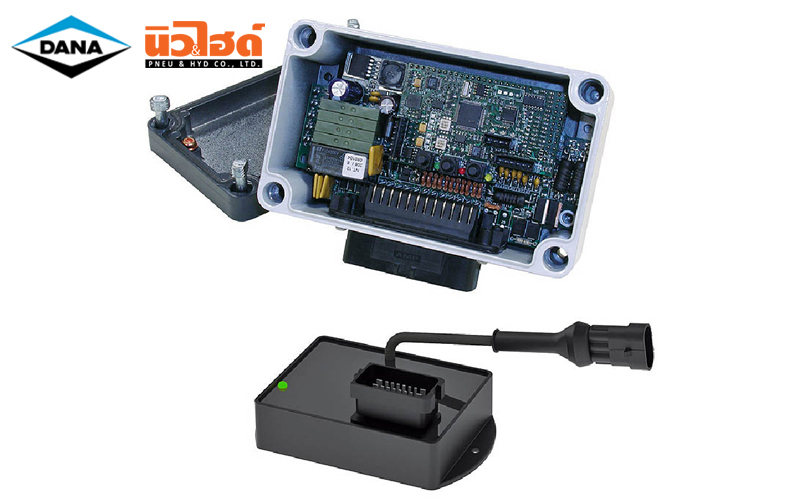

DANA Electronics Control systems valve

ดาวน์โหลดไฟล์ PDF

DANA Electronics control systems valve
DANA Electronics Control systems valve

Feature | DANA Electronics Control systems valve

Control systems valve - LAB3 series

The card has two outputs PWM current feedback to control a proportional valve, a safety relay output to stop the movements, two digital output signal basket inclination, when exceeds 6°. The optimization of working parameters can be easily done via serial connection and user interface software BPE_Terminal. Using BPE terminal can make the alignment of the zero level of the LAB3 with the zero tilt basket, set the minimum current to the proportional levelling valve, the current gain, change the operating angle of the two current outputs for the alert of 6° exeeciding basket tilt, and finally adjust the width of the dead zone in correspondence of the zero grade requirements.


Control systems valve - MAV1152HY series

The MAV1152HY controller unit is used for the control of one proportional solenoids and additional switching valves. The proportional solenoid output is pulse-width-modulated (PWM) and optimally adapted for electric proportional control of Brevini Fluid Power products. The switched outputs are designed for the direct switching of on/off solenoids, relays, and lamps. The MAV unit can managed 1 PWM current output and 5×2 switched outputs + venting valve (max load 9 Amperes). The RS232 serial interface and BPE software tool enables the connection of PC for service functions, such as diagnostics, parameter setting or display of process variables.


Control systems valve - MAV1152 series

The MAV1152 controller unit is used for the control of one proportional solenoids and additional switching valves. The proportional solenoid output is pulse-width-modulated (PWM) and optimally adapted for electric proportional control of Brevini Fluid Power products. The switched outputs are designed for the direct switching of on/off solenoids, relays, and lamps. The MAV unit can managed up to 5 analog input signal and 1 PWM current output + 5×2 switched outputs ( max load 9 Amperes ). The RS232 serial interface and BPE software tool enables the connection of PC for service functions, such as diagnostics, parameter setting or display of process variables.


Control systems valve - MAV4211 series

MAV4211: Electronic module for integrated control of proportional valves, bankable valves and proportional directional valves HPV Brevini Fluid Power. The MAV4211 controller unit is used for the control of proportional solenoids and additional switching functions. The proportional solenoid outputs are pulse-width-modulated (PWM) and optimally adapted for electric proportional control of Brevini Fluid Power products. The switched outputs are designed for the direct switching of relays, lamps and switching solenoids. The MAV unit can managed up to 4 analog input signal and 8 PWM current output (4 PWM current output simultaneous, max load 9 Amperes ). The RS232 serial interface and BPE software tool enables the connection of PC for service functions, such as diagnostics, parameter setting or display of process variables.
