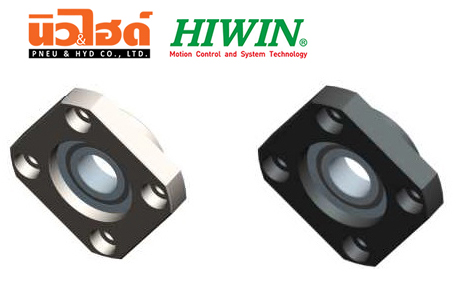

HIWIN Ball screw Support Units - FF series

ไฮวินอุปกรณ์ยึดหัว-ท้ายบอลสกรู FF

HIWIN offers various Ball screw support units to satisfy the mounting or loading requirements of any application.

วิธีการเลือกรุ่น: HIWIN Ball screw Support Unit FF series

1. ∆∆ : 11 Product codes can be classified as fixed-end AK, BK, FK, LK and supported-end AF, BF, EF, FF, LF, LFA
2. ○○ : Nominal size of bearing bore. There are 2 digit and the unit are in millimeters(mm). e.g. 30 refers to diameter 30mm, and 35 means diameter 35 mm. The nominal diameter of the supported-end refers to the nominal diameter opposite to the fixed-end; the inner diameter of the supported end is equal to or smaller than nominal diameter.
3. ☐ : Bearing type. Blank refers to standard production which uses a 30 degree angular contact bearing. On shaft diameter over 20mm, a 40 degree angular contact bearing is available. Nominal diameter of 35mm and 40 mm require higher radial loading and are only offered with the 40 degree angular contact bearing.
4. C3 : There are 3 precision classes C3, C5 and C7. It is suggested to use C3 support with a C3 ballscrew, and C5 ballscrew can be used with C3 or C5 support units, which enable the support units precision to match the ballscrews preicsion. C7 ball screws should only be used with C7 support units.
5. ♢ : There are 2 types of surface tratments availavble: blackening and nickel plating. Black refers to blackening which is HIWIN standard. N refers to nickel plating. which is manufactured by order.

---

รายละเอียด: HIWIN Ball screw Support Unit FF series

Part No.	Part name	No. of units
1	Housing	1
2	Bearing	1 set
3	Snap ring	1

---

คุณสมบัติทางเทคนิค: HIWIN Ball screw Support Unit FF series

ด้านที่ไม่มีมอเตอร์
Supported Side
Internal Diameter (mm)	Type	Bearing	Radial Direction
	FF		Basic Dynamic Load rating C (kN)	Basic Static Load rating C0 (kN)
ϕ5	FK05(C7)	605	1.3	0.5
ϕ6	FF06	606ZZ	2.2	0.8
ϕ8	FF10	608ZZ	3.3	1.3
ϕ10	FF12	6000ZZ	4.5	1.9
ϕ15	FF15	6002ZZ	5.6	2.8
ϕ17	FF17	6203ZZ	9.5	4.8
ϕ20	FF20	6204ZZ	12.8	6.6
ϕ25	FF25	6205ZZ	14	7.8
ϕ30	FF30	6206ZZ	19.5	11.3

Note
1. Tolerance of Height (h) and tolerance of Width (b) refer to the precision of standard bearing.
2. Specification are subject to change without notice.
