Basic Switches - A
OMRON Basic Switches - A
Model Numbers
Specifications
Dimensions
Features

Model Numbers | Basic Switches - A

TerminalSolder terminal Screw terminal (-B)
ActuatorModelModel
Pin plunger A-20G A-20G-B
Short spring plunger A-20GD A-20GD-B
Panel mount plunger A-20GQ A-20GQ-B
Panel mount roller plunger A-20GQ22 A-20GQ22-B
Panel mount cross roller plunger --- A-20GQ21-B
Short hinge lever A-20GV21 A-20GV21-B
Hinge lever A-20GV A-20GV-B
Short hinge roller lever A-20GV22 A-20GV22-B
Hinge roller lever A-20GV2 A-20GV2-B

Accessories (Order Separately)

Terminal Covers (Sold Separately)

The Terminal Covers can be attached to Z, A, X, and DZ Switches.
The Terminal Cover is secured with mounting screws and protects the casing and terminal wires from dust, vibration, or fingers, thus preventing terminal short-circuiting, ground faults, wire disconnection or improper connection, and electric shock accidents.
Terminal Covers made of phenol resin have five or six thin wall sections. These sections can be torn open for providing holes for lead cables at desired points.
A terminal cover can’t be used in the case of using an actuator sold separately.

Note: Use a Terminal Cover for screw terminals fir DZ-series Switches w

ApplicationSoldering
terminal use
Screw
terminal use
Remarks
MaterialMounting directionModel
Phenol resinSide mounting AP-A AP-B ---
Metal press moldSide mounting AP1-A AP1-B Used for AP-A and AP-B
Vinyl chlorideSide mounting AP-Z ---

ith soldering terminals.

Separator (Sold Separately)

Use a Separator when it is difficult to provide a sufficient insulation distance or when using the Switch near metal parts or copper wires.

Model
SEPARATOR FOR Z

Specifications | Basic Switches - A

Ratings

Rated
voltage
(V)
Non-inductive load (A)Inductive load (A)
Resistive
load
Lamp loadInductive
load
Motor load
NCNONCNONCNONCNO
125 VAC
250 VAC
500 VAC
20
20
15
7.5
7.5
4
20
20
10
12.5
8.3
2
8 VDC
14 VDC
30 VDC
125 VDC
250 VDC
20
20
6
0.5
0.25
3
3
3
0.5
0.25
1.5
1.5
1.5
0.5
0.25
20
15
5
0.05
0.03
12.5
12.5
5
0.05
0.03

Note:Note:
1. The above values are for steady-state current.
2. Inductive load has a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. Lamp load has an inrush current of 10 times the steady-state current.
4. Motor load has an inrush current of 6 times the steady-state current.
5. The ratings values apply under the following test conditions:
(1) Ambient temperature: 20±2°C
(2) Ambient humidity: 65±5%RH
(3) Operating frequency: 20 operations/min

Characteristics

Operating speed 0.01 mm to 1m/s * 1
Operating frequencyMechanical 240 operations/min
Electrical 20 operations/min
Insulation resistance 100 MΩ min. (at 500 VDC)
Contact resistance 15 mΩ max. (initial value)
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min between
terminals of the same polarity
2,000 VAC, 50/60 Hz for 1 min between the
current-carrying metal parts and the ground,
and between each terminal and non-current-
carrying metal parts
Vibration resistanceMalfunction 10 to 55 Hz, 1.5-mm double amplitude * 2
Shock resistanceDestruction 1,000 m/s2 max.
Malfunction 300 m/2 max. * 1 * 2
DurabilityMechanical 1,000,000 operations min.
Electrical 500,000 operations min.
Degree of protection IP00
Degree of protection against electric shock Class I
Proof tracking index (PTI) 175
Ambient operating temperature -25 ° C to 80 ° C (with no icing)
Ambient operating humidity 35% to 85%RH
Weight Approx. 22 to 58 g

Note:*1. The value is for the pin plunger. (Contact your OMRON representative for other models.)
*2. Malfunction: 1 ms max.

Contact Specification

ContactsShapeRivet
MaterialSilver alloy
Gap (standard value) 0.5 mm
Inrush currentNC 75 A max.
NO 75 A max.

Dimensions | Basic Switches - A

Terminals

Screw Terminals (-B)

A Dimensions 2

Solder Terminal (-A)

("-A" is not included in the model numbers.)

A Dimensions 3

Note: 1. Appropriate terminal screw tightening torque: 0.78 to 1.18 Nm.
2. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Mounting Holes

Use M4 mounting screws with plane washers or spring washers to securely mount the Switch. Tighten the screws to a torque of 1.18 to 1.47 Nm.

A Dimensions 5

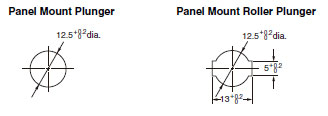

The Switch can be panel mounted, provided that the hexagonal nut of the actuator is tightened to a torque of 2.94 to 4.9 Nm.

A Dimensions 6

The models, illustrations, and graphics are for screw-terminal models. (The dimensions for models that are omitted here are the same as for pin-plunger models.)

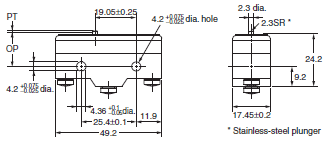

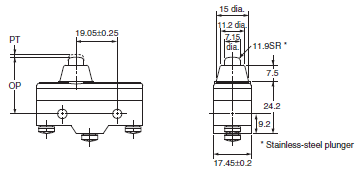

Pin Plunger
A-20G-B

A Dimensions 8

Short Spring Plunger
A-20GD-B

A Dimensions 9

Panel Mount Plunger
A-20GQ-B

A Dimensions 10

Note: Do not use both M12 mounting screw and mounting holes at the same time.

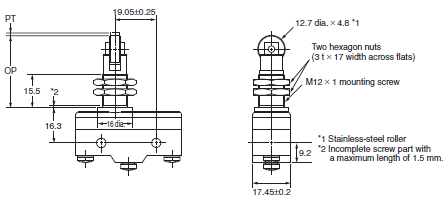

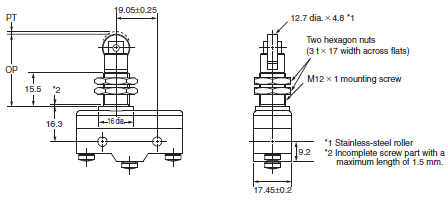

Panel Mount Roller Plunger
A-20GQ22-B

A Dimensions 11

Note: Do not use both M12 mounting screw and mounting holes at the same time.

Panel Mount Cross Roller Plunger
A-20GQ21-B

A Dimensions 12

Note: Do not use both M12 mounting screw and mounting holes at the same time.

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

A Dimensions 14

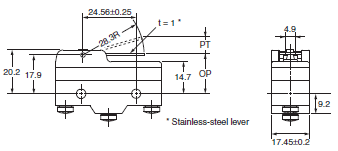

Short Hinge Lever
A-20GV21-B

A Dimensions 15

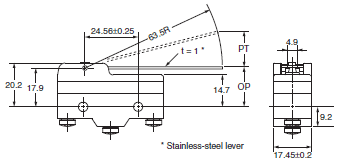

Hinge Lever
A-20GV-B

A Dimensions 16

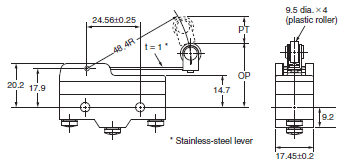

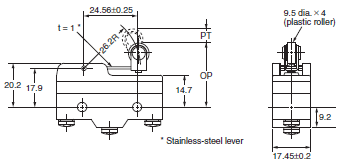

Short Hinge Roller Lever
A-20GV22-B

A Dimensions 17

Hinge Roller Lever
A-20GV2-B

A Dimensions 18

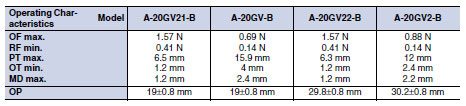

Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

A Dimensions 20

Terminal Covers

AP-A

Soldering Terminal Use (Phenol Resin)

A Dimensions 23

Note: The Cover has five thin, easy-to-separate portions for easy lead wire connections.

AP-B

Screw Terminal Use (Phenol Resin)

A Dimensions 25

Note: The Cover has six thin, easy-to-separate portions for easy lead wire connections.

AP1-A

Soldering Terminal Use (Metal Press Mold)

A Dimensions 27

Note: The Cover has five holes for easy lead wire connections.

AP1-B

Screw Terminal Use (Metal Press Mold)

A Dimensions 29

Note: The Cover has six holes for easy lead wire connections.

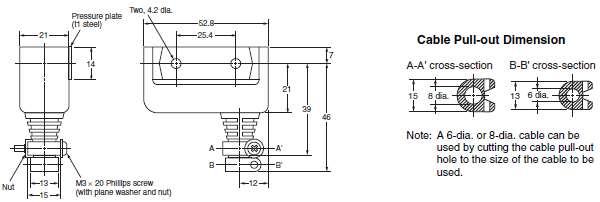

AP-Z

Soldering or Screw Terminal Use (Vinyl Chloride)

A Dimensions 30

Note: Each dimension has a tolerance of ±0.4 mm unless otherwise specified. (±0.8 mm for the AP-Z)

Separator

SEPARATOR FOR Z

A Dimensions 33

Note: 1. Each dimension has a tolerance of ±0.4 mm unless otherwise specified.
2. The material is EAVTC (Epoxide Alkyd Varnished Tetron Cloth) and its heat-resisting temperature is 130°C.

Features | Basic Switches - A

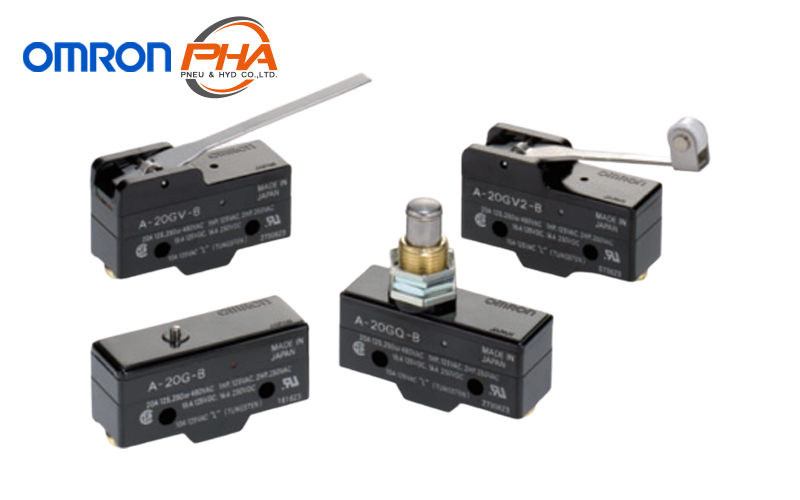

Same shape as OMRON Z Basic Switches except in pin plunger position, yet endures inrush currents as large as 75 A

Properties | Basic Switches - A


Basic SwitchesA
Rated voltage 125 - 500 VAC
8 - 250 VDC
Service life 10,000,000 ครั้ง
Contact resistance 0.5 mm (default)
Insuraltion resistance 100 MΩ min (ที่ 500 VDC)
Weight (g) 22 - 58
