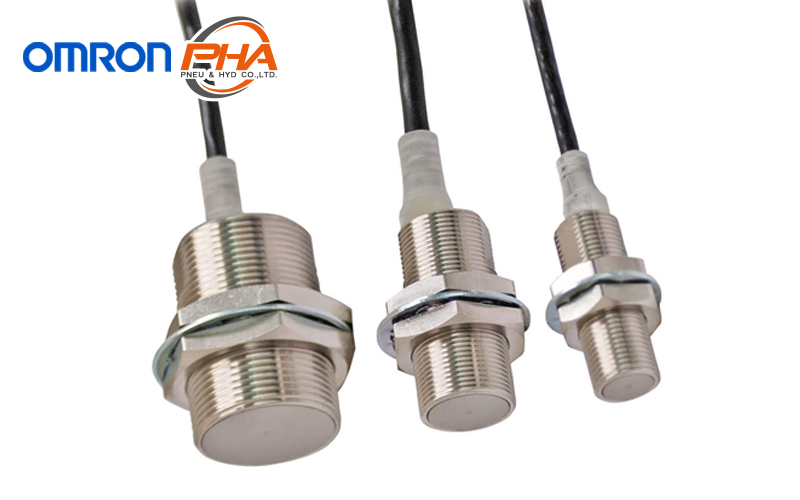

OMRON Proximity Sensor - E2ER / E2ERZ

Model Numbers | Proximity Sensor Cylindrical - E2ER / E2ERZ

Sensors

Standard Proximity Sensors

Appearance		Sensing distance	Connection method	Cable specifications	Model
					Operation mode: NO	Operation mode: NC
Shielded	M8	2 mm	Pre-wired Models (2 m)	Fluororesin	E2ER-X2D1 2M *	E2ER-X2D2 2M *
			M12 Pre-wired Smartclick Connector Models (0.3 m)		E2ER-X2D1-M1TGJ 0.3M	E2ER-X2D2-M1TGJ 0.3M
	M12	3 mm	Pre-wired Models (2 m)		E2ER-X3D1 2M *	E2ER-X3D2 2M *
			M12 Pre-wired Smartclick Connector Models (0.3 m)		E2ER-X3D1-M1TGJ 0.3M	E2ER-X3D2-M1TGJ 0.3M
	M18	7 mm	Pre-wired Models (2 m)		E2ER-X7D1 2M *	E2ER-X7D2 2M *
			M12 Pre-wired Smartclick Connector Models (0.3 m)		E2ER-X7D1-M1TGJ 0.3M	E2ER-X7D2-M1TGJ 0.3M
	M30	10 mm	Pre-wired Models (2 m)		E2ER-X10D1 2M *	E2ER-X10D2 2M *
			M12 Pre-wired Smartclick Connector Models (0.3 m)		E2ER-X10D1-M1TGJ 0.3M	E2ER-X10D2-M1TGJ 0.3M

* Models with 5-m cable length are also available with "5M" suffix. (Example: E2ER-X2D1 5M)

Chip-immune Proximity Sensors

Appearance		Sensing distance	Connection method	Cable specifications	Model
					Operation mode: NO	Operation mode: NC
Shielded	M12	2 mm	Pre-wired Models (2 m)	Fluororesin	E2ERZ-X2D1 2M *	E2ERZ-X2D2 2M *
			M12 Pre-wired Smartclick Connector Models (0.3 m)		E2ERZ-X2D1-M1TGJ 0.3M	E2ERZ-X2D2-M1TGJ 0.3M
	M18	4 mm	Pre-wired Models (2 m)		E2ERZ-X4D1 2M *	E2ERZ-X4D2 2M *
			M12 Pre-wired Smartclick Connector Models (0.3 m)		E2ERZ-X4D1-M1TGJ 0.3M	E2ERZ-X4D2-M1TGJ 0.3M
	M30	8 mm	Pre-wired Models (2 m)		E2ERZ-X8D1 2M *	E2ERZ-X8D2 2M *
			M12 Pre-wired Smartclick Connector Models (0.3 m)		E2ERZ-X8D1-M1TGJ 0.3M	E2ERZ-X8D2-M1TGJ 0.3M

* Models with 5-m cable length are also available with "5M" suffix. (Example: E2ERZ-X2D1 5M)

Accessories (Sold Separately)

Sensor I/O Connectors (M12, Sockets on One Cable End)

(Models for Pre-wired Connectors) A Sensor I/O Connector is not provided with the Sensor. It must be ordered separately as required.

Appearance	Cable diameter (mm)	Cable length	Sensor I/O Connector model number	Applicable Proximity Sensor model number

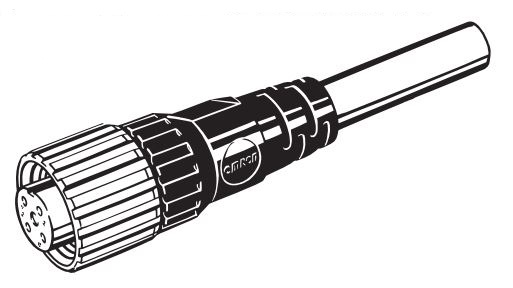

Straight, Smartclick Oil-resistant Connectors	4 dia.	2 m	XS5FR-D423-D80-RB1	E2ER-X[]D[]-M1TGJ E2ERZ-X[]D[]-M1TGJ
		5 m	XS5FR-D423-G80-RB1
		10 m	XS5FR-D423-J80-RB1

Note: Refer to the XS5[]R on catalog for connector details and for information on cables with connectors on both ends.

Specifications | Proximity Sensor Cylindrical - E2ER / E2ERZ

Standard Proximity Sensors

Size		M8	M12	M18	M30
Shielded		Shielded
Model		E2ER-X2D[]	E2ER-X3D[]	E2ER-X7D[]	E2ER-X10D[]
Sensing distance		2 mm ±10%	3 mm ±10%	7 mm ±10%	10 mm ±10%
Set distance *1		0 to 1.6 mm	0 to 2.4 mm	0 to 5.6 mm	0 to 8 mm
Differential travel		15% max. of sensing distance	10% max. of sensing distance
Detectable object		Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Catalog.)
Standard sensing object		Iron, 8 × 8 × 1 mm	Iron, 12 × 12 × 1 mm	Iron, 18 × 18 × 1 mm	Iron, 30 × 30 × 1 mm
Response frequency *2		1.5 kHz	1 kHz	0.5 kHz	0.4 kHz
Power supply voltage		10 to 30 VDC, (including 10% ripple (p-p))
Leakage current		0.8 mA max.
Control output	Load current	3 to 100 mA
	Residual voltage	3 V max. (Load current: 100 mA, Cable length: 2 m)
Indicators		D1 Models: Operation indicator (red), Setting indicator (green) D2 Models: Operation indicator (red)
Operation mode (with sensing object approaching)		D1 Models: NO D2 Models: NC Refer to the timing charts under I/O Circuit Diagrams on Catalog for details.
Protection circuits		Surge suppressor, Load short-circuit protection
Ambient temperature range		Operating: -25 to 70°C, Storage: -40 to 85°C (with no icing or condensation)
Ambient humidity range		Operating and Storage: 35% to 95% (with no condensation)
Temperature influence		±15% max. of sensing distance at 23°C in the temperature range of -25 to 70°C	±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence		±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		500 m/s2 10 times each in X, Y, and Z directions	1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		IP67 (IEC 60529) and IP67G *3 (JIS C 0920 Annex 1) Passed OMRON's Oil-resistant Component Evaluation Standards *4 (Cutting oil type: specified in JIS K 2241:2000, Temperature: 35 °C max.)
Connection method		Pre-wired Models (Standard cable length: 2 m) and Pre-wired Connector Models (Standard cable length: 300 mm)
Weight (packed state)	Pre-wired Models	Approx. 65 g	Approx. 75 g	Approx. 145 g	Approx. 215 g
	Pre-wired Connector Models	Approx. 30 g	Approx. 40 g	Approx. 90 g	Approx. 155 g
Materials	Case	Stainless steel (SUS303)	Nickel-plated brass
	Sensing surface	Polybutylene terephthalate (PBT)
	Clamping nuts	Nickel-plated brass
	Toothed washer	Zinc-plated iron
Accessories		Instruction manual

*1. Use the Sensor within the range in which the setting indicator (green LED) is ON (except D2 Models).
*2. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object, and a set distance of half the sensing distance.
*3. The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance to oil.
*4. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards.
The Pre-wired Connector Model meets the degree of protection when it is correctly connected with an XS5[]R Oil-resistant Connector.
The degree of protection is not satisfied with the part where there is no XS5FR Oil-resistant Connector connected and cable wires are uncovered. And as for the Pre-wired Models, the degree of protection is not satisfied with the part where cable wires are uncovered.

Chip-immune Proximity Sensors

Size		M12	M18	M30
Shielded		Shielded
Model		E2ERZ-X2D[]	E2ERZ-X4D[]	E2ERZ-X8D[]
Sensing distance		2 mm ±10%	4 mm ±10%	8 mm ±10%
Set distance *1		0 to 1.6 mm	0 to 3.2 mm	0 to 6.4 mm
Differential travel		20% max. of sensing distance
Detectable object		Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Catalog.)
Standard sensing object		Iron, 12 × 12 × 1 mm	Iron, 30 × 30 × 1 mm	Iron, 54 × 54 × 1 mm
Response frequency *2		200 Hz	100 Hz	30 Hz
Power supply voltage		10 to 30 VDC, (including 10% ripple (p-p))
Leakage current		0.8 mA max.
Control output	Load current	3 to 100 mA
	Residual voltage	3 V max. (Load current: 100 mA, Cable length: 2 m)
Indicators		D1 Models: Operation indicator (red), Setting indicator (green) D2 Models: Operation indicator (red)
Operation mode (with sensing object approaching)		D1 Models: NO D2 Models: NC Refer to the timing charts under I/O Circuit Diagrams on Catalog for details.
Protection circuits		Surge suppressor, Load short-circuit protection
Ambient temperature range		Operating and Storage: 0 to 50°C (with no icing or condensation)
Ambient humidity range		Operating and Storage: 35% to 95% (with no condensation)
Temperature influence		±20% max. of sensing distance at 23°C in the temperature range of 0 to 50°C
Voltage influence		±2.5% max. of sensing distance at rated voltage in the rated voltage ±10% range
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)		10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)		1,000 m/s2 10 times each in X, Y, and Z directions
Degree of protection		IP67 (IEC 60529) and IP67G *3 (JIS C 0920 Annex 1) Passed OMRON's Oil-resistant Component Evaluation Standards *4 (Cutting oil type: specified in JIS K 2241:2000, Temperature: 35 ｰC max.)
Connection method		Pre-wired Models (Standard cable length: 2 m) and Pre-wired Connector Models (Standard cable length: 300 mm)
Weight (packed state)	Pre-wired Models	Approx. 75 g	Approx. 145 g	Approx. 215 g
	Pre-wired Connector Models	Approx. 40 g	Approx. 90 g	Approx. 155 g
Materials	Case	Nickel-plated brass
	Sensing surface	Polybutylene terephthalate (PBT)
	Clamping nuts	Zinc-plated iron
	Toothed washer	Zinc-plated iron
Accessories		Instruction manual

*1. Use the Sensor within the range in which the setting indicator (green LED) is ON (except D2 Models).
*2. The response frequency is an average value.
Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object, and a set distance of half the sensing distance.
*3. The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance to oil.
*4. The Oil-resistant Component Evaluation Standards are OMRON's own durability evaluation standards.
The Pre-wired Connector Model meets the degree of protection when it is correctly connected with an XS5[]R Oil-resistant Connector.
The degree of protection is not satisfied with the part where there is no XS5FR Oil-resistant Connector connected and cable wires are uncovered.
And as for the Pre-wired Models, the degree of protection is not satisfied with the part where cable wires are uncovered.

Dimensions | Proximity Sensor Cylindrical - E2ER / E2ERZ

Pre-wired Models

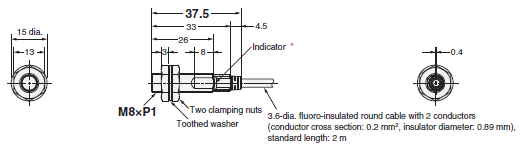

E2ER-X2D[]

* D1 Models: Operation indicator (red), Setting indicator (green),
D2 Models: Operation indicator (red)

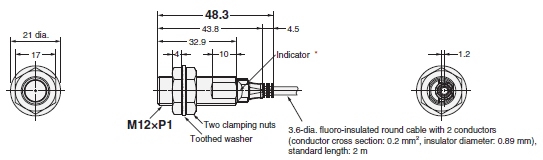

E2ER-X3D[]
E2ERZ-X2D[]

* D1 Models: Operation indicator (red), Setting indicator (green),
D2 Models: Operation indicator (red)

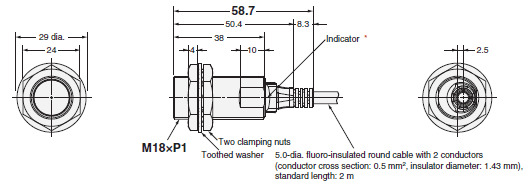

E2ER-X7D[]
E2ERZ-X4D[]

* D1 Models: Operation indicator (red), Setting indicator (green),
D2 Models: Operation indicator (red)

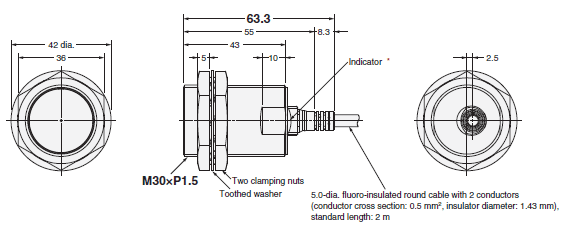

E2ER-X10D[]
E2ERZ-X8D[]

* D1 Models: Operation indicator (red), Setting indicator (green),
D2 Models: Operation indicator (red)

Mounting Hole Dimensions</h4

Angle R of the Bending Wire

Pre-wired Connector Models

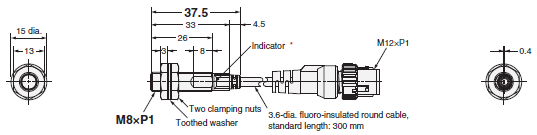

E2ER-X2D[]-M1TGJ

* D1 Models: Operation indicator (red), Setting indicator (green),
D2 Models: Operation indicator (red)

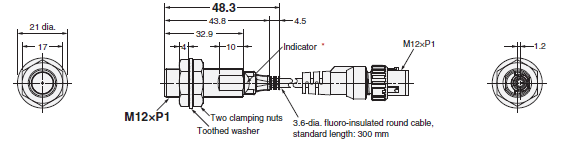

E2ER-X3D[]-M1TGJ
E2ERZ-X2D[]-M1TGJ

* D1 Models: Operation indicator (red), Setting indicator (green),
D2 Models: Operation indicator (red)

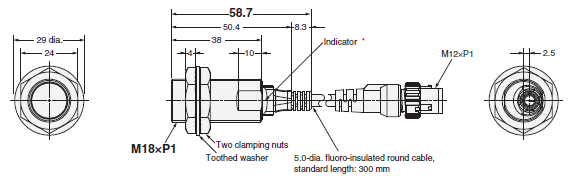

E2ER-X7D[]-M1TGJ
E2ERZ-X4D[]-M1TGJ

* D1 Models: Operation indicator (red), Setting indicator (green),
D2 Models: Operation indicator (red)

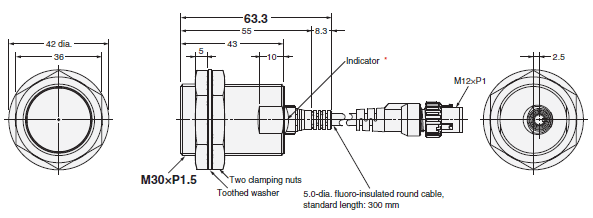

E2ER-X10D[]-M1TGJ
E2ERZ-X8D[]-M1TGJ

* D1 Models: Operation indicator (red), Setting indicator (green),
D2 Models: Operation indicator (red)

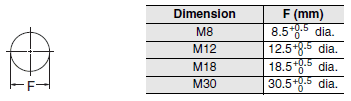

Mounting Hole Dimensions

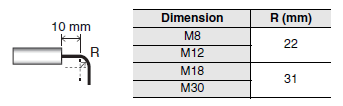

Angle R of the Bending Wire

Features | Proximity Sensor Cylindrical - E2ER / E2ERZ

• Fluororesin cable that withstands cutting oil.
• A sealing method that eliminates gaps at cable joints and the resin filling work together to block ingress of cutting oil.

---

Properties | Proximity Sensor Cylindrical - E2ER / E2ERZ

Proximity Sensor Cylindrical	E2ER / E2ERZ
Model type	DC 2-wire
Sensing distance (mm)	2, 3, 4, 5, 7, 8, 10
Housing size	M8, M12, M18, M30
Housing Material	Stainless steel (SUS303)
Power supply	10 - 30 VDC
Degree of protection	IP67
