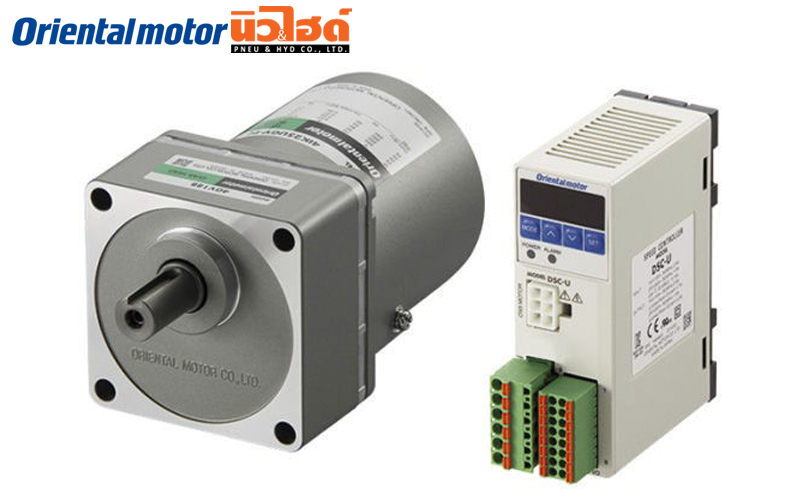

ORIENTAL Electric Motor - DSC series

Electric Motor - DSC series

ดาวน์โหลดไฟล์ PDF

Feature | Electric Motor - DSC series

ผลิตภัณฑ์ใหม่ DSC ซีรีส์ ที่มีประสิทธิภาพสูงระบบควบคุมความเร็วมอเตอร์ใช้งานง่ายด้วยราคาไม่แพงและขนาดกะทัดรัดนอกจากนี้หัวเกียร์ที่มีแรงบิดสูงทำให้มีความแข็งแรงทนทานมากยิ่งขึ้น

---

Specifications | Electric Motor - DSC series

Electric Motor - DSC series
Combination Motor	แรงดันไฟฟ้าของแหล่งจ่ายไฟ [VAC]	แถวบน: ขนาดหน้าแปลน [mm]/แถวล่าง: ขนาดกำลัง [W]
		60	70	80	90	90	90
		6	15	25	40	60	90
Parallel Shaft (Standard Type)	Single-Phase 100	•	•	•	•	•	•
	Single-Phase 220	•	•	•	•	•	•
	Single-Phase 110/115	•	•	•	•	•	•
	Single-Phase 220/230	•	•	•	•	•	•
Round Shaft	Single-Phase 100	•	•	•	•	•	•
	Single-Phase 200	•	•	•	•	•	•
	Single-Phase 110/115	•	•	•	•	•	•
	Single-Phase 220/230	•	•	•	•	•	•
Round Shaft (Electromagnetic brake Type)	Single-Phase 100	•	•	•	•	•	•
	Single-Phase 200	•	•	•	•	•	•
	Single-Phase 110/115	•	•	•	•	•	•
	Single-Phase 220/230	•	•	•	•	•	•

---

Electric Motor		DSC series
		Motor	Speed Controller
Operation Environment	Ambient temperature	Single-phase 100V, single-phase 200V: -10 to 50°C [14 to 122 °F] (non-freezing) Single-phase 110/115V, single-phase 220/230: -10 to 40°C [14 to 104 °F] (non-freezing)	0 to 50 °C [32 to 122°F] (non-freezing)
	Ambient Humidity	85% or less (non-condensing)
	Altitude	Up to 1000 m (3300 ft.) above sea level
	Surrounding atmosphere	No corrosive gas, dust, water pr oil. Cannot be used in radioactive materials, magnetic field, vacuum or other special environment.
	Vibration	Not subject to continuous vibrations or excessive impact In conformance with JIS C 60068-2-6 "Sine-Wave vibration test method" Frequency range: 10 to 55 Hz Pulsating amplitude: 0.15 mm (0.006 in.) Sweep direction: 3 directions (X, Y, Z) Number of sweeps: 20 times
Storage environment	Ambient temperature	-25 to 70 °C [-13 to 158 °F] (non-freezing)
	Ambient Humidity	85% or less (non-condensing)
	Altitude	Up to 3000 m (10000ft.) above sea level
	Surrounding atmosphere	No corrosive gas, dust, water or oil. Cannot be used in radioactive materials, magnetic field, vacuum or other special environment.
Shooing environment	Ambient temperature	-25 to 70 °C [-13 to 158 °F] (non-freezing)
	Ambient Humidity	85% or less (non-condensing)
	Altitude	Up to 3000 m (10000ft.) above sea level
	Surrounding atmosphere	No corrosive gas, dust, water or oil. Cannot be used in radioactive materials, magnetic field, vacuum or other special environment.
Degree of protection		IP20
