HIWIN Crossed Roller Bearing CRBE

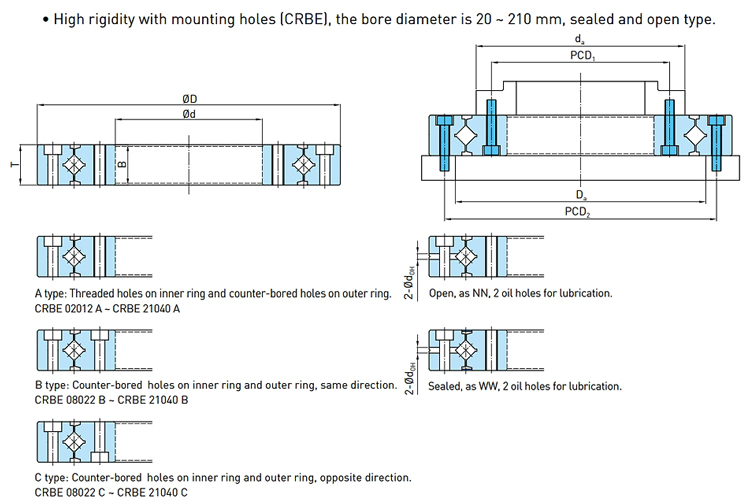

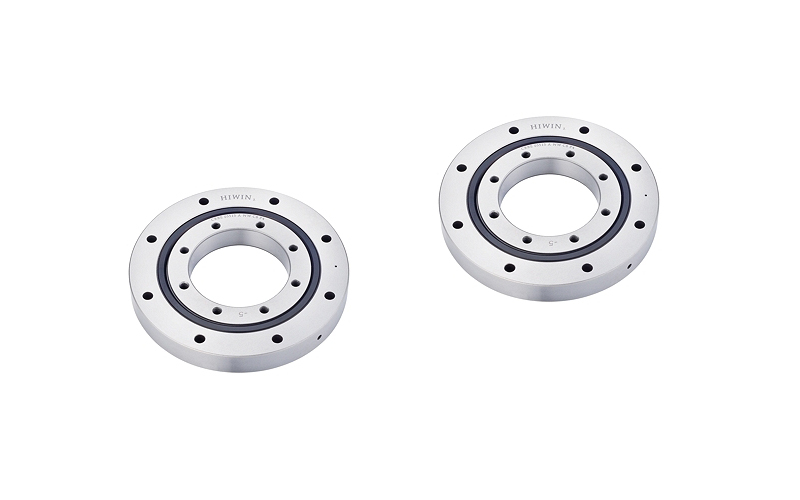

High rigidity with mounting holes. Cosists of an inner ring and an outer ring with mounting holes enable the bearing to be fixed and it is suitable for both inner and outer ring rotation.

HIWIN Crossed Roller Bearing CRBE

---

Feature | HIWIN Crossed Roller Bearing CRBE

• Patented design features high loading capacity
• High rigidity
• Accepts loads from all directions at the same time
• Smooth rotation
• Compact, space saving
• Easy installation and adjustment
• Various bearing types and sizes to accommodate your requirements
• Customized designs available

---

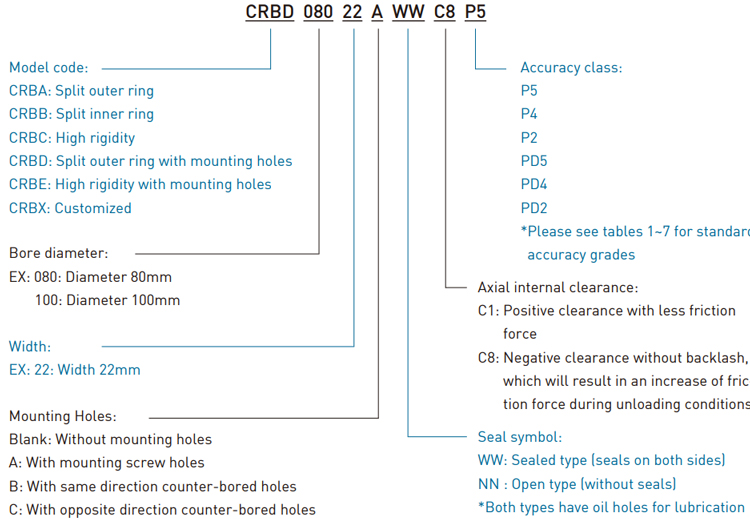

Specifications Code | HIWIN Crossed Roller Bearing CRBE

---

Specifications | HIWIN Crossed Roller Bearing CRBE

Dimensions (mm)					Bearing No.	Dimensions of mounting holes (mm)				Basic load ratings (kN)		Mounting dimensions (mm)
Inner dia. (d)	Outer dia. (D)	Width (B, T)	Chamfer (rmin)	Oil holer (dOH)		Inner rings		Outer rings		Dynamic load, C	Static load, C0	da	Da
						PCD1	Mounting holes	PCD2	Mounting holes
20	70	12	0.6	3	CRBE 02012 A	28	6-M3 through	57	6-ϕ3.4 through ϕ6.5 counter bore depth 3.3	8.26	9.16	35	47
35	95	15	0.6	3	CRBE 03515 A	45	8-M4 through	83	8-ϕ4.5 through ϕ8 counter bore depth 4.4	18.9	23.4	57	73
55	120	15	0.6	3	CRBE 05515 A	65	8-M5 through	105	8-ϕ5.5 through ϕ9.5 counter bore depth 5.4	21.7	30.6	77	92
80	165	22	1	3	CRBE 08022 A	97	10-M5 through	148	10-ϕ5.5 through ϕ9.5 counter bore depth 5.4	40.4	63.6	117	132
					CRBE 08022 B		10-ϕ5.5 through ϕ9.5 counter bore depth 5.4
					CRBE 08022 C
90	210	25	1.5	3	CRBE 09025 A	112	12-M8 through	187	12-ϕ9 through ϕ14 counter bore depth 8.6	46	80.2	139	157
					CRBE 09025 B		12-ϕ9 through ϕ14 counter bore depth 8.6
					CRBE 09025 C
115	240	28	1.5	3	CRBE 11528 A	139	12-M8 through	217	12-ϕ9 through ϕ14 counter bore depth 8.6	73.1	131.9	168	188
					CRBE 11528 B		12-ϕ9 through ϕ14 counter bore depth 8.6
					CRBE 11528 C
160	295	35	2	6	CRBE 16035 A	184	12-M10 through	270	12-ϕ11 through ϕ17.5 counter bore depth 10.8	102	192.3	218	238
					CRBE 16035 B		12-ϕ11 through ϕ17.5 counter bore depth 10.8
					CRBE 16035 C
210	380	40	2.5	6	CRBE 21040 A	240	16-M12 through	350	16ϕ14 through ϕ20 counter bore depth 13	142	286.2	277	299
					CRBE 21040 B		16-ϕ14 through ϕ20 counter bore depth 13
					CRBE 21040 C

1. The basic load ratings are based on ISO76/ISO281.
2. For specific dimensional requirements, please contact HIWIN.
