HIWIN Crossed Roller Bearing CRBC

High rigidity. Consists of an inner and an outer ring, which is suitable for both inner and outer ring rotation.

HIWIN Crossed Roller Bearings CRBC

Feature | HIWIN Crossed Roller Bearings CRBC

• Patented design features high loading capacity
• High rigidity
• Accepts loads from all directions at the same time
• Smooth rotation
• Compact, space saving
• Easy installation and adjustment
• Various bearing types and sizes to accommodate your requirements
• Customized designs available

---

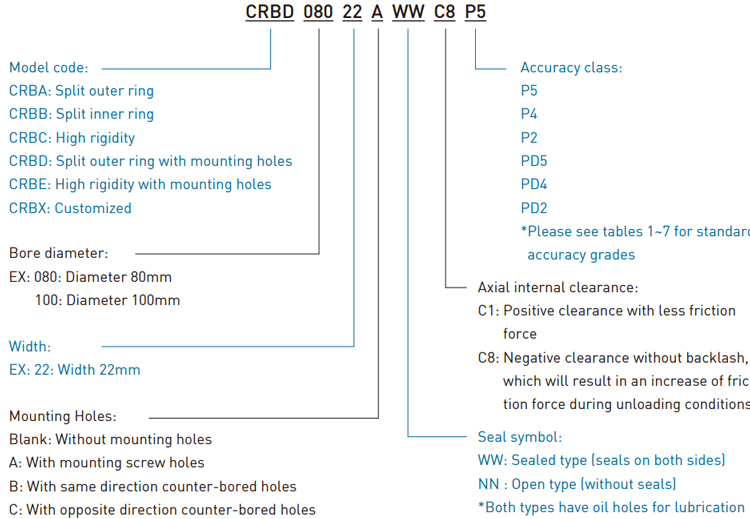

Specifications Code | HIWIN Crossed Roller Bearings CRBC

---

Specifications Code | HIWIN Crossed Roller Bearings CRBC

Dimensions (mm)			Bearing No.	Oil holes, dOH (mm)	Basic load Rating (kN)		Mounting dimensions (mm)
Inner diameter (d)	Outer diameter (D)	Width (B, T)			Dynamic load, C	Static load C0	da	Da	ra (max)
20	36	8	CRBC 02008	1.5	4.1	4	22.9	30.8	0.6
25	41	8	CRBC 02508	1.5	4.5	4.8	27.9	35.8	0.6
30	55	10	CRBC 03010	1.5	8.2	9.2	35	46.8	0.6
35	60	10	CRBC 03510	1.5	8.5	10	40	51.8	0.6
40	65	10	CRBC 04010	1.5	9.3	11.6	45	56.8	0.6
45	70	10	CRBC 04510	1.5	9.6	12.5	50	61.8	0.6
50	80	13	CRBC 05013	2	18.9	23.4	57.2	72	0.6
60	90	13	CRBC 06013	2	20.3	27	67	82	0.6
70	100	13	CRBC 07013	2	21.7	30.6	77	92	0.6
80	110	13	CRBC 08013	2	22.8	34.2	87	102	0.6
80	120	16	CRBC 08016	2.5	30.2	44.8	92	109	0.6
90	130	16	CRBC 09016	2.5	30.8	47.4	104	120	1
90	140	20	CRBC 09020	2.5	39.7	60.2	104	120	1
100	140	16	CRBC 10016	2.5	32.5	52.3	112	129	1
100	150	20	CRBC 10020	2.5	40.4	63.6	117	132	1
110	160	20	CRBC 11020	2.5	42.7	70.2	126	143	1
120	150	16	CRBC 12016	2.5	27.1	50.3	126	143	1
120	170	20	CRBC 12020	2.5	44.9	76.9	136	153	1.5
120	180	25	CRBC 12025	2.5	66.3	109	138	158	1.5
130	190	25	CRBC 13025	2.5	67.8	114.8	148	168	1.5
140	200	25	CRBC 14025	2.5	69.5	120.6	161	178	1.5
150	210	25	CRBC 15025	2.5	73.1	131.9	168	188	1.5
160	220	25	CRBC 16025	2.5	74.5	137.7	181	198	1.5
170	220	20	CRBC 17020	2.5	52.3	103.6	183	203	1.5
180	240	25	CRBC 18025	2.5	79.6	154.8	198	218	1.5
190	240	25	CRBC 19025	2.5	54.5	113.6	203	223	1.5
200	260	25	CRBC20025	2.5	82.3	166.4	218	238	2
400	480	35	CRBC 40035	3	219.4	523.9	426	447	2.5

1. The basic load ratings are based on ISO79/ISO281.
2. For specific dimensional requirements, please contact HIWIN.
3. The outer ring datum plane B is for custom use, specification and product series number are marked on the sureface.
