Hiwin Ironless Motors - LMCE series

The HIWIN LMCE series: LMCE = Height of stator 106.8mm, Peak: 736N - 2208N / Continuous: 184N - 552N

Linear Ironless Motors - LMCE series

The HIWIN LMC coreless U-shaped linear motor has no cogging, an excellent low velocity ripple and excellent dynamic characteristics. With no attraction between forcers and stators and very low-profille structure, the motor can be applied to the installation platform without deformation and has a light load demand for continuous movement curve. For exemple: high-speed, light-load automation equipment, dust-free environment automation equipment, flat panel equipment, optical detection quipment, scanning electron microscope equipment, semiconductor equipment.

ดาวน์โหลดไฟล์ PDF
Ironless Motor - LMCE series Ironless Motor - LMCE series
Hiwin Ironless Motors - LMCE series

Feature | Ironless Motors - LMCE series

  • Three-phase
  • Excellent dynamic characteristics
  • Excellent synchronization and high speed coordination
  • Small inertia, high acceleration
  • Low installation height
  • No cogging
  • No attraction between force
  • Same movement axis can with multiple forcers

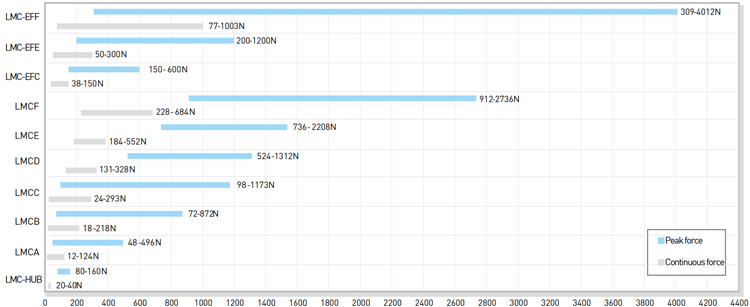

Force Chart | Ironless Motors - LMCE series

Force Chart - LMCE series


Code | Ironless Motors - LMCE series

Ironless Motor - LMCE series


Specifications | Ironless Motors - LMCE series

DetailSymbolUnitLMCE4LMCE6LMCE8LMCEALMCEC
Cnotinuous force Fc N 184 276 368 460 552
Continuous cerrent Lc Arms 3.25
Peak force (1s) Fp N 736 1104 1472 1840 2208
Peak current (1s) Ip Arms 13
Force constant Kf N/Arms 56.6 84.9 113.2 141.5 169.8
Maximum winding temperature Tmax °C 100
Electrical time constant Ke ms 0.5
Resistance (line to line 25°C) R25 Ω 5.6 8.4 11.0 13.8 16.7
Inductance (line to line) L mH 2.9 4.4 5.9 7.3 8.8
Pole pair pitch 2T mm 60
Minimum bending radius of cable Rbend mm 37.5
Back emf constant (line to line) Kv Vrms/(m/s) 35 53 70 88 106
Motor constant (25°C) Km N/✓W 19.1 23.4 27.0 30.2 33.2
Thermal resistance RTH °C/W 0.68 0.45 0.34 0.27 0.23
Thermal switch - - PTC
Maximum DC bus voltage - VDC 330
Mass of forcer Mf kg 1.23 1.84 2.46 3.08 3.70
Unit mass of stator Ms kg/m 20
Length of forcer/dimension n Lf mm 260/7 380/10 500/13 620/16 740/16
Lengtth of stator/dimension N Ls mm 120mm/N=2, 180mm/N=3, 300mm/N=5
  1. Values in this table are motor at 25°C ambient temperature and no forced cooling.
  2. Except diemensions, the electrical specifications are in ±10% of tolerance.
  3. We reserve the right of changes, please follow customer recognition drawings.
