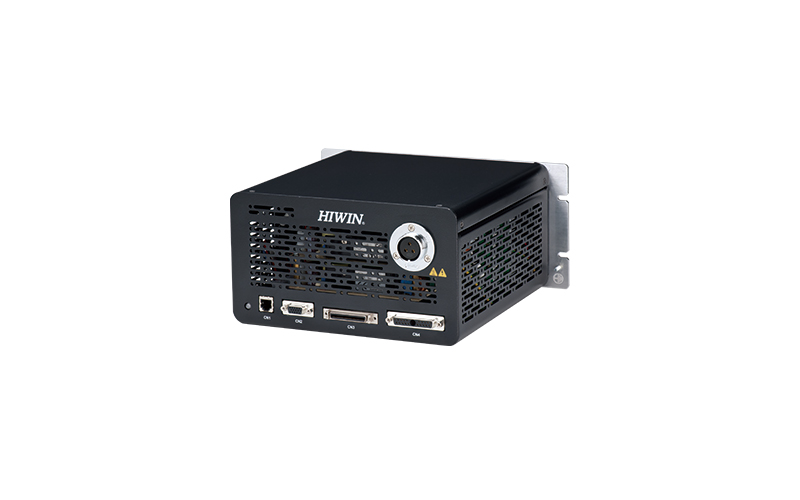

Hiwin Controller and Drive - LMDX Servo Drive

• Supports STEP/DIR、CW/CCW、AqB pulse format (differential interace)
• 2D position closed loop control for X and Y axes
• Equipped with I / O and RS-232 interfaces

Controller and Drive - LMDX Servo Drive

ดาวน์โหลดไฟล์ PDF

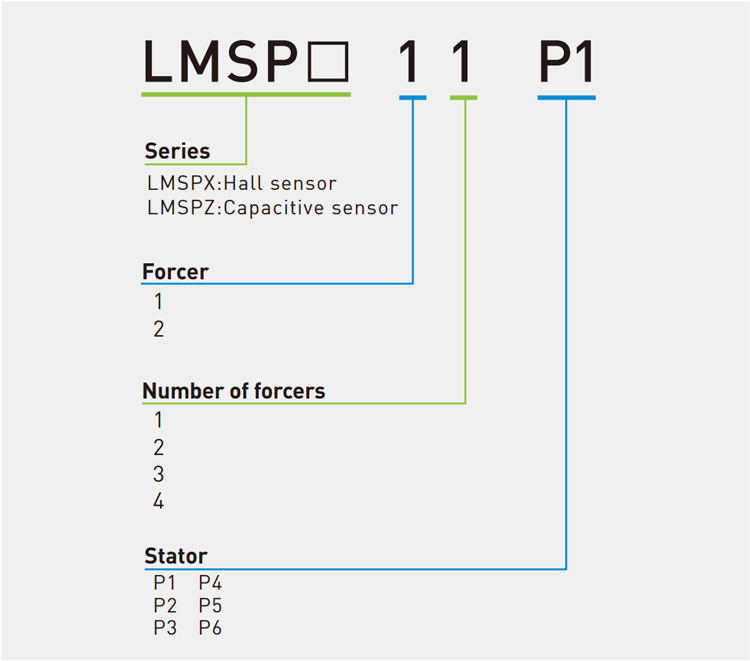

Code | Controller and Drive - LMDX Servo Drive

---

Specifications | Controller and Drive - LMDX Servo Drive

LMDX servo drive		Unit	Description
Power supply	Voltage	VAC	95-264
	Frequency output	Hz	50/60
Output current		A	3 [max.]
Interface	Parameter setting: RS-232	-	115200 Baud, 8 data bits, 2 stop bits, odd parity
	Digital I/O signal	-	8 inputs : including HOME and RESET 8 outputs : inclulding IN-POSITION, SCRDY, ALARM, HO-MED and HOMING
	Pulse command	Pulse	STEP/DIR, CW/CCW ,AqB
Resolution		µm/pulse	1 [Set by parameter]
Weight		kg	5.4
Max. operation temperature		°C	40
Storage temperature		°C	0~80
Humidity		%	0~95
