Hiwin Controller and Drive - HIMC/HIOM

HIMC : Multi-axis motion controller for demanding industrial applications.
HIOM : Extension I/O module for HIMC.

Controller and Drive - HIMC/HIOM

ดาวน์โหลดไฟล์ PDF

Feature | Controller and Drive - HIMC/HIOM

• 16 fully synchronized axes
• Up to 250us controller cycle time
• Multi-tasking HMPL programming Language with maximum 64 user tasks
• Programming library for C/C++/C#/LabVIEW/Python
• Support all mega-ulink 2.0 compatible drive and I/O modules
• CE/UL cartified.

---

Code | Controller and Drive - HIMC/HIOM

---

Specifications | Controller and Drive - HIMC/HIOM

Item	Specifications
Main power input	DC 24V, 0.6A
Host Communication	- 2x Ethernet ports: 10/100/1000 Base-T Ethernet TCP/IP - Modbus-TCP and ASCII command
Maximum slave	Up to 16 salves (HIWIN servo drive and I/O module)
Cycle time	250us
Motion control	- Single axis motion: point-to-point, JOG motion - Gruop unterolation: multi-axis linear, circular interpolation
Accuracy compensation	1D/2D error mapping
User script programming	HMPL (HIWIN Motion Programming Language) - Up to 64 tasks running in parallel - Up to 10MB memory size of user program
High level programming	Library for C/C++/C#/Lab View/Python
I/O	Built-in digital 8 input and 8 output ports

---

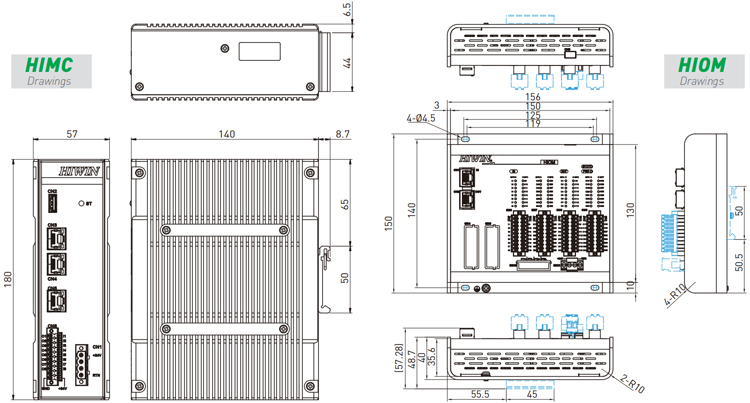

Dimension | Controller and Drive - HIMC/HIOM
