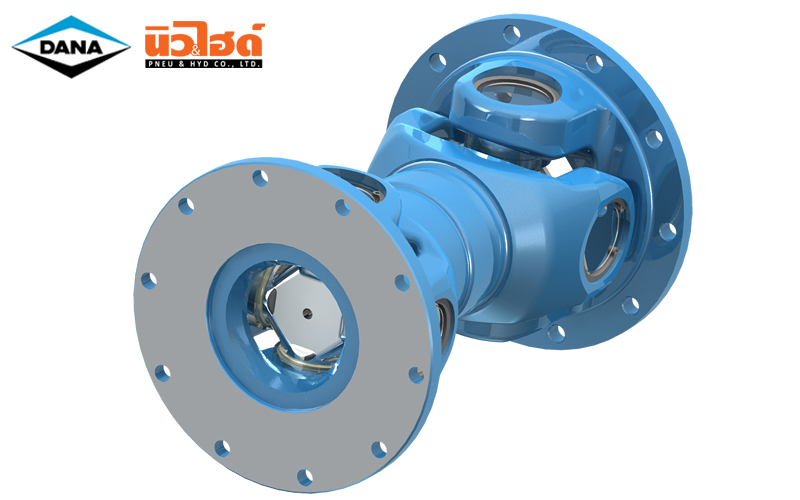

DANA Closed bearing eye - series 587/190/390

• Closed bearing eyes
• Compact design
• Low maintenance
• Splines coated with lubricating varnish (587.50 – plastic-coated)
• Operating angle up to 24°

DANA Closed bearing eye - 587/190/390

ดาวน์โหลดไฟล์ PDF

Feature | DANA Closed bearing eye 587/190/390

• Torque Range TCS : From 23 to 57kNm
• Flange diameter : From 225mm to 285mm
• Field of application
  • Railway vehicles
  • Rolling mill plants
  • Marine drives
  • General machinery construction plants

---

Specifications | DANA Closed bearing eye 587/190/390

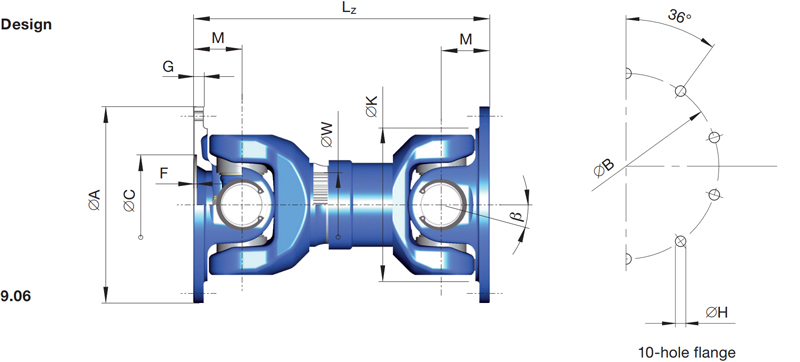

Series 587

9.06 : driveshaft with length compensation, super short design

Shaft size		587.50	190.55	390.60	190.65	390.70
TCS	kNm	43	33	60	68	130
TDW	kNm	13	11	27	25	53
LC	-	1,8	7	56,7	161,5	510
β	<) °γ	5	5	5	5	5
A	mm	275	305	348	360	405
K	mm	215	250	285	315	350
B ± 0,1 mm	mm	248	275	314	328	370
C H7	mm	140	140	175	175	220
F1)	mm	4,5	5,5	6	6	6,5
G	mm	15	15	18	18	22
H + 0,2 mm	mm	14,1	16,1	18,1	18,1	20,1
I2)	-	10	10	10	10	10
M	mm	68	80	90	100	108
W DIN 5482/5480	mm	90 x 2,5	100 x 94	115 x 2,5	130 x 3	150 x 3

• T_CS = Functional limit torque* Yield toque 30% over T_CS
• T_DW = Reversing fatigue torque*
• L_C = Bearing capacity factor*
• * see specifications of driveshafts.
• β = Maximum deflection angle per joint
• 1 Effective spigot depth
• 2 Number of flange holes

---

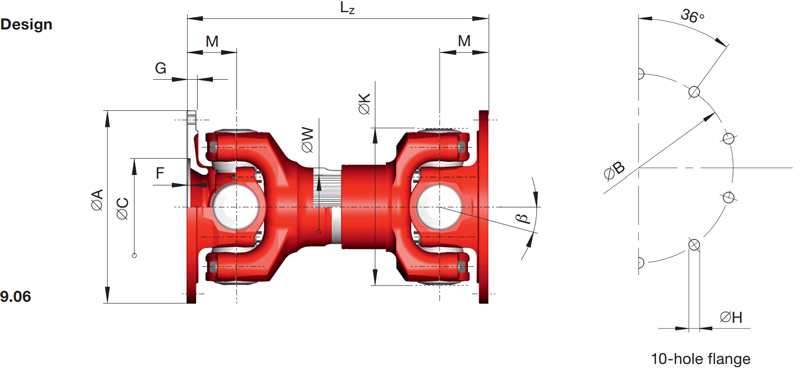

Series 190/390

Design 9.06
Shaft size		587.50	190.55	390.60	190.65	390.70
Lz	mm	415	495	545	600	688
La	mm	40	40	80	40	80
G	kg	60	98	131	169	252
Jm	kgm2	0,33	0,624	1,250	2,286	3,455

• L_Z = Shortest compressed length
• L_a = Length compensation
• L_z + L_a = Maximum operating length
• G = Weight of shaft
• Jm = Moment of inertia
