OMRON Solid-state Relay - G3NB

English
ไทย

Solid-state Relay - G3NB

Download PDF
Solid-state Relay - G3NB
OMRON Solid-state Relay - G3NB
Model Numbers
Specifications
Dimensions
Features

Model Numbers | Solid-state Relay - G3NB

IsolationZero cross functionIndicatorApplicable output load
*2
Rated input voltageModel
Photocoupler Yes Yes 5 A at 24 to 220 VAC (at 40°C) 5 to
24 VDC
G3NB-205B-1 5 to 24 VDC
10 A at 24 to 220 VAC (at 40°C) G3NB-210B-1 5 to 24 VDC
20 A at 24 to 220 VAC (at 40°C) G3NB-220B-1 5 to 24 VDC
25 A at 24 to 220 VAC (at 40°C) G3NB-225B-1 5 to 24 VDC
40 A at 24 to 220 VAC (at 40°C) G3NB-240B-1 5 to 24 VDC
75 A at 24 to 220 VAC (at 40°C) G3NB-275B-1 5 to 24 VDC
90 A at 24 to 220 VAC (at 40°C) G3NB-290B-1 5 to 24 VDC

*1. All models are certified by UL, CSA and TÜV.
*2. The applicable output load depends on the ambient temperature. Refer to "Load Current vs. Ambient Temperature"
in Engineering Data.

Accessories (Order Separately)

One-touch Mounting Plates

Model
R99-12 FOR G3NA

Heat Sinks

Slim Models Enabling DIN-track Mounting

ModelApplicable SSR
Y92B-N50 G3NB-205B-1
G3NB-210B-1
Y92B-N100 G3NB-220B-1
Y92B-N150 G3NB-225B-1
G3NB-240B-1
Y92B-P250NF G3NB-275B-1
G3NB-290B-1

Specifications | Solid-state Relay - G3NB

Ratings

Input (at an Ambient Temperature of 25°C)

Rated voltageOperating voltageRated input currentVoltage level
Operation voltageRelease voltage
5 to 24 VDC 4 to 32 VDC 7 mA max. 4 VDC max. 1 VDC min.

Output

ModelApplicable load
Rated load
voltage
Load voltage rangeLoad current *1Inrush current
With heat sink
*2
Without heat
sink
G3NB-205B-1 24 to 220 VAC 19 to 286 VAC 0.1 to 6 A (at 25°C)
5 A (at 40°C)
0.1 to 3 A (at 40°C) 60 A (60 Hz, 1 cycle)
G3NB-210B-1 0.1 to 15 A (at 25°C)
10 A (at 40°C)
0.1 to 4 A (at 40°C) 150 A (60 Hz, 1 cycle)
G3NB-220B-1 0.1 to 25 A (at 25°C)
20 A (at 40°C)
220 A (60 Hz, 1 cycle)
G3NB-225B-1 0.1 to 25 A (at 25°C)
25 A (at 40°C)
220 A (60 Hz, 1 cycle)
G3NB-240B-1 0.1 to 40 A (at 25°C)
40 A (at 40°C)
0.1 to 6 A (at 40°C) 410 A (60 Hz, 1 cycle)
G3NB-275B-1 1 to 90 A (at 25°C)
75 A (at 40°C)
1 to 7 A (at 40°C) 800 A (60 Hz, 1 cycle)
G3NB-290B-1 1 to 110 A (at 25°C)
90 A (at 40°C)
900 A (60 Hz, 1 cycle)

*1. The load current varies depending on the ambient temperature. Refer to Load Current vs. Ambient Temperature under
Engineering Data.
*2. When an OMRON Heat Sink (refer to Options) or a heat sink of the specified size is used.
The values at 25°C are the maximum load currents.

Characteristics

ItemG3NB-
205B-1210B-1220B-1225B-1240B-1275B-1290B-1
Operate time 1/2 of load power source cycle + 1 ms max.
Release time 1/2 of load power source cycle + 1 ms max.
Output ON voltage drop 1.6 V (RMS) max.
Leakage 5 mA max. (at 100 VAC), 10 mA max. (at 200 VAC)
Insulation resistance 100 MΩ min. (at 500 VDC)
Dielectric strength 2,500 VAC, 50/60 Hz for 1 min
Vibration resistance Destruction: 10 to 55 to 10 Hz, 0.35-mm single amplitude (0.7-mm double amplitude)
Shock resistance Destruction: 1,000 m/s2
Ambient temperature Operating: -30 to 80°C (with no icing or condensation)
Storage: -30 to 100°C (with no icing or condensation)
Ambient humidity Operating: 45% to 85%
Weight Approx. 60 g Approx. 80 g Approx. 110 g

Dimensions | Solid-state Relay - G3NB

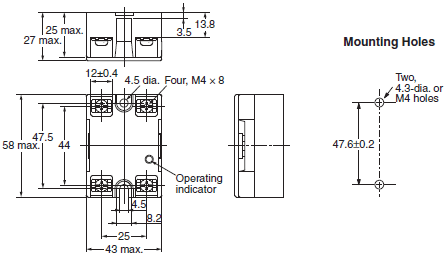

Relays

G3NB-205B-1
G3NB-210B-1
G3NB-220B-1
G3NB-225B-1

G3NB Dimensions 2

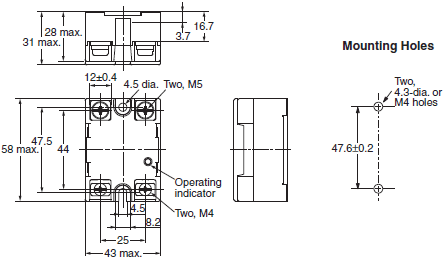

G3NB-240B-1

G3NB Dimensions 3

G3NB-275B-1
G3NB-290B-1

G3NB Dimensions 4

Options (Order Separately)

One-touch Mounting Plate

The One-touch Mounting Plate is used to mount the G3NB to a DIN Track.

R99-12 FOR G3NA

G3NB Dimensions 7

Heat Sinks

Y92B-N50 Heat Sink (for the G3NB-205B-1, G3NB-210B-1)

For surface mounting, a 30% derating of the load current is required (from the Load Current vs. Ambient Temperature graphs).
For mounting method, refer to "Precautions for Correct Use".

G3NB Dimensions 9

Y92B-N100 Heat Sink (for the G3NB-220B-1)

For surface mounting, a 30% derating of the load current is required (from the Load Current vs. Ambient Temperature graphs).
For mounting method, refer to "Precautions for Correct Use".

G3NB Dimensions 10

Y92B-N150 Heat Sink (for the G3NB-225B-1, G3NB-240B-1)

For surface mounting, a 30% derating of the load current is required (from the Load Current vs. Ambient Temperature graphs).
For mounting method, refer to "Precautions for Correct Use".

G3NB Dimensions 11

Y92B-P250NF Heat Sink (for the G3NB-275B-1, G3NB-290B-1)

For mounting method, refer to "Precautions for Correct Use".

G3NB Dimensions 12

Features | Solid-state Relay - G3NB

  • Zero cross function enables less noise operation.
  • Built-in varistor effectively absorbs external surges.
  • Operation indicator enables monitoring operation.
  • Protective cover for greater safety.
  • Certified by UL, CSA and TÜV.

Properties | Solid-state Relay - G3NB

Solid-state RelayG3NB
Rated voltage 4-32 VDC
Operating voltage 19-286 VAC
Load current With heat sink 6 to 110 A (at 25°C)
without heat sink 3 to 7 A (at 40°C)
Load current 5 to 20 A
Inrush current resistance 60 to 900 A
Weight (g) 37 / 80 / 110
Size (W x L x H) mm 43 x 58 x 27

Solid-state Relay - G3NB

ดาวน์โหลดไฟล์ PDF
Solid-state Relay - G3NB
OMRON Solid-state Relay - G3NB

คุณสมบัติ | Solid-state Relay - G3NB

  • ฟังก์ชัน Zero cross ช่วยลดสัญญาณรบกวนในการทำงาน
  • มีฝาครอบในการป้องกันภายใน
  • ได้รับการรับรองโดย UL, CSA และ TÜV.

ข้อมูลจำเพาะ | Solid-state Relay - G3NB

Solid-state RelayG3NB
พิกัดแรงดันไฟฟ้าอินพุต 4-32 VDC
พิกัดแรงดันไฟฟ้าเอาต์พุต 19-286 VAC
พิกัดกระแสไฟฟ้าเอาต์พุต มีฮีตซิงค์ 6-110 A ที่ 25 องศา
ไม่มีฮีตซิงค์ 3-7 A ที่ 40 องศา
กระแสเอาต์พุต 5-20 A
กระแสกระชาก 60-900 A
น้ำหนัก ประมาณ 37 / 80 / 110 กรัม
ขนาด (W x L x H) mm 43 x 58 x 27
