Motion Drive Inverter - 3G3MX2-V1

Download PDF
Motion Drive Inverter - 3G3MX2-V1
OMRON Motion Drive Inverter - 3G3MX2-V1
Model Numbers
Specifications
Dimensions
Features

Model Numbers | Motion Drive Inverter - 3G3MX2-V1

Interpreting Model Numbers

3G3MX2-V1 Lineup 1

3G3MX2 Inverter Models

Note: Inverters with model numbers ending in "-V1" are designed to be used in areas other than China and Europe.
Refer to the above "Interpreting Model Numbers" for the model numbers for China and Europe.

Rated voltageEnclosure ratingsMax. applicable motor capacityModel
CT: Heavy loadVT: Light load
3-phase 200 VAC IP20 0.1 kW 0.2 kW 3G3MX2-A2001-V1
0.2 kW 0.4 kW 3G3MX2-A2002-V1
0.4 kW 0.75 kW 3G3MX2-A2004-V1
0.75 kW 1.1 kW 3G3MX2-A2007-V1
1.5 kW 2.2 kW 3G3MX2-A2015-V1
2.2 kW 3.0 kW 3G3MX2-A2022-V1
3.7 kW 5.5 kW 3G3MX2-A2037-V1
5.5 kW 7.5 kW 3G3MX2-A2055-V1
7.5 kW 11 kW 3G3MX2-A2075-V1
11 kW 15 kW 3G3MX2-A2110-V1
15 kW 18.5 kW 3G3MX2-A2150-V1
3-phase 400 VAC IP20 0.4 kW 0.75 kW 3G3MX2-A4004-V1
0.75 kW 1.5 kW 3G3MX2-A4007-V1
1.5 kW 2.2 kW 3G3MX2-A4015-V1
2.2 kW 3.0 kW 3G3MX2-A4022-V1
3.0 kW 4.0 kW 3G3MX2-A4030-V1
4.0 kW 5.5 kW 3G3MX2-A4040-V1
5.5 kW 7.5 kW 3G3MX2-A4055-V1
7.5 kW 11 kW 3G3MX2-A4075-V1
11 kW 15 kW 3G3MX2-A4110-V1
15 kW 18.5 kW 3G3MX2-A4150-V1
1-phase 200 VAC IP20 0.1 kW 0.2 kW 3G3MX2-AB001-V1
0.2 kW 0.4 kW 3G3MX2-AB002-V1
0.4 kW 0.55 kW 3G3MX2-AB004-V1
0.75 kW 1.1 kW 3G3MX2-AB007-V1
1.5 kW 2.2 kW 3G3MX2-AB015-V1
2.2 kW 3.0 kW 3G3MX2-AB022-V1

Communication Unit

NameModel
EtherCAT Communication Unit 3G3AX-MX2-ECT
CompoNet Communication Unit 3G3AX-MX2-CRT-E
DeviceNet Communication Unit 3G3AX-MX2-DRT-E

Related Options

NameSpecificationsModel
Regenerative
Braking Units
3-phase 200 VAC General purpose with Braking resistor 3G3AX-RBU21
High Regeneration purpose with Braking resistor 3G3AX-RBU22
3-phase 400 VAC General purpose with Braking resistor 3G3AX-RBU41
Braking Resistor Compact type Resistor 120 W, 180 Ω 3G3AX-RBA1201
Resistor 120 W, 100 Ω 3G3AX-RBA1202
Resistor 120 W, 5 Ω 3G3AX-RBA1203
Resistor 120 W, 35 Ω 3G3AX-RBA1204
Standard type Resistor 200 W, 180 Ω 3G3AX-RBB2001
Resistor 200 W, 100 Ω 3G3AX-RBB2002
Resistor 300 W, 50 Ω 3G3AX-RBB3001
Resistor 400 W, 35 Ω 3G3AX-RBB4001
Medium capacity type Resistor 400 W, 50 Ω 3G3AX-RBC4001
Resistor 600 W, 35 Ω 3G3AX-RBC6001
Resistor 1200 W, 17 Ω 3G3AX-RBC12001

Regenerative Braking Unit and Braking Resistor Combination

InverterUsage conditionsRegenerative braking unitBraking resistorConnection
configuration
Restrictions
VoltageMax. applicable motor capacity
(kW)
Model%ED
*1
(%)
Ap-
proxi-
mate
braking
torque
(% *2)
ModelNum-
ber
of
units
ModelNumber of unitsAllowable continuous braking time
(s)
Min. connectable resistance
(Ω)
200-V
Class
0.1 3G3MX2-
A2001-V1
3G3MX2-
AB001-V1
3.0% 220% Built-in
Inverter
  3G3AX-RBA1201 1 1 20 100
10.0% 220%   3G3AX-RBB2001 1 1 30 100
0.2 3G3MX2-
A2002-V1
3G3MX2-
AB002-V1
3.0% 220% Built-in
Inverter
  3G3AX-RBA1201 1 1 20 100
10.0% 220%   3G3AX-RBB2001 1 1 30 100
0.4 3G3MX2-
A2004-V1
3G3MX2-
AB004-V1
3.0% 220% Built-in
Inverter
  3G3AX-RBA1201 1 1 20 100
10.0% 220%   3G3AX-RBB2001 1 1 30 100
0.75 3G3MX2-
A2007-V1
3G3MX2-
AB007-V1
3.0% 120% Built-in
Inverter
  3G3AX-RBA1201 1 1 20 50
10.0% 120%   3G3AX-RBB2001 1 1 30 50
1.5 3G3MX2-
A2015-V1
3G3MX2-
AB015-V1
2.5% 110% Built-in
Inverter
  3G3AX-RBA1202 1 1 12 50
10.0% 215%   3G3AX-RBC4001 1 1 10 50
2.2 3G3MX2-
A2022-V1
3G3MX2-
AB022-V1
3.0% 150% Built-in
Inverter
  3G3AX-RBB3001 1 1 30 35
10.0% 150%   3G3AX-RBC4001 1 1 10 35
3.7 3G3MX2-
A2037-V1
3.0% 125% Built-in
Inverter
  3G3AX-RBB4001 1 1 20 35
10.0% 125%   3G3AX-RBC6001 1 1 10 35
5.5 3G3MX2-
A2055-V1
3.0% 120% Built-in
Inverter
  3G3AX-RBB3001 2 2 30 20
10.0% 120%   3G3AX-RBC4001 2 2 10 20
7.5 3G3MX2-
A2075-V1
3.0% 125% Built-in
Inverter
  3G3AX-RBB4001 2 2 20 17
10.0% 125%   3G3AX-RBC6001 2 2 10 17
11 3G3MX2-
A2110-V1
3.0% 90% Built-in
Inverter
  3G3AX-RBC12001 1 1 10 17
10.0% 90%   3G3AX-RBC12001 1 1 10 17
10.0% 125% 3G3AX-
RBU23
*3
1 3G3AX-RBC6001 3 14 10 4
15 3G3MX2-
A2150-V1
3.0% 110% Built-in
Inverter
  3G3AX-RBB3001 5 7 30 10
10.0% 110%   3G3AX-RBC4001 5 7 10 10
400-V
Class
0.4 3G3MX2-
A4004-V1
3.0% 220% Built-in
Inverter
  3G3AX-RBA1201 2 3 20 180
10.0% 220%   3G3AX-RBB2001 2 3 30 180
0.75 3G3MX2-
A4007-V1
3.0% 220% Built-in
Inverter
  3G3AX-RBA1201 2 3 20 180
10.0% 220%   3G3AX-RBB2001 2 3 30 180
1.5 3G3MX2-
A4015-V1
3.0% 120% Built-in
Inverter
  3G3AX-RBA1201 2 3 20 180
10.0% 120%   3G3AX-RBB2001 2 3 30 180
2.2 3G3MX2-
A4022-V1
2.5% 150% Built-in
Inverter
  3G3AX-RBA1202 2 3 12 100
10.0% 220%   3G3AX-RBC4001 2 3 10 100
3.0 3G3MX2-
A4030-V1
2.5% 110% Built-in
Inverter
  3G3AX-RBA1202 2 3 12 100
10.0% 215%   3G3AX-RBC4001 2 3 10 100
4.0 3G3MX2-
A4040-V1
3.0% 165% Built-in
Inverter
  3G3AX-RBB3001 2 3 30 100
10.0% 165%   3G3AX-RBC4001 2 3 10 100
5.5 3G3MX2-
A4055-V1
3.0% 120% Built-in
Inverter
  3G3AX-RBB3001 2 3 30 70
10.0% 120%   3G3AX-RBC4001 2 3 10 70
7.5 3G3MX2-
A4075-V1
3.0% 125% Built-in
Inverter
  3G3AX-RBB4001 2 3 20 70
10.0% 125%   3G3AX-RBC6001 2 3 10 70
11 3G3MX2-
A4110-V1
3.0% 85% Built-in
Inverter
  3G3AX-RBB4001 2 3 20 70
10.0% 85%   3G3AX-RBC6001 2 3 10 70
10.0% 120% 3G3AX-
RBU41
*3
1 3G3AX-RBC4001 4 15 10 34
15 3G3MX2-
A4150-V1
3.0% 125% Built-in
Inverter
  3G3AX-RBB4001 4 5 20 35
10.0% 125%   3G3AX-RBC6001 4 5 10 35

*1 %ED shows the ratio that can be used for braking (deceleration time) among operating time of one task period.
*2 Approximate breaking torque is shown in % of rating torque of the motor (100%).
*3 Please remove the built-in resistor.

NameSpecifications of InverterModel
Voltage classCT: Heavy loadVT: Light load

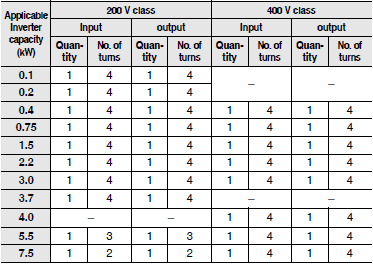

Radio Noise Filter 3-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-ZCL2
0.2 kW 0.4 kW
0.4 kW 0.75 kW
0.75 kW 1.1 kW
1.5 kW 2.2 kW
2.2 kW 3.0 kW
3.7 kW 5.5 kW 3G3AX-ZCL1 (3G3AX-ZCL2)
5.5 kW 7.5 kW
7.5 kW 11 kW 3G3AX-ZCL1
11 kW 15 kW
15 kW 18.5 kW
1-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-ZCL2
0.2 kW 0.4 kW
0.4 kW 0.55 kW
0.75 kW 1.1 kW
1.5 kW 2.2 kW
2.2 kW 3.0 kW
3-phase 400 VAC 0.4 kW 0.75 kW 3G3AX-ZCL2 (3G3AX-ZCL1)
0.75 kW 1.5 kW
1.5 kW 2.2 kW
2.2 kW 3.0 kW
3.0 kW 4.0 kW
4.0 kW 5.5 kW
5.5 kW 7.5 kW
7.5 kW 11 kW 3G3AX-ZCL1
11 kW 15 kW
15 kW 18.5 kW
Input Noise Filter 3-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-NFI21
0.2 kW 0.4 kW
0.4 kW 0.75 kW
0.75 kW 1.1 kW 3G3AX-NFI22
1.5 kW 2.2 kW 3G3AX-NFI23
2.2 kW 3.0 kW
3.7 kW 5.5 kW 3G3AX-NFI24
5.5 kW 7.5 kW 3G3AX-NFI25
7.5 kW 11 kW 3G3AX-NFI26
11 kW 15 kW 3G3AX-NFI27
15 kW 18.5 kW 3G3AX-NFI28
1-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-NFI21
0.2 kW 0.4 kW
0.4 kW 0.55 kW 3G3AX-NFI22
0.75 kW 1.1 kW 3G3AX-NFI23
1.5 kW 2.2 kW 3G3AX-NFI23 *
2.2 kW 3.0 kW 3G3AX-NFI24
3-phase 400 VAC 0.4 kW 0.75 kW 3G3AX-NFI41
0.75 kW 1.5 kW
1.5 kW 2.2 kW
2.2 kW 3.0 kW 3G3AX-NFI42
3.0 kW 4.0 kW
4.0 kW 5.5 kW 3G3AX-NFI43
5.5 kW 7.5 kW
7.5 kW 11 kW 3G3AX-NFI44
11 kW 15 kW 3G3AX-NFI45
15 kW 18.5 kW 3G3AX-NFI46
Output Noise Filter 3-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-NFO01
0.2 kW 0.4 kW
0.4 kW 0.75 kW
0.75 kW 1.1 kW 3G3AX-NFO02
1.5 kW 2.2 kW
2.2 kW 3.0 kW 3G3AX-NFO03
3.7 kW 5.5 kW
5.5 kW 7.5 kW 3G3AX-NFO04
7.5 kW 11 kW
11 kW 15 kW 3G3AX-NFO05
1-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-NFO01
0.2 kW 0.4 kW
0.4 kW 0.55 kW 3G3AX-NFO02
0.75 kW 1.1 kW
1.5 kW 2.2 kW 3G3AX-NFO03
2.2 kW 3.0 kW
3-phase 400 VAC 0.4 kW 0.75 kW 3G3AX-NFO01
0.75 kW 1.5 kW
1.5 kW 2.2 kW 3G3AX-NFO02
2.2 kW 3.0 kW
3.0 kW 4.0 kW
4.0 kW 5.5 kW 3G3AX-NFO03
5.5 kW 7.5 kW
7.5 kW 11 kW
11 kW 15 kW 3G3AX-NFO04
15 kW 18.5 kW
DC Reactor 3-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-DL2002
0.2 kW 0.4 kW 3G3AX-DL2004
0.4 kW 0.75 kW 3G3AX-DL2007
0.75 kW 1.1 kW 3G3AX-DL2015
1.5 kW 2.2 kW 3G3AX-DL2022
2.2 kW 3.0 kW 3G3AX-DL2037
3.7 kW 5.5 kW 3G3AX-DL2055
5.5 kW 7.5 kW 3G3AX-DL2075
7.5 kW 11 kW 3G3AX-DL2110
11 kW 15 kW 3G3AX-DL2150
15 kW 18.5 kW 3G3AX-DL2220
1-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-DL2002
0.2 kW 0.4 kW 3G3AX-DL2004
0.4 kW 0.55 kW 3G3AX-DL2007
0.75 kW 1.1 kW 3G3AX-DL2015
1.5 kW 2.2 kW 3G3AX-DL2022
2.2 kW 3.0 kW 3G3AX-DL2037
3-phase 400 VAC 0.4 kW 0.75 kW 3G3AX-DL4007
0.75 kW 1.5 kW 3G3AX-DL4015 *
1.5 kW 2.2 kW 3G3AX-DL4022
2.2 kW 3.0 kW 3G3AX-DL4037
3.0 kW 4.0 kW
4.0 kW 5.5 kW 3G3AX-DL4055
5.5 kW 7.5 kW 3G3AX-DL4075 *
7.5 kW 11 kW 3G3AX-DL4110 *
11 kW 15 kW 3G3AX-DL4150
15 kW 18.5 kW 3G3AX-DL4220
AC Reactor 3-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-AL2025
0.2 kW 0.4 kW
0.4 kW 0.75 kW
0.75 kW 1.1 kW
1.5 kW 2.2 kW 3G3AX-AL2055
2.2 kW 3.0 kW
3.7 kW 5.5 kW 3G3AX-AL2110
5.5 kW 7.5 kW 3G3AX-AL2110 *
7.5 kW 11 kW 3G3AX-AL2220
11 kW 15 kW 3G3AX-AL2220 *
15 kW 18.5 kW 3G3AX-AL2330
1-phase 200 VAC 0.1 kW 0.2 kW 3G3AX-AL2025
0.2 kW 0.4 kW
0.4 kW 0.55 kW
0.75 kW 1.1 kW
1.5 kW 2.2 kW 3G3AX-AL2055 *
2.2 kW 3.0 kW 3G3AX-AL2110
3-phase 400 VAC 0.4 kW 0.75 kW 3G3AX-AL4025
0.75 kW 1.5 kW
1.5 kW 2.2 kW 3G3AX-AL4055
2.2 kW 3.0 kW
3.0 kW 4.0 kW
4.0 kW 5.5 kW 3G3AX-AL4110
5.5 kW 7.5 kW 3G3AX-AL4110 *
7.5 kW 11 kW 3G3AX-AL4220
11 kW 15 kW 3G3AX-AL4220 *
15 kW 18.5 kW 3G3AX-AL4330

* Only the CT rating is supported.
Note: When using the Inverter for light load rating, select the model with one size larger capacity (rated current).

NameCable length (m)Model
Digital Operator - 3G3AX-OP01
Connection cable 1 m 3G3AX-OPCN1
3 m 3G3AX-OPCN3

Recommended EtherCAT Communications Cables

Use Straight STP (shielded twisted-pair) cable of category 5 or higher with double shielding (braiding and aluminum foil tape) for EtherCAT.

Cable with Connectors

ItemAppearanceRecommended
manufacturer
Cable
length
(m) *1
Model
Cable with Connectors on Both Ends
(RJ45/RJ45)
Standard RJ45 plugs type *1
Wire Gauge and Number of Pairs:
AWG26, 4-pair cable
Cable Sheath material: LSZH *2
Cable color: Yellow *3
3164_lu_8_1 OMRON 0.3 XS6W-6LSZH8SS30CM-Y
0.5 XS6W-6LSZH8SS50CM-Y
1 XS6W-6LSZH8SS100CM-Y
2 XS6W-6LSZH8SS200CM-Y
3 XS6W-6LSZH8SS300CM-Y
5 XS6W-6LSZH8SS500CM-Y
Cable with Connectors on Both Ends
(RJ45/RJ45)
Rugged RJ45 plugs type *1
Wire Gauge and Number of Pairs:
AWG22, 2-pair cable
Cable color: Light blue
3164_lu_8_2 OMRON 0.3 XS5W-T421-AMD-K
0.5 XS5W-T421-BMD-K
1 XS5W-T421-CMD-K
2 XS5W-T421-DMD-K
5 XS5W-T421-GMD-K
10 XS5W-T421-JMD-K
Cable with Connectors on Both Ends
(M12 Straight/M12 Straight)
Shield Strengthening Connector cable *4
M12/Smartclick Connectors
Wire Gauge and Number of Pairs:
AWG22, 2-pair cable
Cable color: Black
3164_lu_8_3 OMRON 0.5 XS5W-T421-BM2-SS
1 XS5W-T421-CM2-SS
2 XS5W-T421-DM2-SS
3 XS5W-T421-EM2-SS
5 XS5W-T421-GM2-SS
10 XS5W-T421-JM2-SS
Cable with Connectors on Both Ends
(M12 Straight/RJ45)
Shield Strengthening Connector cable *4
M12/Smartclick Connectors
Rugged RJ45 plugs type
Wire Gauge and Number of Pairs:
AWG22, 2-pair cable
Cable color: Black
3164_lu_8_4 OMRON 0.5 XS5W-T421-BMC-SS
1 XS5W-T421-CMC-SS
2 XS5W-T421-DMC-SS
3 XS5W-T421-EMC-SS
5 XS5W-T421-GMC-SS
10 XS5W-T421-JMC-SS

*1 Standard type cables length 0.2, 0.3, 0.5, 1, 1.5, 2, 3, 5, 7.5, 10, 15 and 20 m are available.
Rugged type cables length 0.3, 0.5, 1, 2, 3, 5, 10 and 15 m are available.
For details, refer to Cat.No.G019.
*2 The lineup features Low Smoke Zero Halogen cables for in-cabinet use and PUR cables for out-of-cabinet use.
Although the LSZH cable is single shielded, its communications and noise characteristics meet the standards.
*3 Cables colors are available in blue, yellow, or Green.
*4 For details, contact your OMRON representative.

Cables/Connectors

Wire Gauge and Number of Pairs: AWG24, 4-pair Cable

ItemAppearanceRecommended manufacturerModel
Cables --- Hitachi Metals, Ltd. NETSTAR-C5E SAB 0.5 x 4P CP *
--- Kuramo Electric Co. KETH-SB *
--- SWCC Showa Cable Systems Co. FAE-5004 *
RJ45 Connectors --- Panduit Corporation MPS588-C *

* We recommend you to use above cable and connector together.

Wire Gauge and Number of Pairs: AWG22, 2-pair Cable

ItemAppearanceRecommended manufacturerModel
Cables --- Kuramo Electric Co. KETH-PSB-OMR *
--- JMACS Japan Co., Ltd. PNET/B *
RJ45 Assembly Connector 3164_lu_10_1 OMRON XS6G-T421-1 *

* We recommend you to use above cable and connector together.

Software

How to Select Required Support Software for Your Controller

The required Support Software depends on the Controller to connect. Please check the following table when purchasing the Support Software.

ItemOmron PLC SystemOmron Machine Automation Controller System
Controller CS, CJ, CP, and other series NJ/NX-series
Inverter Inverter MX2-series V1 type
Inverter MX2-series V1 type with EtherCAT
Communication Unit
(Applicable to the CJ series only.)
Inverter MX2-series V1 type with CompoNet
Communication Unit
Inverter MX2-series V1 type with DeviceNet
Communication Unit
Inverter MX2-series V1 type
Inverter MX2-series V1 type with EtherCAT Communication
Unit
Inverter MX2-series V1 type with CompoNet Communication
Unit
Inverter MX2-series V1 type with DeviceNet Communication
Unit
Software FA Integrated Tool Package CX-One Automation Software Sysmac Studio

FA Integrated Tool Package CX-One

Product nameSpecificationsModelStandards
 Number of licensesMedia
FA Integrated
Tool Package
CX-One
Ver.4.[]
The CX-One is a comprehensive software
package that integrates Support Software
for OMRON PLCs and components.

CX-One runs on following OS.
Windows 7 (32-bit/64-bit version)/
Windows 8 (32-bit/64-bit version)/
Windows 8.1 (32-bit/64-bit version)/
Windows 10 (32-bit/64-bit version)

CX-One Version.4.[] includes CX-Drive Ver.2.[].
For details, refer to the CX-One catalog
(Cat. No. R134)
1 license
*
DVD CXONE-AL01D-V4 -

* Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.

Automation Software Sysmac Studio

Please purchase a DVD and required number of licenses the first time you purchase the Sysmac Studio. DVDs and licenses are available individually. Each model of licenses does not include any DVD.

Product nameSpecificationsModelStandards
 Number of licensesMedia
Sysmac
Studio
Standard
Edition
Ver.1.[][]
The Sysmac Studio is the software that provides an
integrated environment for setting, programming,
debugging and maintenance of machine
automation controllers including the NJ/NX-series
CPU Units, NY-series Industrial PC,EtherCAT
Slave, and the HMI.

Sysmac Studio runs on the following OS.
Windows 7 (32-bit/64-bit version)/Windows 8 (32-
bit/64-bit version)/Windows 8.1 (32-bit/64-bit
version)/Windows 10 (32-bit/64-bit version) *1

The Sysmac Studio Standard Edition DVD includes
Support Software to set up EtherNet/IP Units,
DeviceNet slaves, Serial Communications Units,
and Support Software for creating screens on HMIs
(CX-Designer).
For details, refer to your OMRON website.
-
(Media
only)
Sysmac
Studio
(32 bit)
DVD
SYSMAC-SE200D -
-
(Media
only)
Sysmac
Studio
(64 bit)
DVD
SYSMAC-SE200D-64 -
1 license
*2
--- SYSMAC-SE201L -

*1 Model "SYSMAC-SE200D-64" runs on Windows 10 (64 bit).
*2 Multi licenses are available for the Sysmac Studio (3, 10, 30, or 50 licenses).

Specifications | Motion Drive Inverter - 3G3MX2-V1

Performance Specifications

Inverter MX2-series V1 type

3-phase 200 V Class

Function name3-phase 200 V
Model name (3G3MX2-)A2001-V1A2002-V1A2004-V1A2007-V1A2015-V1A2022-V1
Applicable
motor
capacity
kWCT 0.1 0.2 0.4 0.75 1.5 2.2
VT 0.2 0.4 0.75 1.1 2.2 3.0
HPCT 1/8 1/4 1/2 1 2 3
VT 1/4 1/2 1 1 1/2 3 4
Rated output
capacity
[kVA]
200 VCT 0.2 0.5 1.0 1.7 2.7 3.8
VT 0.4 0.6 1.2 2.0 3.3 4.1
240 VCT 0.3 0.6 1.2 2.0 3.3 4.5
VT 0.4 0.7 1.4 2.4 3.9 4.9
Rated input voltage 3-phase 200 V - 15% to 240 V + 10%, 50/60 Hz ± 5%
Rated input current [A]CT 1.0 1.6 3.3 6 9 12.7
VT 1.2 1.9 3.9 7.2 10.8 13.9
Rated output voltage 3-phase 200 to 240 V (The output cannot exceed the incoming voltage).
Rated output current [A]CT 1.0 1.6 3.0 5.0 8.0 11.0
VT 1.2 1.9 3.5 6.0 9.6 12.0
Short-time deceleration braking
torque (%)
(Discharge Resistor not connected)
50 50 50 50 50 20
Braking
Resistor
circuit *
Regenerative braking Built-in Braking Resistor circuit (separate Discharge Resistor)
Min. connectable
resistance [Ω]
100 100 100 50 50 35
Weight [kg] 1.0 1.0 1.1 1.2 1.6 1.8
Dimensions (width × height) [mm] 68 × 128 108 × 128
Dimensions (depth) [mm] 109 122.5 145.5 170.5
Function name3-phase 200 V
Model name (3G3MX2-)A2037-V1A2055-V1A2075-V1A2110-V1A2150-V1
Applicable
motor capacity
kWCT 3.7 5.5 7.5 11 15
VT 5.5 7.5 11 15 18.5
HPCT 5 7 1/2 10 15 20
VT 7 1/2 10 15 20 25
Rated output
capacity [kVA]
200 VCT 6.0 8.6 11.4 16.2 20.7
VT 6.7 10.3 13.8 19.3 23.9
240 VCT 7.2 10.3 13.7 19.5 24.9
VT 8.1 12.4 16.6 23.2 28.6
Rated input voltage 3-phase 200 V - 15% to 240 V + 10%, 50/60 Hz ± 5%
Rated input current [A]CT 20.5 30.8 39.6 57.1 62.6
VT 23.0 37.0 48.0 68.0 72.0
Rated output voltage 3-phase 200 to 240 V (The output cannot exceed the incoming voltage).
Rated output current [A]CT 17.5 25.0 33.0 47.0 60.0
VT 19.6 30.0 40.0 56.0 69.0
Short-time deceleration braking torque (%)
(Discharge Resistor not connected)
20 20 20 10 10
Braking Resistor
circuit *
Regenerative braking Built-in Braking Resistor circuit (separate Discharge Resistor)
Min. connectable
resistance [Ω]
35 20 17 17 10
Weight [kg] 2.0 3.3 3.4 5.1 7.4
Dimensions (width × height) [mm] 140 × 128 140 × 260 180 × 296 220 × 350
Dimensions (depth) [mm] 170.5 155 175

* The BRD usage is 10%.

3-phase 400 V Class

Function name3-phase 400 V
Model name (3G3MX2-)A4004-V1A4007-V1A4015-V1A4022-V1A4030-V1
Applicable
motor capacity
kWCT 0.4 0.75 1.5 2.2 3.0
VT 0.75 1.5 2.2 3.0 4.0
HPCT 1/2 1 2 3 4
VT 1 2 3 4 5
Rated output
capacity [kVA]
380 VCT 1.1 2.2 3.1 3.6 4.7
VT 1.3 2.6 3.5 4.5 5.7
480 VCT 1.4 2.8 3.9 4.5 5.9
VT 1.7 3.4 4.4 5.7 7.3
Rated input voltage 3-phase 380 V - 15% to 480 V + 10%, 50/60 Hz ± 5%
Rated input current [A]CT 1.8 3.6 5.2 6.5 7.7
VT 2.1 4.3 5.9 8.1 9.4
Rated output voltage 3-phase 380 to 480 V (The output cannot exceed the incoming voltage).
Rated output current [A]CT 1.8 3.4 4.8 5.5 7.2
VT 2.1 4.1 5.4 6.9 8.8
Short-time deceleration braking torque (%)
(Discharge Resistor not connected)
50 50 50 20 20
Braking Resistor
circuit *
Regenerative braking Built-in Braking Resistor circuit (separate Discharge Resistor)
Min. connectable
resistance [Ω]
180 180 180 100 100
Weight [kg] 1.5 1.6 1.8 1.9 1.9
Dimensions (width × height) [mm] 108 × 128
Dimensions (depth) [mm] 143.5 170.5
Function name3-phase 400 V
Model name (3G3MX2-)A4040-V1A4055-V1A4075-V1A4110-V1A4150-V1
Applicable
motor capacity
kWCT 4.0 5.5 7.5 11 15
VT 5.5 7.5 11 15 18.5
HPCT 5 7 1/2 10 15 20
VT 7 1/2 10 15 20 25
Rated output
capacity [kVA]
380 VCT 6.0 9.7 11.8 15.7 20.4
VT 7.3 11.5 15.1 20.4 25.0
480 VCT 7.6 12.3 14.9 19.9 25.7
VT 9.2 14.5 19.1 25.7 31.5
Rated input voltage 3-phase 380 V - 15% to 480 V + 10%, 50/60 Hz ± 5%
Rated input current [A]CT 11.0 16.9 18.8 29.4 35.9
VT 13.3 20.0 24.0 38.0 44.0
Rated output voltage 3-phase 380 to 480 V (The output cannot exceed the incoming voltage).
Rated output current [A]CT 9.2 14.8 18.0 24.0 31.0
VT 11.1 17.5 23.0 31.0 38.0
Short-time deceleration braking torque (%)
(Discharge Resistor not connected)
20 20 20 10 10
Braking Resistor
circuit *
Regenerative braking Built-in Braking Resistor circuit (separate Discharge Resistor)
Min. connectable
resistance [Ω]
100 70 70 70 35
Weight [kg] 2.1 3.5 3.5 4.7 5.2
Dimensions (width × height) [mm] 140 × 128 140 × 260 180 × 296
Dimensions (depth) [mm] 170.5 155 175

* The BRD usage is 10%.

1-phase 200 V Class

Function name1-phase 200 V
Model name (3G3MX2-)AB001-V1AB002-V1AB004-V1AB007-V1AB015-V1AB022-V1
Applicable
motor
capacity
kWCT 0.1 0.2 0.4 0.75 1.5 2.2
VT 0.2 0.4 0.55 1.1 2.2 3.0
HPCT 1/8 1/4 1/2 1 2 3
VT 1/4 1/2 3/4 1 1/2 3 4
Rated output
capacity
[kVA]
200 VCT 0.2 0.5 1.0 1.7 2.7 3.8
VT 0.4 0.6 1.2 2.0 3.3 4.1
240 VCT 0.3 0.6 1.2 2.0 3.3 4.5
VT 0.4 0.7 1.4 2.4 3.9 4.9
Rated input voltage 1-phase 200 V - 15% to 240 V + 10%, 50/60 Hz ± 5%
Rated input current [A]CT 1.3 3.0 6.3 11.5 16.8 22.0
VT 2.0 3.6 7.3 13.8 20.2 24.0
Rated output voltage 3-phase 200 to 240 V (The output cannot exceed the incoming voltage).
Rated output current [A]CT 1.0 1.6 3.0 5.0 8.0 11.0
VT 1.2 1.9 3.5 6.0 9.6 12.0
Short-time deceleration braking
torque (%)
(Discharge Resistor not connected)
50 50 50 50 50 20
Braking
Resistor
circuit *
Regenerative braking Built-in Braking Resistor circuit (separate Discharge Resistor)
Min. connectable
resistance [ Ω ]
100 100 100 50 50 35
Weight [kg] 1.0 1.0 1.1 1.6 1.8 1.8
Dimensions (width × height) [mm] 68 × 128 108 × 128
Dimensions (depth) [mm] 109 122.5 170.5

* The BRD usage is 10%.

Function Specifications

Function nameSpecifications
Enclosure ratings *1 Open type (IP20)
ControlControl method Phase-to-phase sinusoidal modulation PWM
Output frequency
range *2
0.10 to 400 Hz (or 580 Hz in the high-frequency mode; restrictions apply)
Frequency precision *3 Digital command: ±0.01% of the max. frequency, Analog command: ±0.2% of
the max. frequency (25±10 °C)
Frequency setting
resolution
Digital setting: 0.01 Hz, Analog setting: One-thousandth of the maximum
frequency
Voltage/Frequency
characteristics
V/f characteristics (constant/reduced torque)
Sensorless vector control, V/f control with speed feedback
Overload current
rating
Heavy load rating (CT): 150%/60 s
Light load rating (VT): 120%/60 s
Instantaneous
overcurrent protection
200% of the value of heavy load rating (CT)
Acceleration/
Deceleration time
0.01 to 3600 s (linear/curve selection), acceleration/deceleration 2 setting
vailable
Carrier frequency
adjustment range
2 to 15 kHz (with derating)
Starting torque 200%/0.5 Hz (sensorless vector control)
External DC injection
braking
Starts at a frequency lower than that in deceleration via the STOP command,
at a value set lower than that during operation, or via an external input. (Level
and time settable).
Protective functions Overcurrent, overvoltage, undervoltage, electronic thermal, temperature error,
ground fault overcurrent at power-on status, rush current prevention circuit,
overload limit, incoming overvoltage, external trip, memory error, CPU error, USP
error, communication error, overvoltage suppression during deceleration,
protection upon momentary power outage, emergency cutoff, etc.
Input
signal
Frequency settings Digital Operator
External analog input signal: 0 to 10 VDC/4 to 20 mA, Modbus communication
(Modbus-RTU)
RUN/STOP command Digital Operator
External digital input signal (3-wire input supported), Modbus communication
(Modbus-RTU)
Multi-function input *4 7 points (Functions can be selected from among 68)
Analog input *5 2 points (Voltage FV terminal: 10 bits/0 to 10 V, Current FI terminal: 10 bits/4 to
20 mA)
Pulse input 1 point (RP terminal: 32 kHz max., 5 to 24 VDC)
Output
signal
Multi-function output *4 2 points (P1 and P2, Functions can be selected from among 47)
Relay output *4 1 point (SPDT contact (MC, MA, MB), Functions can be selected from among 47)
Analog output
(Frequency monitor) *6
1 point (AM terminal: Voltage 10 bits/0 to 10 V) (Frequency, current selectable)
Pulse output 1 point (MP terminal: 32 kHz max., 0 to 10 V)
CommunicationsRS-422 RJ45 connector (for Digital Operator)
RS-485 Control circuit terminal block, Modbus communication (Modbus-RTU)
USB USB1.1, mini-B connector
Other functions AVR function, V/f characteristics switching, upper/lower limit, 16-step speeds,
starting frequency adjustment, jogging operation, carrier frequency adjustment,
PID control, frequency jump, analog gain/bias adjustment, S shape
acceleration/deceleration, electronic thermal characteristics, level adjustment,
restart function, torque boost function, fault monitor, soft lock function, frequency
conversion display, USP function, motor 2 control function, UP/DWN,
overcurrent control function, etc.
Operating
environ-
ment
Ambient operating
temperature *7
-10 to 50 °C (However, derating is required).
Ambient storage
temperature
-20 °C to 65 °C
Ambient operating
humidity
20% to 90% RH (with no condensation)
Vibration resistance 5.9 m/s2 (0.6G), 10 to 55 Hz
Application
environment
At a maximum altitude of 1,000 m; indoors (without corrosive gases or dust)
OptionsEtherCAT
Communication Unit
3G3AX-MX2-ECT
CompoNet
Communication Unit
3G3AX-MX2-CRT-E
DeviceNet
Communication Unit
3G3AX-MX2-DRT-E
Other option DC reactor, AC reactor, radio noise filter, input noise filter, output noise filter,
regenerative braking unit, Braking Resistor, etc.
Interna-
tional
standard
EC di-
rective
Machinery
Directives
EN ISO 13849-1: 2008 Pld
EN 61800-5-2
EN 60204-1
EMC Directive EN 61800-3: 2004
Low-voltage
Directive
EN 61800-5-1: 2007
UL/cUL UL508C

*1 Protection method complies with JEM 1030.
*2 To operate the motor at over 50/60 Hz, contact the motor manufacturer to find out the maximum allowable speed of
revolution.
*3 For the stable control of the motor, the output frequency may exceed the maximum frequency set in A004 (A204) by
2 Hz max.
*4 In the VT (light load) mode and the PM motor mode, the available functions are limited compared with the CV (heavy
load) mode. For some parameters, the default data and setting range also differ.
*5 By default, the maximum frequency is adjusted to 9.8 V for a voltage input of 0 to 10 VDC and to 19.8 mA for a current
input of 4 to 20 mA, respectively. If necessary, adjust the default parameter settings.
*6 The analog voltage and current values for the multi-function monitor output terminals show values that can only be
used as a guide for analog meter connection. The maximum output value may differ from 10 V or 20 mA due to the
variability of the analog output circuit. If necessary, adjust the default parameter settings.
*7 Derating of the rated output current of the inverter may be required depending on the heavy/light load mode selection,
operating ambient temperature, side-by-side installation, and carrier frequency setting. Use the inverter in an
appropriate environment according to USER’S MANUAL (Cat.No.I585).
Note: 1. The applicable motor is a 3-phase standard motor. For using any other type, be sure that the rated current does
not exceed that of the Inverter.
2. Output voltage decreases according to the level of the power supply voltage.
3. The braking torque at the time of capacitor feedback is an average deceleration torque at the shortest
deceleration (when it stops from 50 Hz). It is not a continuous regeneration torque. Also, the average
deceleration torque varies depending on the motor loss. The value is reduced in operation over 50 Hz.

Communication Unit

MX2-Series EtherCAT Communication Unit 3G3AX-MX2-ECT

This is the communication unit to connect the Multi-function Compact Inverter MX2 to EtherCAT network.
This communication unit passed the conformance test of EtherCAT.

Common Specifications

ItemSpecifications
Power supply Supplied from the inverter
Protective structure Open type (IP20)
Ambient operating temperature - 10 to +50 °C
Ambient storage temperature - 20 to +65 °C
Ambient operating humidity 20% to 90% RH (with no condensation)
Vibration resistance 5.9 m/s2 (0.6 G), 10 to 55 Hz
Application environment At a maximum altitude of 1,000 m; indoors (without corrosive gases or dust)
Weight 100 g max.
International standardUL/cUL UL508C
EC directive EMC Directive:EN61800-3: 2004
Low Voltage Directive:EN61800-5-1: 2003

EtherCAT Communications Specifications

ItemSpecifications
Communications standard IEC 61158 Type12, IEC 61800-7 CiA 402 drive profile
Physical layer 100BASE-TX (IEEE802.3)
Connector RJ45 × 2 (shielded type)
ECAT IN: EtherCAT input
ECAT OUT: EtherCAT output
Communications media Category 5 or higher (cable with double, aluminum tape and braided shielding) is
recommended.
Communications distance Distance between nodes: 100 m max.
Process data Fixed PDO mapping
PDO mapping
Mailbox (CoE) Emergency messages, SDO, SDO responses, and information
Distributed clock FreeRun mode (asynchronous)
LED display L/A IN (Link/Activity IN) × 1
L/A OUT (Link/Activity OUT) × 1
RUN × 1
ERR × 1
CiA402 drive profile Velocity mode

MX2-Series CompoNet Communication Unit 3G3AX-MX2-CRT-E

This is the communication unit to connect the Multi-function Compact Inverter MX2 to CompoNet network.

Common Specification

ItemSpecification
Power supply Supplied from the inverter
Protective structure IP20
Ambient operating temperature - 10 to 50 °C
Ambient storage temperature - 20 to 65 °C
Ambient operating humidity 20 to 90%RH (with no condensation)
Vibration resistance 5.9m/s2 (0.6G), 10 to 55Hz
Application environment At a maximum altitude of 1,000 m; indoors (without corrosive gases or dust)
Insulation resistance 500VAC (between isolated circuits)
Weight Approx. 170g
International standardUL/cUL UL508
EC directive EN61800-3: 2004 (2004/108/EC) Second environment, Category C3
EN61800-5-1: 2007 (2006/95/EC) SELV

CompoNet Communications Specifications

ItemSpecification
Slave type Word Slave Unit (Mixed)
Certification CompoNet Conformance Tested
CompoNet Profile AC Drive (0x02)
Node Address 0 to 63, set with inverter parameter P190 or the rotary switches.
Communication power supply - (External power not required)
Baud rates supported 4 Mbps, 3 Mbps, 1.5 Mbps, 93.75 kbps. Automatically detecting baud rate of Master Unit
Default Connection path Supported, set with inverter parameter P046
Supported Assemblies Basic Remote IO (Output assembly 20, Input assembly 70)
Extended Speed IO (21, 71)
Extended Speed and Torque Control (123, 173)
Special IO (100, 150)
Extended Control IO (101, 151)
Extended Control IO and Multi function IO monitor (101, 153)
Flexible Format (139, 159)
Extended Speed and Acceleration Control (110, 111)
EDS file Depending on the MX2 inverter model

MX2-Series DeviceNet Communication Unit 3G3AX-MX2-DRT-E

This is the communication unit to connect the Multi-function Compact Inverter MX2 to DeviceNet network.

Common Specification

ItemSpecification
Power supply Supplied from the inverter
Protective structure IP20
Ambient operating temperature - 10 to 50 °C
Ambient storage temperature - 20 to 65 °C
Ambient operating humidity 20 to 90%RH (with no condensation)
Vibration resistance 5.9m/s2 (0.6G), 10 to 55Hz
Application environment At a maximum altitude of 1,000 m; indoors (without corrosive gases or dust)
Insulation resistance 500VAC (between isolated circuits)
Weight Approx. 170g
International standardUL/cUL UL508
EC directive EN61800-3: 2004 (2004/108/EC) Second environment, Category C3
EN61800-5-1: 2007 (2006/95/EC) SELV

DeviceNet Communications Specifications

ItemSpecification
Certification DeviceNet Conformance Tested
DeviceNet Profile AC Drive (0x02)
Supported connections Remote I/O: Master-Slave connection
Poll
Bit-Strobe
COS
Cyclic
Explicit Messages
Conform to DeviceNet specifications
Communication power supply 11 to 25VDC (MAX 50 mA, type 20 mA)
Unit device address range MAC ID 0 to 63, set with inverter parameter P192
Baud rates supported 125, 250, or 500kbps. Automatically detects baud rate of Master Unit.
Default Connection path Supported, set with inverter parameter P046
Supported Assemblies Basic Remote IO (Output assembly 20, Input assembly 70)
Extended Speed IO (21, 71)
Extended Speed and Torque Control (123, 173)
Special IO (100, 150)
Extended Control IO (101, 151)
Extended Control IO and Multi function IO monitor (101, 153)
Flexible Format (139, 159)
Extended Speed and Acceleration Control (110, 111)
In case the DeviceNet master is configured using user allocation, only the input/
output pairs can be configured.
EDS file Depending on the MX2 Inverter model

Options

Regenerative Braking Unit 3G3AX-RBU[][]

Used with a Braking Resistor when the deceleration time of the motor is needed to be reduced in the MX2.

Built-in Resistance Type (3G3AX-RBU21/-RBU22/-RBU41)

Class3-phase 200-V class3-phase 400-V class
Model name (3G3AX-)RBU21RBU22RBU41 *1
Connection resistance 17 Ω min. 17 Ω min. 34 Ω min.
Operating voltage
ON/OFF
ON: 362.5 ± 5 V
OFF: 355 ± 5 V
(-5% or -10% setting available)
ON: 725 ± 5 V
OFF: 710 ± 5 V
(-5% or -10% setting
available)
Operation indication LED ON (Lit)
Parallel interlocking operation
function *2
5 units max.
Built-in
resistor
Internal
resistance
120 W, 180 W 120 W, 20 W 120 W, 180 W × 2 in series
Allowable
consecutive ON
time
10 s max. 0.5 s max. 10 s max.
Allowable
operation cycle
Cycle 1/10
(ON for 10 s, OFF for 90 s)
Cycle 1/80
(ON for 0.5 s, OFF for 40 s)
Cycle 1/10
(ON for 10 s, OFF for 90 s)
Power
consumption
Instantaneous 0.73 kW
Short-time rating 120 W
Instantaneous 6.6 kW
Short-time rating 120 W
Instantaneous 1.46 kW
Short-time rating 240 W
Protective
function
Built-in resistor
overheat
protection
• Cooling fin temperatureRelay operates at approximately 200°C or higher.
Recovers at approximately 170°C or lower.
• Built-in temperature fuse (recovery impossible) *3
• Rating of contact250 V AC 200mA (R load)
12 V DC 500mA (R load)
42 V DC 200mA (R load)
• Minimum load1mA (R load)
Operating
environ-
ment
Ambient
temperature
-10 to 50°C
Ambient storage
temperature
-20 to 65°C
Ambient operating
humidity
20% to 90% (with no condensation)
Vibration 5.9 m/s2 (0.6G) 10 to 55 Hz
Location At a maximum altitude of 1,000 m (without corrosive gases or dust)
Paint color Munselle 5Y7/1 (cooling fan: aluminum ground color)

*1 To use the braking resistor (Model: 3G3AX-RAB/RBB/RBC) for the 400-V class regenerative braking unit, be sure to
remove the built-in resistor and connect two resistors of the same model in series. Using a 400-V class regenerative
braking unit with only a single braking resistor connected may cause damage to the braking resistor.
*2 Use DIP switches to set the number of connected units.
*3 The built-in resistor has a thermal fuse. If the alarm terminals are not connected, the fuse may blow out in order to
prevent the resistor from burning due to overheating. If the fuse blows out, the built-in resistor must be replaced.

Braking Resistor 3G3AX-RBA/-RBB/-RBC[][][][]

Consumes the regenerative motor energy with a resistor to reduce deceleration time.

ModelCompact type
(3G3AX-RBA[][][][])
Standard type
(3G3AX-RBB[][][][])
Medium capacity type
(3G3AX-RBC[][][][])
120112021203120420012002300140014001600112001
ResistanceCapacity 120 W 200 W 300 W 400 W 400 W 600 W 1200 W
Resistance
(Ω)
180 100 50 35 180 100 50 35 50 35 17
Allowable
brakingfrequency (%)
5 2.5 1.5 1.0 10 7.5 7.5 7.5 10
Allowable
continuousbraking time (s)
20 12 5 3 30 20 10
Weight (kg) 0.27 0.97 1.68 2.85 2.5 3.6 6.5
Fault detection function Built-in thermal (Contact capacity: 240 V AC 2 A max.)
Minimum current: 5 mA,
Normally ON (NC contact)
Built-in temperature fuse (recovery impossible) *
Built-in temperature
relay,
Normally ON (NC
contact)
Contact capacity:
240 V AC 3 A (R load),
0.2 A (L load),
36 V DC 2 A (R load)
General
specifi-
cations
Ambient
operating
temperature
-10 to 50°C
Ambient
storage
temperature
-20 to 65°C
Ambient
operating
humidity
20% to 90% (RH) with no condensation
Vibration 5.9 m/s (0.6 G) 10 to 55 Hz Complies with JISC0911
Location At a maximum altitude of 1,000 m (without corrosive gases or dust)
Cooling
method
Self-cooling
* Built-in resistors are equipped with thermal fuses. If the alarm is not connected, the fuse may blow to prevent burnout
due to overheating. If the fuse blows, the built-in resistor will need to be replaced.

Radio Noise Filter 3G3AX-ZCL[]

Connected to the inverter input/output cables to reduce noise coming into the inverter from the power supply line and noise flowing from the inverter into the power supply line.

3G3AX-ZCL1

3G3MX2-V1 Specifications 31

Note: Select options by the maximum applicable motor capacity of heavy and light load rating.

3G3AX-ZCL2

3G3MX2-V1 Specifications 33

Note: Select options by the maximum applicable motor capacity of heavy and light load rating.

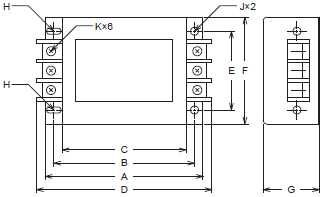

Input Noise Filter 3G3AX-NFI[][]

Reduces noise coming into the inverter from the power supply line and noise flowing from the inverter into the power supply line. Connect as close to the Inverter as possible.

Power
supply
ModelInverter modelRated input current
In (A) at an ambient
temperature of 50°C
Power
loss
(W)
Leakage current
(mA/phase) at 60 Hz
3-phase
200 VAC
3G3AX-NFI21 3G3MX2-A2001-V1 3 × 6 A 3 < 1.5 (250 V)
3G3AX-NFI21 3G3MX2-A2002-V1 3 × 6 A 3 < 1.5 (250 V)
3G3AX-NFI21 3G3MX2-A2004-V1 3 × 6 A 3 < 1.5 (250 V)
3G3AX-NFI22 3G3MX2-A2007-V1 3 × 10 A 4 < 1.5 (250 V)
3G3AX-NFI23 3G3MX2-A2015-V1 3 × 20 A 6 < 1.5 (250 V)
3G3AX-NFI23 3G3MX2-A2022-V1 3 × 20 A 6 < 1.5 (250 V)
3G3AX-NFI24 3G3MX2-A2037-V1 3 × 30 A 9 < 1.5 (250 V)
3G3AX-NFI25 3G3MX2-A2055-V1 3 × 40 A 12 < 1.5 (250 V)
3G3AX-NFI26 3G3MX2-A2075-V1 3 × 60 A 17 < 1.5 (250 V)
3G3AX-NFI27 3G3MX2-A2110-V1 3 × 80 A 21 < 1.5 (250 V)
1-phase
200 VAC
3G3AX-NFI21 3G3MX2-AB001-V1 3 × 6 A 3 < 1.5 (250 V)
3G3AX-NFI21 3G3MX2-AB002-V1 3 × 6 A 3 < 1.5 (250 V)
3G3AX-NFI22 3G3MX2-AB004-V1 3 × 10 A 4 < 1.5 (250 V)
3G3AX-NFI23 3G3MX2-AB007-V1 3 × 20 A 6 < 1.5 (250 V)
3G3AX-NFI24
3G3AX-NFI23 *
3G3MX2-AB015-V1 3 × 30 A
3 × 20 A
9
6
< 1.5 (250 V)
3G3AX-NFI24 3G3MX2-AB022-V1 3 × 30 A 9 < 1.5 (250 V)
3-phase
400 VAC
3G3AX-NFI41 3G3MX2-A4004-V1 3 × 7 A 2 < 7.5 (480 V)
3G3AX-NFI41 3G3MX2-A4007-V1 3 × 7 A 2 < 7.5 (480 V)
3G3AX-NFI41 3G3MX2-A4015-V1 3 × 7 A 2 < 7.5 (480 V)
3G3AX-NFI42 3G3MX2-A4022-V1 3 × 10 A 4 < 7.5 (480 V)
3G3AX-NFI42 3G3MX2-A4030-V1 3 × 10 A 4 < 7.5 (480 V)
3G3AX-NFI43 3G3MX2-A4040-V1 3 × 20 A 6 < 7.5 (480 V)
3G3AX-NFI43 3G3MX2-A4055-V1 3 × 20 A 6 < 7.5 (480 V)
3G3AX-NFI44 3G3MX2-A4075-V1 3 × 30 A 9 < 7.5 (480 V)
3G3AX-NFI45 3G3MX2-A4110-V1 3 × 40 A 12 < 7.5 (480 V)
3G3AX-NFI46 3G3MX2-A4150-V1 3 × 50 A 15 < 7.5 (480 V)

* With the 3G3AX-NFI23, only the CT rating is supported.

ModelCase enclosure ratingTerminal sizeWire dia.Weight (kg)
3G3AX-NFI21 Plastic, IP00 M4 1.25 mm2 0.5
3G3AX-NFI22 Plastic, IP00 M4 2 mm2 0.6
3G3AX-NFI23 Plastic, IP00 M4 2 mm2, 3.5 mm2 0.7
3G3AX-NFI24 Plastic, IP00 M4 5.5 mm2 0.8
3G3AX-NFI25 Plastic, IP00 M5 8 mm2 1.4
3G3AX-NFI26 Plastic, IP00 M5 14 mm2 1.8
3G3AX-NFI27 Metal, IP00 M6 22 mm2 3.6
3G3AX-NFI41 Plastic, IP00 M4 1.25 mm2, 2 mm2 0.7
3G3AX-NFI42 Plastic, IP00 M4 2 mm2 0.7
3G3AX-NFI43 Plastic, IP00 M4 2 mm2, 3.5 mm2 0.7
3G3AX-NFI44 Plastic, IP00 M4 5.5 mm2 0.8
3G3AX-NFI45 Plastic, IP00 M5 8 mm2 1.4
3G3AX-NFI46 Plastic, IP00 M5 14 mm2 1.6

Note: Select options by the maximum applicable motor capacity of heavy and light load rating.

Output Noise Filter 3G3AX-NFO[][]

Reduces noise generated by the Inverter. Connect as close to the Inverter as possible.

Power
supply
ModelRated
current
(A)
Inverter modelWeight
(kg)
3-phase AC
200 V class
1-phase AC
200 V class
3-phase AC
400 V class
3-phase,
3-wire
Rated
voltage
500 VAC
3G3AX-NFO01 6 3G3MX2-A2001-V1/
-A2002-V1/
-A2004-V1
3G3MX2-AB001-V1
/-AB002-V1
/-AB004-V1
3G3MX2-A4004-V1/
-A4007-V1
0.7
3G3AX-NFO02 12 3G3MX2-A2007-V1/
-A2015-V1
3G3MX2-AB007-V1
/-AB015-V1
3G3MX2-A4015-V1/
-A4022-V1/-A4030-V1
0.9
3G3AX-NFO03 25 3G3MX2-A2022-V1/
-A2037-V1
3G3MX2-AB022-V1 3G3MX2-A4040-V1/
-A4055-V1/-A4075-V1
2.1
3G3AX-NFO04 50 3G3MX2-A2055-V1/
-A2075-V1
- 3G3MX2-A4110-V1/
-A4150-V1
3.7
3G3AX-NFO05 75 3G3MX2-A2110-V1
/-A2150-V1
- - 5.7

Note: Select options by the maximum applicable motor capacity of heavy and light load rating.

DC Reactor 3G3AX-DL[][][][]

Used to suppress harmonic current generated from the Inverter.
Suppresses harmonic current better than the AC Reactor and can be used with the AC Reactor.

InverterDC reactor specifications
Voltage
class
Max.
applicable
motor
capacity
(kW)
ModelHeavy
load:
CT,
Light
load:
VT
mode
Max.
appli-cable
motor
capacity
(kW)
Rated
input
current
(A)
ModelInduc-tance
(mH)
Heat
gene-ration
(W)
Operating
ambient
temperature/
humidity
Location
3-phase
200-V
class
0.1 3G3MX2-
A2001-V1
Heavy
load *
0.1 1.0 3G3AX-
DL2002
21.4 8 -10 to 50°C
20% to 90%
At an
altitude of
1,000 m
max.;
indoors
(without
corrosive
gases or
dust)
Light
load
0.2 1.2
0.2 3G3MX2-
A2002-V1
Heavy
load *
0.2 1.6
Light
load
0.4 1.9 3G3AX-
DL2004
10.7
0.4 3G3MX2-
A2004-V1
Heavy
load *
0.4 3.3
Light
load
0.75 3.9 3G3AX-
DL2007
6.75 10
0.75 3G3MX2-
A2007-V1
Heavy
load *
0.75 6.0
Light
load
1.1 7.2 3G3AX-
DL2015
3.51
1.5 3G3MX2-
A2015-V1
Heavy
load *
1.5 9.0
Light
load
2.2 10.8 3G3AX-
DL2022
2.51 13
2.2 3G3MX2-
A2022-V1
Heavy
load *
2.2 12.7
Light
load
3.0 13.9 3G3AX-
DL2037
1.60 20
3.7 3G3MX2-
A2037-V1
Heavy
load *
3.7 20.5
Light
load
5.5 23.0 3G3AX-
DL2055
1.11 26
5.5 3G3MX2-
A2055-V1
Heavy
load *
5.5 30.8 3G3AX-
DL2075
0.84 36
Light
load
7.5 37.0
7.5 3G3MX2-
A2075-V1
Heavy
load *
7.5 39.6
Light
load
11 48.0 3G3AX-
DL2110
0.59 52
11 3G3MX2-
A2110-V1
Heavy
load *
11 57.1
Light
load
15 68.0 3G3AX-
DL2150
0.44 60
15 3G3MX2-
A2150-V1
Heavy
load *
15 62.6
Light
load
18.5 72.0 3G3AX-
DL2220
0.30 63
Single-phase
200-V
Class
0.1 3G3MX2-
AB001-V1
Heavy
load *
0.1 1.3 3G3AX-
DL2002
21.4 8 -10 to 50°C
20% to 90%
At an
altitude of
1,000 m
max.;
indoors
(without
corrosive
gases or
dust)
Light
load
0.2 2.0
0.2 3G3MX2-
AB002-V1
Heavy
load *
0.2 3.0
Light
load
0.4 3.6 3G3AX-
DL2004
10.7
0.4 3G3MX2-
AB004-V1
Heavy
load *
0.4 6.3
Light
load
0.55 7.3 3G3AX-
DL2007
6.75 10
0.75 3G3MX2-
AB007-V1
Heavy
load *
0.75 11.5
Light
load
1.1 13.8 3G3AX-
DL2015
3.51
1.5 3G3MX2-
AB015-V1
Heavy
load *
1.5 16.8
Light
load
2.2 20.2 3G3AX-
DL2022
2.51 13
2.2 3G3MX2-
AB022-V1
Heavy
load *
2.2 22.0
Light
load
3.0 24.0 3G3AX-
DL2037
1.60 20
3-phase
400-V
class
0.4 3G3MX2-
A4004-V1
Heavy
load *
0.4 1.8 3G3AX-
DL4004
43.0 10 -10 to 50°C
20% to 90%
At an
altitude of
1,000 m
max.;
indoors
(without
corrosive
gases or
dust)
Light
load
0.75 2.1 3G3AX-
DL4007
27.0
0.75 3G3MX2-
A4007-V1
Heavy
load *
0.75 3.6
Light
load
1.5 4.3 3G3AX-
DL4015
14.0
1.5 3G3MX2-
A4015-V1
Heavy
load *
1.5 5.2
Light
load
2.2 5.9 3G3AX-
DL4022
10.1 13
2.2 3G3MX2-
A4022-V1
Heavy
load *
2.2 6.5
Light
load
3.0 8.1 3G3AX-
DL4037
6.4 20
3.0 3G3MX2-
A4030-V1
Heavy
load *
3.0 7.7
Light
load
4.0 9.4
4.0 3G3MX2-
A4040-V1
Heavy
load *
4.0 11.0
Light
load
5.5 13.3 3G3AX-
DL4055
4.41 26
5.5 3G3MX2-
A4055-V1
Heavy
load *
5.5 16.9
Light
load
7.5 20.0 3G3AX-
DL4075
3.35 36
7.5 3G3MX2-
A4075-V1
Heavy
load *
7.5 18.8
Light
load
11 24.0 3G3AX-
DL4110
2.33 52
11 3G3MX2-
A4110-V1
Heavy
load *
11 29.4
Light
load
15 38.0 3G3AX-
DL4150
1.75 60
15 3G3MX2-
A4150-V1
Heavy
load *
15 35.9
Light
load
18.5 44.0 3G3AX-
DL4220
1.2 67

* The DC reactor model for the heavy-load mode is selected with reference to the rated current value of a general-purpose motor, which is 85% of the rated output current of the inverter. If you intend to constantly drive a motor whose rated current value exceeds 85% of the rated output current of the inverter, use the DC reactor model selected for the light-load mode.

AC Reactor 3G3AX-AL[][][][]

Connect the AC Reactor if the capacity of the power supply is much larger than that of the Inverter or the power factor is required to be improved.

InverterDC reactor specifications
Voltage
class
Max.
applicable
motor
capacity
(kW)
ModelHeavy
load:
CT,
Light
load:
VT
mode
Max.
appli-cable
motor
capacity
(kW)
Rated
input
current
(A)
ModelInduc-tance
(mH)
Heat
gene-ration
(W)
Operating
ambient
temperature/
humidity
Location
3-phase
200-V
class
0.1 3G3MX2-
A2001-V1
Heavy
load
0.1 1.0 3G3AX-
AL2025
2.8 12 -10 to 50°C
20% to 90%
At an
altitude of
1,000 m
max.;
indoors
(without
corrosive
gases or
dust)
Light
load
0.2 1.2
0.2 3G3MX2-
A2002-V1
Heavy
load
0.2 1.6
Light
load
0.4 1.9
0.4 3G3MX2-
A2004-V1
Heavy
load
0.4 3.3
Light
load
0.75 3.9
0.75 3G3MX2-
A2007-V1
Heavy
load
0.75 6.0
Light
load
1.1 7.2
1.5 3G3MX2-
A2015-V1
Heavy
load
1.5 9.0
Light
load
2.2 10.8 3G3AX-
AL2055
0.88 25
2.2 3G3MX2-
A2022-V1
Heavy
load
2.2 12.7
Light
load
3.0 13.9
3.7 3G3MX2-
A2037-V1
Heavy
load
3.7 20.5 3G3AX-
AL2110
0.35 50
Light
load
5.5 23.0
5.5 3G3MX2-
A2055-V1
Heavy
load
5.5 30.8
Light
load
7.5 37.0
7.5 3G3MX2-
A2075-V1
Heavy
load
7.5 39.6 3G3AX-
AL2220
0.18 50
Light
load
11 48.0
11 3G3MX2-
A2110-V1
Heavy
load
11 57.1
Light
load
15 68.0
15 3G3MX2-
A2150-V1
Heavy
load
15 62.6
Light
load
18.5 72.0 3G3AX-
AL2330
0.09 85
Single-
phase
200-V
Class
0.1 3G3MX2-
AB001-V1
Heavy
load
0.1 1.3 3G3AX-
AL2025
2.8 12 -10 to 50°C
20% to 90%
At an
altitude of
1,000 m
max.;
indoors
(without
corrosive
gases or
dust)
Light
load
0.2 2.0
0.2 3G3MX2-
AB002-V1
Heavy
load
0.2 3.0
Light
load
0.4 3.6
0.4 3G3MX2-
AB004-V1
Heavy
load
0.4 6.3
Light
load
0.55 7.3
0.75 3G3MX2-
AB007-V1
Heavy
load
0.75 11.5 3G3AX-
AL2055
0.88 25
Light
load
1.1 13.8
1.5 3G3MX2-
AB015-V1
Heavy
load
1.5 16.8
Light
load
2.2 20.2 3G3AX-
AL2110
0.35 50
2.2 3G3MX2-
AB022-V1
Heavy
load
2.2 22.0
Light
load
3.0 24.0
3-phase
400-V
class
0.4 3G3MX2-
A4004-V1
Heavy
load
0.4 1.8 3G3AX-
AL4025
7.7 12 -10 to 50°C
20% to 90%
At an
altitude of
1,000 m
max.;
indoors
(without
corrosive
gases or
dust)
Light
load
0.75 2.1
0.75 3G3MX2-
A4007-V1
Heavy
load
0.75 3.6
Light
load
1.5 4.3
1.5 3G3MX2-
A4015-V1
Heavy
load
1.5 5.2
Light
load
2.2 5.9
2.2 3G3MX2-
A4022-V1
Heavy
load
2.2 6.5 3G3AX-
AL4055
3.5 25
Light
load
3.0 8.1
3.0 3G3MX2-
A4030-V1
Heavy
load
3.0 7.7
Light
load
4.0 9.4
4.0 3G3MX2-
A4040-V1
Heavy
load
4.0 11.0 3G3AX-
AL4110
1.3 50
Light
load
5.5 13.3
5.5 3G3MX2-
A4055-V1
Heavy
load
5.5 16.9
Light
load
7.5 20.0
7.5 3G3MX2-
A4075-V1
Heavy
load
7.5 18.8
Light
load
11 24.0 3G3AX-
AL4220
0.74 60
11 3G3MX2-
A4110-V1
Heavy
load
11 29.4
Light
load
15 38.0 3G3AX-
AL4330
0.36 90
15 3G3MX2-
A4150-V1
Heavy
load
15 35.9
Light
load
18.5 44.0

Dimensions | Motion Drive Inverter - 3G3MX2-V1

Inverter 3G3MX2

3G3MX2-AB001-V1
3G3MX2-AB002-V1
3G3MX2-AB004-V1
3G3MX2-A2001-V1
3G3MX2-A2002-V1
3G3MX2-A2004-V1
3G3MX2-A2007-V1

3G3MX2-V1 Dimensions 2

3G3MX2-AB007-V1
3G3MX2-AB015-V1
3G3MX2-AB022-V1
3G3MX2-A2015-V1
3G3MX2-A2022-V1
3G3MX2-A4004-V1
3G3MX2-A4007-V1
3G3MX2-A4015-V1
3G3MX2-A4022-V1
3G3MX2-A4030-V1

3G3MX2-V1 Dimensions 3

3G3MX2-A2037-V1
3G3MX2-A4040-V1

3G3MX2-V1 Dimensions 4

3G3MX2-A2055-V1
3G3MX2-A2075-V1
3G3MX2-A4055-V1
3G3MX2-A4075-V1

3G3MX2-V1 Dimensions 5

3G3MX2-A2110-V1
3G3MX2-A4110-V1
3G3MX2-A4150-V1

3G3MX2-V1 Dimensions 6

3G3MX2-A2150-V1

3G3MX2-V1 Dimensions 7

MX2-Series EtherCAT Communication Unit 3G3AX-MX2-ECT

3G3AX-MX2-ECT

3G3MX2-V1 Dimensions 9 *After the EtherCAT Communication Unit is installed, dimension D of the inverter increases by 26.4 mm.
(Dimension D of the inverter varies depending on the capacity. Refer to the MX2-series V1 type USER'S MANUAL (Cat.
No.I585))

MX2-Series CompoNet Communication Unit 3G3AX-MX2-CRT-E

3G3AX-MX2-CRT-E

3G3MX2-V1 Dimensions 11 * After the CompoNet Communication Unit is installed, dimension D of the inverter increases by 26.4 mm.
(Dimension D of the inverter varies depending on the capacity. Refer to the MX2-series V1 type USER'S MANUAL (Cat.
No.I585))

MX2-Series DeviceNet Communication Unit 3G3AX-MX2-DRT-E

3G3AX-MX2-DRT-E

3G3MX2-V1 Dimensions 13

* After the DeviceNet Communication Unit is installed, dimension D of the inverter increases by 26.4 mm.
(Dimension D of the inverter varies depending on the capacity. Refer to the MX2-series V1 type USER'S MANUAL (Cat.
No.I585))

Options

Regenerative Braking Unit 3G3AX-RBU[][]

3G3AX-RBU21/-RBU22/-RBU41

3G3MX2-V1 Dimensions 16

Braking Resistor 3G3AX-RBA/-RBB/-RBC[][][][]

3G3AX-RBA

3G3MX2-V1 Dimensions 18

3G3AX-RBB

3G3MX2-V1 Dimensions 19

3G3AX-RBC4001

3G3MX2-V1 Dimensions 20

3G3AX-RBC6001

3G3MX2-V1 Dimensions 21

3G3AX-RBC12001

3G3MX2-V1 Dimensions 22

Radio Noise Filter 3G3AX-ZCL[]

3G3AX-ZCL1

3G3MX2-V1 Dimensions 24

3G3AX-ZCL2

3G3MX2-V1 Dimensions 25

Input Noise Filter 3G3AX-NFI[][]

3G3AX-NFI21
3G3AX-NFI22

3G3MX2-V1 Dimensions 27

3G3AX-NFI25/3G3AX-NFI26
3G3AX-NFI45/3G3AX-NFI46

3G3MX2-V1 Dimensions 28

3G3AX-NFI23/3G3AX-NFI24
3G3AX-NFI41/3G3AX-NFI42
3G3AX-NFI43/3G3AX-NFI44

3G3MX2-V1 Dimensions 29

3G3AX-NFI27

3G3MX2-V1 Dimensions 30

Output Noise Filter 3G3AX-NFO[][]

3G3AX-NFO01
3G3AX-NFO02

3G3MX2-V1 Dimensions 32

3G3AX-NFO03/3G3AX-NFO04/3G3AX-NFO05

3G3MX2-V1 Dimensions 33 3G3MX2-V1 Dimensions 34

DC Reactor 3G3AX-DL[][][][]

3G3MX2-V1 Dimensions 36 3G3MX2-V1 Dimensions 37

AC Reactor 3G3AX-AL[][][][]

3G3MX2-V1 Dimensions 38

3G3AX-AL2025
3G3AX-AL2055

3G3MX2-V1 Dimensions 39

3G3AX-AL2110/3G3AX-AL2220
3G3AX-AL2330

3G3MX2-V1 Dimensions 40

3G3AX-AL4025/3G3AX-AL4055
3G3AX-AL4110

3G3MX2-V1 Dimensions 41

3G3AX-AL4220/3G3AX-AL4330

3G3MX2-V1 Dimensions 42

Digital Operator

3G3AX-OP01

3G3MX2-V1 Dimensions 44

Features | Motion Drive Inverter - 3G3MX2-V1

High starting torque and torque control capability in open loop mode give you full control of your machine dynamics and performance. Options for all of the major open network systems.

  • Delivers 200% starting torque
  • Standard industrial networks, such as EtherCAT, CompoNet or DeviceNet as options.
  • Built-in RS-485 Modbus communications
  • The PM motor conforming to high-efficiency regulations can be controlled.
  • Speed synchronization

Properties | Motion Drive Inverter - 3G3MX2-V1

Inverter3G3MX2-V1
3-phase 400 V Output : 0.4-15.0 kW
Single-phase 200V เอาต์พุต 0.1-2.2 กิโลวัตต์
  IP20
Output frequency 0.10 – 400 Hz
Input Frequency settings
RUN/STOP command
Multi-function input
Analog input
Pulse input
Output Multi-function output
Relay output
Analog output (Frequency monitor)
Pulse output

Motion Drive Inverter- 3G3MX2-V1

ดาวน์โหลดไฟล์ PDF
Motion Drive Inverter - 3G3MX2-V1
OMRON Motion Drive Inverter - 3G3MX2-V1

คุณสมบัติ | Motion Drive Inverter - 3G3MX2-V1

อินเวอร์เตอร์ที่มีแรงบิดเริ่มต้นสูงและรองรับการควบคุมแบบลูปเปิด และมีตัวเลือกระบบเน็ตเวิร์คเพื่อตอบโจทย์การควบคุมให้มีประสิทธิภาพ

  • มีแรงบิดเริ่มต้นสูงได้ถึง 200 เปอร์เซ็น
  • รองรับการเชื่อมต่อ EtherCAT หรือ DeviceNet
  • รองรับการสื่อสาร RS-485 Modbus รองรับการควบคุมด้วย PLC ผ่านโปรแกรม Function Block
  • รองรับโหมดควบคุมการประสานความเร็ว
  • รองรับโหมดควบคุมตำแหน่ง

ข้อมูลจำเพาะ | Motion Drive Inverter - 3G3MX2-V1

Inverter3G3MX2-V1
3 เฟรส 400 โวลต์ เอาต์พุต 0.4-15.0 กิโลวัตต์
1 เฟรส 220 โวลต์ เอาต์พุต 0.1-2.2 กิโลวัตต์
มาตรฐานการป้องกัน IP20
รูปแบบสัญญาณอินพุต 0.10 ถึง 400 เฮิร์ต
รูปแบบสัญญาณอินพุต การตั้งค่าความถี่
คำสั่ง Start / Stop
มัลติฟังก์ชันอินพุต
อนาล็อกอินพุต
พลัสอินพุต
รูปแบบสัญญาณเอาต์พุต มัลติฟังก์ชันเอาต์พุต
รีเลย์เอาต์พุต
อนาล็อกเอาต์พุต
พลัสเอาต์พุต

ติดต่อแผนก Automation & Robots

ติดต่อ นิวแอนด์ไฮด์ ฝ่าย Automation
ดาว์นโหลด แคตตาล็อก, สเป้กแอร์แทค
Promotion-Big Sale
ติดต่อเรา
TICTechnology Instrument
www.tic.co.th
tupackT.U Pack
www.tupack.co.th
Your LiftYour Lift
www.yourlift.co.th
