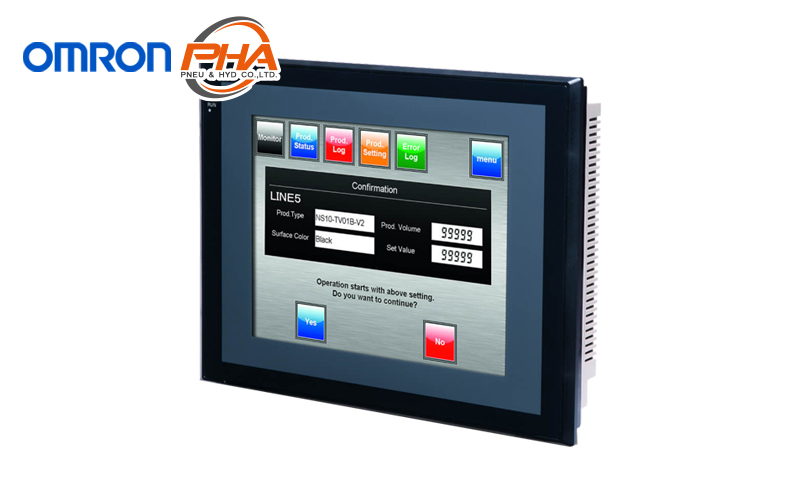

Model Numbers | HMI - NS series

International Standards

  • The standards are availabled as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus, UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.
  • Contact your OMRON representative for further details and applicable conditions for these standards.

Programmable Terminals

Product
name
SpecificationsModelStandards
Effective display
area
Number
of dots
EthernetCase color
NS5-V2 *1 5.7-inch *2
TFT color
LED backlight
320 ×
240 dots
No Ivory NS5-SQ10-V2 UC1, CE, N,
L, UL Type4
Black NS5-SQ10B-V2
Yes Ivory NS5-SQ11-V2
Black NS5-SQ11B-V2
5.7-inch *2
High-luminance
TFT color
LED backlight
No Ivory NS5-TQ10-V2
Black NS5-TQ10B-V2
Yes Ivory NS5-TQ11-V2
Black NS5-TQ11B-V2
NS8-V2 8.4-inch *2
TFT
LED backlight
640 ×
480 dots
No Ivory NS8-TV00-V2 UC1, CE, N,
L
Black NS8-TV00B-V2
Yes Ivory NS8-TV01-V2
Black NS8-TV01B-V2
NS10-V2 10.4-inch *2
TFT
LED backlight
640 ×
480 dots
No Ivory NS10-TV00-V2 UC1, CE, N,
L, UL Type4
Black NS10-TV00B-V2
Yes Ivory NS10-TV01-V2
Black NS10-TV01B-V2
NS12-V2 12.1-inch *2
TFT
LED backlight
800 ×
600 dots
No Ivory NS12-TS00-V2
Black NS12-TS00B-V2
Yes Ivory NS12-TS01-V2
Black NS12-TS01B-V2
NS15-V2 15-inch
TFT
1,024 ×
768 dots
Yes Silver NS15-TX01S-V2
Black NS15-TX01B-V2
NSH5-V2 *1
Hand-held
5.7-inch
TFT
320 ×
240 dots
No Black (Emergency
stop button: Red)
NSH5-SQR10B-V2 UC, CE
Black
(Stop button: Gray)
NSH5-SQG10B-V2

*1. As of July 2008, the image memory has been increased to 60 MB.
*2. Lot No. 15Z0 or later of NS5 color-type models, Lot No. 28X1 or later of NS8 models, Lot No. 11Y1 or later of NS10
models, Lot No. 14Z1 or later of NS12 models, Lot No. 31114K or later of NS15 models.

NS-Runtime

Product nameSpecificationsMedia Model Standards
NS-Runtime NS-Runtime Installer, PDF manual, hardware key * 1 license CD NS-NSRCL1 ---
3 licenses NS-NSRCL3
10 licenses NS-NSRCL10

Note: A hardware key (USB dongle) is required for NS-Runtime operation.

System Requirements

ItemSpecifications
OS * Windows 7 (32-bit/64-bit version)/Windows 8 (32-bit/64-bit version)/Windows 10 (32-bit/64-bit version)
CPU Celeron, 1.3 GHz or higher (Recommended)
Memory size HDD: 50 MB min., RAM: 512 MB min. (Windows 7: 1 GB min.).
50 MB is required for the Runtime alone. (An additional 280 MB is required if CX-Server is not already
installed.)

* Ver. 1.30 or later of NS Runtime do not support Windows XP (Service Pack 3 or higher) and Windows Vista.

Software

How to Select Required Support Software for Your Controller

The required Support Software depends on the Controller to connect. Please check the following table when purchasing the Support Software.

ItemOmron PLC SystemOmron Machine Automation Controller System
Controller CS, CJ, CP, and other series NJ-series and NX-series
Programmable Terminals NS-series NS-series with an Ethernet port
Software FA Integrated Tool Package CX-One Automation Software Sysmac Studio

FA Integrated Tool Package CX-One

Product
name
SpecificationsModelStand-
ards
 Number of
licenses
Media
FA Integrated
Tool Package
CX-One
Ver.4.[]
The CX-One is a comprehensive software
package that integrates Support Software
for OMRON PLCs and components.

CX-One runs on the following OS.
Windows XP (Service Pack 3 or higher,
32-bit version)/
Windows Vista (32-bit/64-bit version)/
Windows 7 (32-bit/64-bit version)/
Windows 8 (32-bit/64-bit version)/
Windows 8.1 (32-bit/64-bit version)/
Windows 10 (32-bit/64-bit version)

CX-One Version 4.[] includes CX-Designer
Ver.3.[].
For details, refer to the CX-One catalog
(Cat. No. R134)
1 license
*
DVD CXONE-AL01D-V4 ---

* Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.

Automation Software Sysmac Studio

Please purchase a DVD and required number of licenses the first time you purchase the Sysmac Studio. DVDs and licenses are available individually. Each model of licenses does not include any DVD.

Product
name
SpecificationsModelStand-
ards
 Number of
licenses
Media
Sysmac
Studio
Standard
Edition
Ver.1.[]
The Sysmac Studio provides an integrated
development environment to set up, program,
debug, and maintain NJ/NX Series CPU Units,
NY-series Industrial PC, Controllers and other
Machine Automation Controllers, as well as
EtherCAT slaves.

Sysmac Studio runs on the following OS.
Windows 7 (32-bit/64-bit version)/
Windows 8 (32-bit/64-bit version)/
Windows 8.1 (32-bit/64-bit version)/
Windows 10 (32-bit/64-bit version) *1

The Sysmac Studio Standard Edition DVD
includes Support Software to set up
EtherNet/IP Units, DeviceNet slaves, Serial
Communications Units, and Support Software
for creating screens on HMIs (CX-Designer).
Refer to your OMRON website for details.
-
(Media only)
Sysmac
Studio
(32-bit)
DVD
SYSMAC-SE200D ---
-
(Media only)
Sysmac
Studio
(64-bit)
DVD
SYSMAC-SE200D-64 ---
1 license
*2
--- SYSMAC-SE201L ---

Note: To connect the NJ5 Controller, NS system version 8.5 or higher is required. CX-Designer version 3.3 or higher is
also required.
To connect the NJ1/NJ3 Controller, NS system version 8.61 or higher is required. CX-Designer version 3.4 or higher
is also required.
To connect the NX7 Controller, NS system version 8.9 or higher is required. CX-Designer version 3.64 or higher is
also required.
To connect the NX1 controller, NS system version 8.96 or higher is required. CX-Designer version 3.70 or higher is
also required.
To connect the NX1P controller, NS system version 8.93 or higher is required. CX-Desiner version 3.70 or higher is
also required.
*1. Model "SYSMAC-SE200D-64" runs on Windows 10 (64 bit).
*2. Multi licenses are available for the Sysmac Studio (3, 10, 30, or 50 licenses).

Cable

Product nameSpecificationsModelStand-
ards
Cable
*1
155_lu_7_1 Screen transfer cable for DOS/V
(CX-Designer ↔ PT)
Length: 2 m XW2Z-S002 ---
USB-Serial Conversion Cable Length: 0.5 m CS1W-CIF31 N
USB relay cable Length: 1 m NS-USBEXT-1M ---
NSH5 Cables RS-422A cable (loose wires + D-Sub 9-pin) Length: 10 m NSH5-422CW-10M
RS-232C cable (loose wires + D-Sub 9-pin) Length: 3 m NSH5-232CW-3M
RS-232C cable (loose wires + D-Sub 9-pin) Length: 10 m NSH5-232CW-10M
UL-compliant NSH5
Cable
RS-422A cable (loose wires) Length: 10 m NSH5-422UL-10M CU
RS-232C cable (loose wires + relay cable) Length: 3 m NSH5-232UL-3M
RS-232C cable (loose wires + relay cable) Length: 10 m NSH5-232UL-10M
PT-to-PLC
Connecting Cable *2
PT connection: 9 pins
PLC connection: 9 pins
Length: 2 m XW2Z-200T ---
Length: 5 m XW2Z-500T
PT connection: 9 pins
PLC peripheral port
Length: 2 m XW2Z-200T-2
Length: 5 m XW2Z-500T-2
NSH5 Removable Box
Cable
RS-232C Cable (connectors) Length: 3 m NSH5-232CN-3M
Length: 10 m NSH5-232CN-10M
NSH5 Removable Box --- NSH5-AL001
NSH5 Wall-mounting
Bracket
--- NSH5-ATT02
NSH5 Visor --- NSH5-ATT01

*1. Use a standard USB Type A male to Type B type male Cable to connect the NS series PT to a personal computer
(CX-Designer).
We recommend that you use a USB cable with a ferrite core attached to ensure stable communications.
(Examples: FH-VUAB from OMRON and U2C-BF series (US2-BF[][]BK) from ELECOM as of February 2016)
Use a standard USB cable to connect the NS series PT to a PictBridge-compatible printer. USB cable type depends
on the printer.
*2. To connect the NS series PT to NJ series Controller, using a commercially available 10/100-BASE-TX twisted-pair
cable.
For detail, refer to the NS series SETUP MANUAL (Cat. No.V083).

Options

Product nameSpecificationsModelStand-
ards
Video
Input
Unit
155_lu_8_1 Inputs: 4 channels
Signal type: NTSC/PAL
NS-CA001 UC1, CE
155_lu_8_2 Input channels: 2 video channels and 1 RGB channel *1
Signal type: NTSC/PAL
NS-CA002
Controller
Link
Interface
Unit
155_lu_8_3 For Controller Link Communications NS-CLK21 UC1, CE
RS-422A
Adapter
155_lu_8_4 Transmission distance: 500 m total length
Note: Use this model when connecting PT models without
a V[] suffix.
Note: PT models with the V[] suffix can also be connected.
NS-AL002 ---
155_lu_8_5 Transmission distance: 50 m total length
Note:
Only PT models with a suffix of V[] are connectable.
Use the NS-AL002 to connect models without a V[] suffix.
CJ1W-CIF11 UC1, N,
L, CE
Sheet/
Cover
*2
155_lu_8_6 Anti-reflection Sheets
(5 surface sheets)
NS15 NS15-KBA04 ---
NS12/10 NS12-KBA04
NS8 NS7-KBA04
NS5 NT30-KBA04
Protective Covers (5 pack)
(anti-reflection coating)
NS12/10 NS12-KBA05
NS8 NS7-KBA05
NS5 NT31C-KBA05
Protective Covers (1 cover included)
(Transparent)
NS15 NS15-KBA05N
Protective Covers (5 covers included)
(Transparent)
NS12/10 NS12-KBA05N
NS8 NS7-KBA05N
NS5 NT31C-KBA05N
Attachment NT625C/631/631C Series to NS12/10 Series NS12-ATT01
NT625C/631/631C Series to NS12/NS10 Series (Black) NS12-ATT01B
NT610C Series to NS12/10 Series NS12-ATT02
NT620S/620C/600S Series to NS8 Series NS8-ATT01
NT600M/600G/610G/612G Series to NS8 Series NS8-ATT02
Memory
Card
155_lu_8_7 128 MB HMC-EF183
256 MB HMC-EF283
512 MB HMC-EF583
Memory Card Adapter --- HMC-AP001 CE
Replacement Battery Battery life: 5 years (at 25°C) CJ1W-BAT01 ---
Bar Code Reader *3 CCD handheld bar code reader (RS-232C interface) V520-RH21-6

*1. One screen cannot display two video inputs simultaneously.
*2. A Chemical-resistant Cover (NT30-KBA01) is available only for the NS5.
*3. Bar Code Reader (V520-RH21-6) was discontinued at the end of August 2016.

Specifications | HMI - NS series

General Specifications

NS5/NS8/NS10/NS12/NS15

SeriesNS5-V2NS8-V2NS10-V2NS12-V2NS15-V2
Rated power supply
voltage
24 VDC
Allowable voltage range 20.4 to 27.6 VDC (24 VDC ± 15%)
Power consumption 15 W max. 25 W max. 45 W max.
Ambient operating
temperature
0 to 50 °C
Note:
The ambient operating temperature is subject to the following restrictions according to the
mounting angle.
Mounting angle of 0 to 30° to the horizontal:
When no Expansion Units are mounted, the operating temperature range is 0 to 45 °C.
When a Video Input Unit or a Controller Link Interface Unit is mounted, the ambient
operating temperature is 0 to 35 °C.
Mounting angle of 30 to 90 ° to the horizontal: Operating temperature range of 0 to 50 °C 155_sp_1_1
Storage temperature -20 to 60 °C *1
Ambient operating
humidity
35 to 85% (0 to 40 °C), 35 to 60% (40 to 50 °C) (with no condensation)
Operating environment No corrosive gases.
Noise immunity Conforms to IEC61000-4-4, 2 kV (power lines).
Vibration resistance
(during operation)
10 to 57 Hz, 0.075 mm amplitude, 57 to 150 Hz, 9.8
m/s2 30 min each in X, Y, and Z directions
5 to 8.4 Hz, 3.5 mm single amplitude,
8.4 to 150 Hz, 9.8 m/s2 10 min times
each in X, Y, and Z directions
Shock resistance
(during operation)
147 m/s2 3 times each in direction of X, Y, and Z
Weight 1.0 kg max. 2.0 kg max. 2.3 kg max. 2.5 kg max. 4.2 kg max.
Degree of protection Front operating panel: IP65 oil-proof type and NEMA4 UL type 4. *2
May not be applicable in locations with long-term exposure to oil.
Ground Ground to 100 Ω or less.
Battery life 5 years (at 25 °C): Replace battery within 5 days after the battery runs low (indicator lights
orange).
Applicable standards Certified for conformance to UL 508, UL 1604, EMC Directive, NK, and LR Standards.

*1. Operate the PT within the temperature and humidity ranges shown in the right diagram.
*2. Support for NS5, NS10, NS12 and NS15.

NS Series Specifications 3

NSH5 Hand-held PT

SeriesNSH5-V2
Type5.7-inch Color TFT (Hand-held Version)
Case color Black
Built-in Ethernet port No
Model NSH5-SQR10B-V2 (Emergency stop button:
Red)
NSH5-SQG10B-V2 (Stop button: Gray)
Rated power supply voltage 24 VDC
Allowable voltage range 20.4 to 27.6 VDC (24 VDC ±15%)
Power consumption 10 W max.
Ambient operating
temperature
0 to 40°C
Storage temperature -20 to 60°C
Ambient operating humidity 35% to 85% (0 to 40°C) with no condensation
Operating environment No corrosive gases.
Noise immunity Common mode: 1,000 Vp-p (between power supply terminals and panel)
Normal mode: 300 Vp-p
Pulse width: 100 ns to 1 μs, Rise time: 1-ns pulse
Vibration resistance
(during operation)
10 to 57 Hz, 0.075 mm amplitude, 57 to 150 Hz, 9.8 m/s2 30 min each in X, Y, and Z
directions
Shock resistance
(during operation)
147 m/s2 3 times each in direction of X, Y, and Z
Weight 1 kg max.
Degree of protection Equivalent to IP65.
Ground Ground to 100 Ω or less.
Battery life 5 years (at 25°C): Replace battery within 5 days after the battery runs low (indicator
lights orange).
Applicable standards Certified for conformance to UL 508, EMC Directive, and EN 60204-1.

Performance/Specifications

NS5

SeriesNS5-V2
ModelNS5-
SQ10-
V2
NS5-
SQ11-
V2
NS5-
SQ10B-
V2
NS5-
SQ11B-
V2
NS5-
TQ10-
V2
NS5-
TQ11-
V2
NS5-
TQ10B-
V2
NS5-
TQ11B-
V2
Built-in Ethernet port No Yes No Yes No Yes No Yes
Case color Ivory Black Ivory Black
Display device TFT color LCD Color High-luminance TFT *1
Effective display area Width 117.2 × height 88.4 mm (5.7 inches)
Display colors 256 colors
Number of dots 320 dot horizontal × 240 dot vertical
View angle Left/right: 80 ° , Top: 80 ° , Bottom: 60 °
Screen data capacity 60 Mbytes
Image data (BMP or JPG images) 32,768 colors
Memory Card Supported
Ladder Monitor function Not supported
Video Input Unit support Not supported
Controller Link Interface Unit
(Wired) support
Not supported
Backlight
*2
Service life *3 75,000 hours min.
Brightness
adjustment
Three-level or 32-level brightness adjustment from the touch panel screen. *4
Backlight error
detection *5
Error is detected automatically, and the RUN indicator flashes green as notification.
Touch
panel
(matrix
type)
Method Matrix resistive membrane type
Number of switches/
resolution
300 (20 horizontal × 15 vertical) 16 × 16 dots for each switch
Input Pressure-sensitive
Service life 1,000,000 touch operations.
Display
text
Labels Can be specified in CX-Designer. Font, style, and size can be specified.
Numerals, alarms,
and character
strings
Scalable Gothic: Magnification: 6 to 255 points
Rough: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8
Standard: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8
Fine: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8
7-segment display: Can display only numerals, dates, and times.
Supported languages
(42 languages)
Scalable Gothic, rough, standard, and fine can be used for 42 languages.
Japanese, simplified Chinese, traditional Chinese, Korean, English, French,
German, Italian, Portuguese, Spain, Swedish, Dutch, Finnish, Norwegian, Basque,
Catalan, Danish, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Slovak,
Slovenian, Bulgarian, Belarusian, Russian, Serbian, Macedonian, Ukrainian,
Georgian, Icelandic, Afrikaans, Faroese, Indonesian, Greek, Turkish, Estonian,
Latvian, Lithuanian, Thai (supported only with scalable Gothic font)
Text
attributes
Color 256 colors
Font style (only
when vector font is
specified)
Bold or italic
Vertical alignment Top, center, or bottom
Horizontal alignment Left-justified, centered, or right-justified
FlickerObjects supporting
flicker
Functional objects: Select from up to 10 types of registered flicker settings. The
flicker speed and flicker range can be set.
Fixed objects: Select from three flicker types.
Numeral units and scale settings 1.000 max.
Alarm/event settings 5,000 max.
Expansion interface For Expansion Interface Units
(Beginning with units produced in Feb. 2018, connectors are not mounted)

*1. NS5-TQ series (high luminance TFT) luminance is better than that of NS5-SQ series by about 110 cd/m2.
*2. Contact your nearest OMRON representative to replace the backlight.
*3. This is the estimated time before brightness is reduced by half at room temperature and humidity. It is not a
guaranteed value.
The service life will be dramatically shortened if PT is used at low temperatures. For example, using the PT at
temperatures of 0°C will reduce the service life to approximately 10,000 hours (reference value).
*4. Lot No. 15Z0 or later of NS5 models.
*5. This function does not indicate that the service life has been reached. It detects when the backlight is not lit due to a
disconnection or other errors.
Backlight error detection indicates that all backlights (2) are OFF.

NS8/NS10/NS12/NS15

SeriesNS8-V2NS10-V2
ModelNS8-
TV00-
V2
NS8-
TV01-
V2
NS8-
TV00B-
V2
NS8-
TV01B-
V2
NS10-
TV00-
V2
NS10-
TV01-
V2
NS10-
TV00B-
V2
NS10-
TV01B-
V2
Built-in Ethernet port No Yes No Yes No Yes No Yes
Case color Ivory Black Ivory Black
Display device High-definition TFT color LCD High-definition TFT color LCD
Effective display area Width 170.9 × height 128.2 mm (8.4
inches)
Width 215.2 × height 162.4 mm (10.4
inches)
Display colors 256 colors
Number of dots 640 dot horizontal × 480 dot vertical
View angle Left/right: 80°, Top: 80°,
Bottom: 60° *3
Left/right: 70°, Top: 65°,
Bottom: 65° *3
Screen data capacity 60 Mbytes
Image data (BMP or JPG images) 32,768 colors
Memory Card Supported
Ladder Monitor function Supported
Video Input Unit support Supported (Image displayed via video input is 260,000 colors)
Controller Link Interface Unit
(Wired) support
Not supported Supported
Backlight
*1
Service life *2 50,000 hours min.
Brightness
adjustment
Three-level or 32-level brightness adjustment from the touch panel screen. *3
Backlight error
detection *4
Error is detected automatically, and the RUN indicator flashes green as notification.
Touch
panel
(matrix
type)
Method Matrix resistive membrane type
Number of switches/
resolution
768 (32 horizontal × 24 vertical)
20 × 20 dots for each switch
1,200 (40 horizontal × 30 vertical)
16 × 16 dots for each switch
Input Pressure-sensitive
Service life 1,000,000 touch operations.
Display
text
Labels Can be specified in CX-Designer. Font, style, and size can be specified.
Numerals, alarms,
and character
strings
Scalable Gothic: Magnification: 6 to 255 points
Rough: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8
Standard: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8
Fine: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8
7-segment display: Can display only numerals, dates, and times.
Supported languages
(42 languages)
Scalable Gothic, rough, standard, and fine can be used for 42 languages.
Japanese, simplified Chinese, traditional Chinese, Korean, English, French,
German, Italian, Portuguese, Spain, Swedish, Dutch, Finnish, Norwegian, Basque,
Catalan, Danish, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Slovak,
Slovenian, Bulgarian, Belarusian, Russian, Serbian, Macedonian, Ukrainian,
Georgian, Icelandic, Afrikaans, Faroese, Indonesian, Greek, Turkish, Estonian,
Latvian, Lithuanian, Thai (supported only with scalable Gothic font)
Text
attributes
Color 256 colors
Font style (only
when vector font is
specified)
Bold or italic
Vertical alignment Top, center, or bottom
Horizontal alignment Left-justified, centered, or right-justified
FlickerObjects supporting
flicker
Functional objects: Select from up to 10 types of registered flicker settings. The
flicker speed and flicker range can be set.
Fixed objects: Select from three flicker types.
Numeral units and scale settings 1.000 max.
Alarm/event settings 5,000 max.
Expansion interface For Expansion Interface Units
SeriesNS12-V2NS15-V2
ModelNS12-
TS00-V2
NS12-
TS01-V2
NS12-
TS00B-
V2
NS12-
TS01B-
V2
NS15-
TX01S-V2
NS15-
TX01B-V2
Built-in Ethernet port No Yes No Yes Yes Yes
Case color Ivory Black Silver Black
Display device High-definition TFT color LCD High-definition TFT color LCD
Effective display area Width 246.0 × height 184.5 mm (12.1 inches) Width 304.1 × height 228.1 mm
(15 inches)
Display colors 256 colors
Number of dots 800 dot horizontal × 600 dot vertical 1,024 dot horizontal × 768 dot
vertical
View angle Left/right: 80°, Top: 80°, Bottom: 80° *3 Left/right: 80 °, Top: 70 °,
Bottom: 60 °
Screen data capacity 60 Mbytes
Image data (BMP or JPG images) 32,768 colors
Memory Card Supported
Ladder Monitor function Supported
Video Input Unit support Supported (Image displayed via video input is
260,000 colors)
(Only RGB input is enabled.)
Controller Link Interface Unit
(Wired) support
Supported
Backlight
*1
Service life *2 50,000 hours min.
Brightness
adjustment
Three-level or 32-level brightness adjustment from the touch panel screen. *3
Backlight error
detection *4
Error is detected automatically, and the RUN indicator flashes green as
notification.
Touch
panel
(matrix
type)
Method Matrix resistive membrane type Analog resistive membrane
type *5
Number of switches/
resolution
1,900 (50 horizontal × 38 vertical)
16 × 16 dots for each switch
Resolution: 1,024 (horizontal) ×
1,024 (vertical)
Input Pressure-sensitive
Service life 1,000,000 touch operations.
Display
text
Labels Can be specified in CX-Designer. Font, style, and size can be specified.
Numerals, alarms,
and character
strings
Scalable Gothic: Magnification: 6 to 255 points
Rough: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8
Standard: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8
Fine: Magnification: 1 × 1, 1 × 2, 2 × 1, 2 × 2, 3 × 3, 4 × 4, 8 × 8
7-segment display: Can display only numerals, dates, and times.
Supported languages
(42 languages)
Scalable Gothic, rough, standard, and fine can be used for 42 languages.
Japanese, simplified Chinese, traditional Chinese, Korean, English, French,
German, Italian, Portuguese, Spain, Swedish, Dutch, Finnish, Norwegian, Basque,
Catalan, Danish, Albanian, Croatian, Czech, Hungarian, Polish, Romanian, Slovak,
Slovenian, Bulgarian, Belarusian, Russian, Serbian, Macedonian, Ukrainian,
Georgian, Icelandic, Afrikaans, Faroese, Indonesian, Greek, Turkish, Estonian,
Latvian, Lithuanian, Thai (supported only with scalable Gothic font)
Text
attributes
Color 256 colors
Font style (only
when vector font is
specified)
Bold or italic
Vertical alignment Top, center, or bottom
Horizontal alignment Left-justified, centered, or right-justified
FlickerObjects supporting
flicker
Functional objects: Select from up to 10 types of registered flicker settings. The
flicker speed and flicker range can be set.
Fixed objects: Select from three flicker types.
Numeral units and scale settings 1.000 max.
Alarm/event settings 5,000 max.
Expansion interface For Expansion Interface Units

*1. Contact your nearest OMRON representative to replace the backlight.
*2. This is the estimated time before brightness is reduced by half at room temperature and humidity. It is not a
guaranteed value.
The service life will be dramatically shortened if PT is used at low temperatures. For example, using the PT at
temperatures of 0 °C will reduce the service life to approximately 10,000 hours (reference value).
*3. Lot No. 28X1 or later of NS8 models, Lot No. 11Y1 or later of NS10 models, Lot No. 14Z1 or later of NS12 models,
Lot No. 31114K or later of NS15 models.
*4. This function does not indicate that the service life has been reached. It detects when the backlight is not lit due to a
disconnection or other errors.
Backlight error detection indicates that all backlights (2) are OFF.
*5. An analog touch panel is used with the NS15. Do not press the touch panel in two or more places simultaneously.
If the touch panel is pressed in two or more places simultaneously, it may activate a switch between the points that
are pressed.

Communications

NS5/NS8/NS10/NS12/NS15

Memory CardInterface One ATA-Compact Flash interface slot
Functions Used to transfer and store screen data, store logging data, and store history data.
(Alarm/Event History, Operation Log, and Error Log generated during Macro
execution).
Serial
Commu-
nications
Port AConnector Conforms to EIA RS-232C. D-Sub female 9-pin connector 5-V output (250 mA
max.) through pin 6.
The 5-V outputs of serial ports A and B cannot be used at the same time.
Functions Host (PLC) access:
1:N NT Links (connections with CS/CJ/CP-series PLCs and C200HX/HG/HE(-Z)
PLCs),
1:1 NT Links, or Host Link (connections with C Series or CVM1/CV-series PLCs)
Direct access to Temperature Controllers using Smart Active Parts:
CompoWay/F and bar code reader connections (Read directly from display.)
Port BConnector Conforms to EIA RS-232C. D-Sub female 9-pin connector. 5-V output (250 mA
max.) through pin 6.
The 5-V outputs of serial ports A and B cannot be used at the same time.
Functions Host (PLC) access:
1:N NT Links (connections with CS/CJ/CP-series PLCs and C200HX/HG/HE(-Z)
PLCs) or
1:1 NT Links (connections with C Series or CVM1/CV-series PLCs)
Direct access to Temperature Controllers using Smart Active Parts:
CompoWay / F and bar code reader connections (Read directly from display.)
USB SLAVE
Specifications
USB rating USB1.1
Connector TYPE-B (Slave)
Functions Connection with the CX-Designer (for screen data transfers) Connecting to a
PictBridge-compatible Printer
Recommended printers:
EPSON: PM-G4500, PX-G5300, PX-5600, EP-901F
Canon: PIXUS MX7600, PIXUS iP100, PIXUS iX5000
USB HOST
Specifications *1
USB rating USB1.1
Connector TYPE-A (Host)
Functions Connection with a printer (for hard copies)
Recommended printers: EPSON: PX-G930
Built-in Ethernet
Specifications *2
Conformance
standards
Conforms to IEEE 802.3/Ethernet (10 Base-T/100 Base-TX).
Functions Host (PLC) access and connection with the CX-Designer (for screen data
transfers)
Controller Link
(Wired-type)
Specifications *3
Baud rate 2 M/1 M/500 K bps
Transmission
path
Shielded twisted-pair cable (special cable)
Functions Host (PLC) access and data links
Video Input
Specifications *4
Resolution NS-CA001: 320×240, 640×480, 800×600 dots
NS-CA002: User-defined size
Input signal NS-CA001: NTSC composite video or PAL
NS-CA002: NTSC composite video or PAL
Number of
video inputs
NS-CA001: Number of cameras: 4 max.
NS-CA002: 2 cameras + RGB

*1. Except NS5.
*2. NS[]-[][][]1-V2 only.
*3. Except NS5 and NS8.
*4. Except NS5 and NS15. NS15 provides RGB input. (NS-CA002)

Dimensions | HMI - NS series

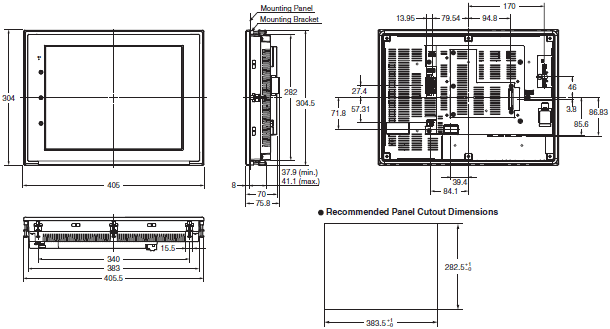

NS15

NS Series Dimensions 2 NS15_Dim

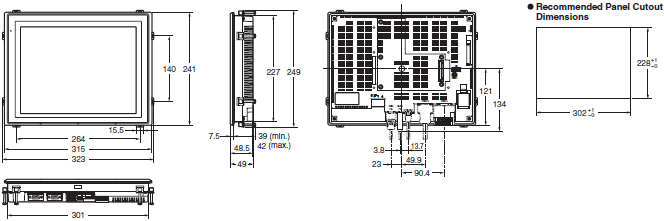

NS12/10

NS Series Dimensions 4 NS12/10_Dim

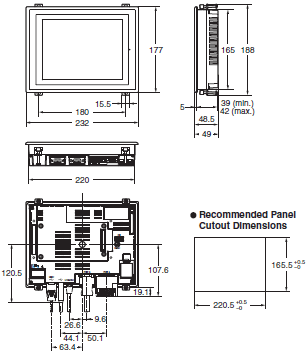

NS8

NS Series Dimensions 5 NS8_Dim

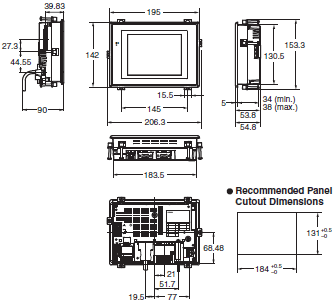

NS5

NS Series Dimensions 6 NS5_Dim

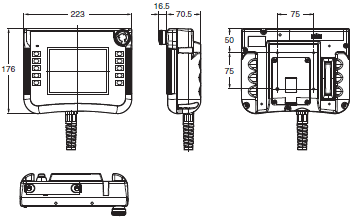

Hand-held NS5

NS Series Dimensions 8 Hand-held NS5_Dim

NS-CA001
Video Input Unit

NS Series Dimensions 9 NS-CA001_Dim

NS-CA002
Video Input Unit

NS Series Dimensions 10 NS-CA002_Dim

NS-CLK21
Controller Link Interface Unit

NS Series Dimensions 12 NS-CLK21_Dim

Features | HMI - NS series

The Omron NS-Series family provides an amount of work and cost of connecting to OMRON PLCs and components have been greatly reduced. The results is an incredible range of features that is possible only when unifying to one manufacturer.

  • The Best match possible with Omron PLC.
  • The machine designer can easily implement PLC troubleshooting
  • Proven Reliability
  • Multi-language support
  • Plentiful Graphing Function
  • Screen data security function

Properties | HMI - NS series

HMINS series
Graphics Graphics color
monitor touch screen
Memory 128 KWord
Resolution 15 " 1024 × 768 pixel
12.1 " 800 × 600 pixel
8.4 " 640 x 480 pixel
5.7 " 320 × 240 pixel

HMI - NS series

ดาวน์โหลดไฟล์ PDF
HMI - NS series
OMRON HMI - NS series

คุณสมบัติ | HMI - NS series

HMI ตระกูล NS ช่วยลดปริมาณงานและต้นทุนในการเชื่อมต่อกับ OMRON PLC และส่วนประกอบต่างๆ ได้อย่างมาก ผลลัพธ์ที่ได้คือคุณสมบัติพิเศษเมื่อใช้กับสินค้าบริษัทเดียวกัน

  • ทำงานรวมกันได้ดีกับพีแอลซี Omron
  • ง่ายในการเพิ่มฟังก์ชั่นการตรวจสอบข้อผิดพลาดในการออกแบบเครื่องจักร
  • เพิ่มความหน้าเชื่อถือ
  • รองรับหลายภาษา
  • รองรับการสร้างกราฟที่หลากหลาย
  • รองรับการเพิ่มฟังก์ชันรักษาความปลอดภัยให้แก่ข้อมูล

ข้อมูลจำเพาะ | HMI - NS series

HMINS series
แสดงผล กราฟิกสี
หน้าจอ หน้าจอสัมผัส
ความจุข้อมูล 128 KWord
ความละเอียด 15 นิ้ว 1024 × 768 pixel
12.1 นิ้ว 800 × 600 pixel
8.4 นิ้ว 640 x 480 pixel
5.7 นิ้ว 320 × 240 pixel

ติดต่อแผนก Automation & Robots

ติดต่อ นิวแอนด์ไฮด์ ฝ่าย Automation
ดาว์นโหลด แคตตาล็อก, สเป้กแอร์แทค
Promotion-Big Sale
ติดต่อเรา
TICTechnology Instrument
www.tic.co.th
tupackT.U Pack
www.tupack.co.th
Your LiftYour Lift
www.yourlift.co.th
