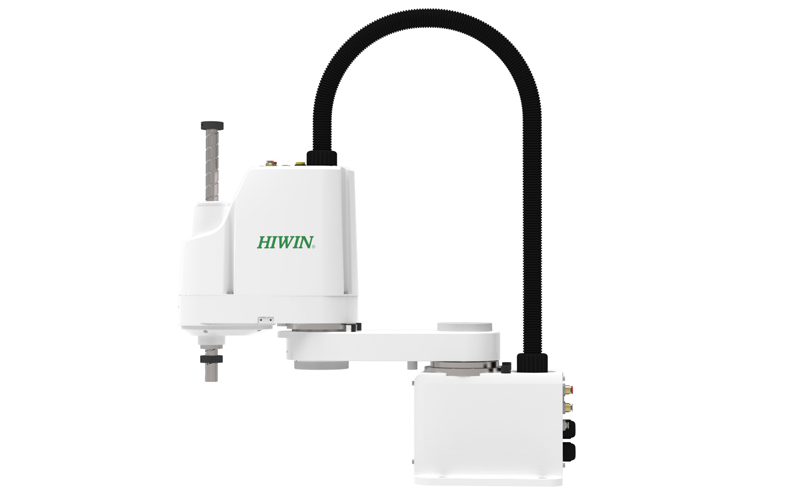

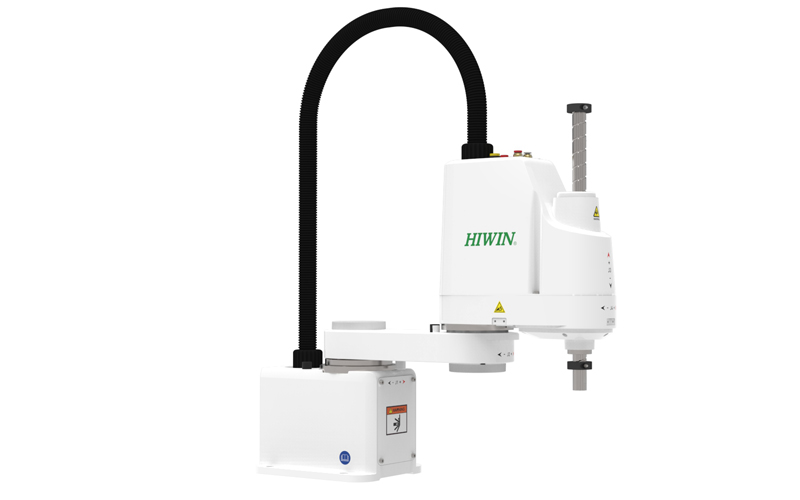

HIWIN Robot Multi Axis SCARA RS405-400-200-LU

Possessing high precision and flexibility, a rotary axis can be added to the joint-end to increase the degree of freedom. Different end-effectors can be incorporated to achieve high precision assembly or rapid planar machining. Applications Loading/unloading, packaging, arranging, assembly, dispensing, stacking and inspection

แขนหุ่นยนต์ไฮวิน Scara Robot RS405-400-200-LU

---

Specification Code

• Series RS405 : SCARA Robot with 5kg Payload
• Maximum Reach Radius 400 : Total Arm Length 400mm
• J3 Working Range 200 : 200mm Ball Spline
• Identification Code LU : Series

---

Specifications | Scara Robot RS405-400-200-LU

MODEL		Unit	Specification
Model Name		-	RS405-400-200-LU
Installation		-	Floor
Degrees of Freedom		axis	4
Rated Payload		kg	2
Maximun Payload			5
Arm Length	J1+J2	mm	400 mm
	J1		225 mm
	J2		175 mm
Maximum Motion Range	J1	deg	±130
	J2		±130
	J3	mm	200/400
	J4	deg	±360
Repeatability	J1+J2	mm	±0.02
	J3	mm	±0.01
	J4	deg	±0.01
Protection Rating		-	IP20
Applicable Controller		-	RC4
