HIWIN Robot Multi Axis RT610-1672-GB

ความสามารถที่รับโหลดได้สูงและรัศมีการเคลื่อนที่หลากหลายนำไปใช้งานในด้าน ใช้งานหุ่นยนต์ในโรงงานอุตสาหกรรม เพื่อลดจำคนต่องาน เช่น งานหยิบเข้าหยิบออก, บรรจุภัณฑ์, ประกอบ, งานลบคม, งานขัด, งานแยกชิ้นส่วน, งานจัดเรียงตำแหน่งเดิม, งานสุ่มตรวจ QC

แขนหุ่นยนต์ Articulated Robot RT610-1672-GB

HIWIN Robot RT610-1672-GB
HIWIN Robot Multi Axis RT610-1672-GB

Feature | Articulated Robot RA610-1672-GB

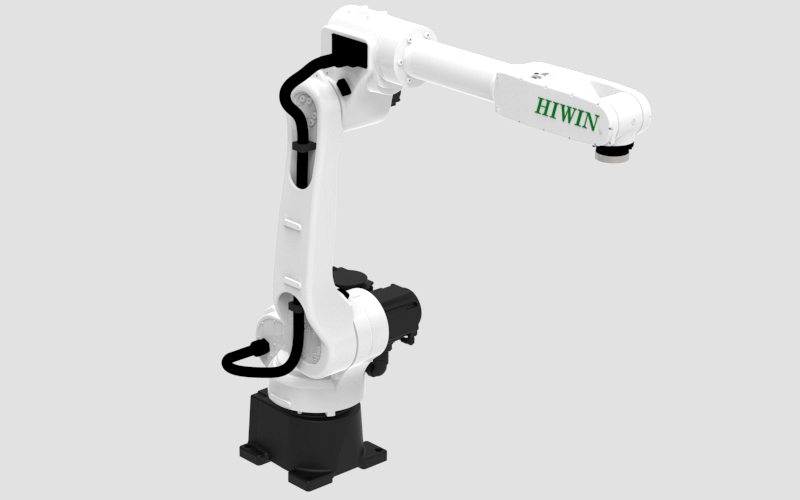

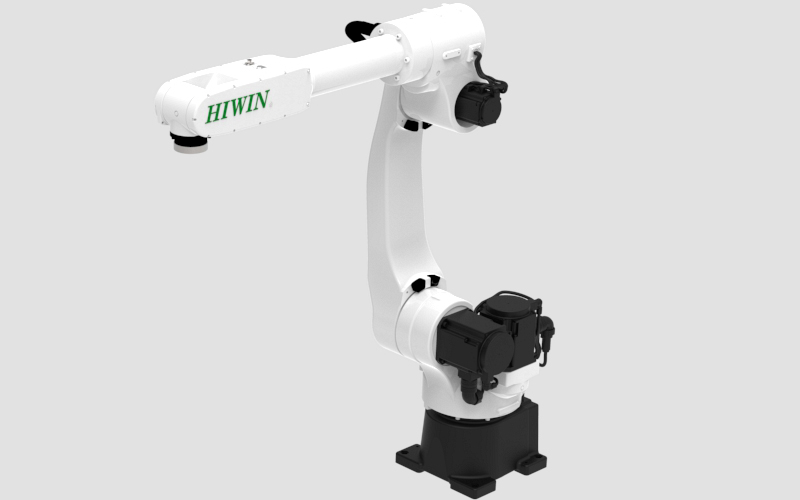

Articulated robot RT610-1672-GB with 10kg payload and 1672mm max. motion radius is able to help people to do complex jobs such as dirty, difficult and dangerous jobs by utilizing its high degrees of freedom and high agility features.

It provides best functions for various automation application such as workpiece loading/unloading, deburring and assembly.


Specification Code

  • RT610 (IP32) : RCT610 คอนโทรลเลอร์หุ่นยนต์ 6 แกน IP 20
  • ระยะยืดแขนที่หุ่นยนต์ทำได้ : 1672 mm
  • รหัสการรับรอง : N/A
  • รหัสประจำตัวของรุ่นหุ่นยนต์ : GB version

Specifications | ARTICULATED RT610-1672-GB

MODELRT610-GB
จำนวนแกนของหุ่นยนต์ 6
น้ำหนักหุ่นยนต์รับได้มากสุด (kg) 10
ระยะที่หุ่นยนต์ทำได้มากสุด (mm) 1672
ช่วงการทำงานแต่ละแกนที่หุ่นยนต์ทำได้ (°) J1 ±170
J2 +95 ถึง -150
J3 +185 ถึง -85
J4 ±190
J5 ±135
J6 ±360
ความละเอียดตำแหน่งเดิม (mm) ±0.06
รอบเวลา (s)*Note1 1
น้ำหนักหุ่นยนต์ (kg) 150
ระดับมาตราฐานป้องกันปุ่นยนต์ IP32
คอลโทรลเลอร์หุ่นยนต์ RCT610-GB

*Note 1 : ขึ้นอยู่กับการเคลื่อนที่ไปมาระหว่าง แยวตั้ง 25 mm แนวนอน 300 mm

โมเดล/ขนาดVAVBVCVDVEVFVGVHVIVJVKVLVM
RT610-1672-GB 1392 1672 1981 998 R892 500 878 R1532 R323 R951 164.7° 105.3° R463

Unit : mm
