HIWIN Datorker Robot Reducer - WTI-PH Type

DATORKER (DT) - Robot Reducer has the characteristics of high precision, high efficiency, high torsional rigidity and low starting torque.

Datorker Robot Reducer - WTI-PH Type

HIWIN Datorker Robot Reducer WTI-PH
HIWIN Datorker Robot Reducer - WTI-PH

It is widely used in robots, automation equipment, semiconductor equipment, machine tools and other industries. HIWIN has developed various specifications and reduction ratios to provide customers with wide range of choice. HIWIN is able to provide customized services to meet customers various design and requirement.


Feature | Datorker Robot Reducer - WTI-PH

  • Compact design and light weight : Easy assembly
  • High Torque : Used in wide range of robotic automation and testing equipment.
  • High Precision : Offers stable positioning and repeatability accuracy.
  • High Speed : Offers various reduction ratio options for the same size.
  • Customization : Offers customized solution to meet customer requirement.

Application | Datorker Robot Reducer - WTI-PH

  • Input hollow shaft design
  • Withstand axial and radial load.

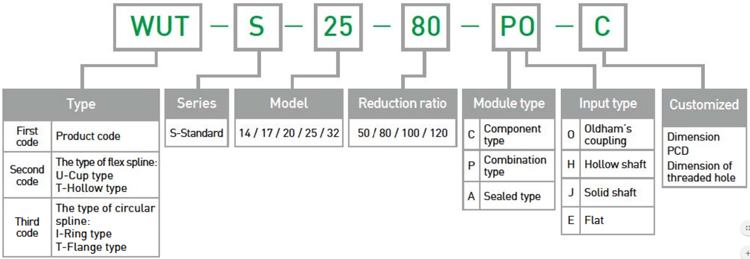

Specifications Code | Datorker Robot Reducer - WTI-PH

Datorker Robot WTI-PH


Specifications | Datorker Robot Reducer - WTI-PH

Model/ItemsReduction RatioRated torque at input 2000r/minPeak torque at start/stopInstantaneous permissible max. torque
NmkgfmBmkgfmNmkgfm
14 50 5.4 0.55 18 1.8 35 3.6
80 7.8 0.8 23 2.4 47 4.8
100 7.8 0.8 28 2.9 54 5.5
17 50 16 1.6 34 3.5 70 7.1
80 22 2.2 43 4.4 87 8.9
100 24 2.4 54 5.5 108 11
120 24 2.4 54 5.5 86 8.8
20 50 25 2.5 56 5.7 98 10
80 34 3.5 74 7.5 127 13
100 40 4.1 82 8.4 147 15
120 40 4.1 87 8.9 147 15
25 50 39 4 98 10 186 19
80 63 6.4 137 14 255 26
100 67 6.8 157 16 284 29
120 67 6.8 167 17 304 31
32 50 76 7.8 216 22 382 39
80 118 12 304 31 568 58
100 137 14 333 34 647 66
120 137 14 353 36 686 70

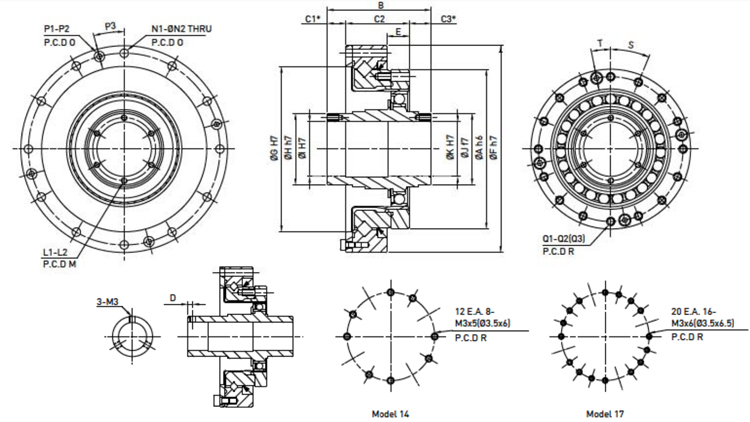

Model Specifications | Datorker Robot Reducer - WTI-PH

Datorker WTI-PH

Model1417202532
ØA h6 50 60 70 85 100
B 52.5 0-0.1 56.5 0-0.1 51.5 0-0.1 55.5 0-0.1 65.5 0-0.1
C1* 16 +0.80 16 +0.90 9.5 +1.00 10 +1.10 12 +1.10
C2 23.5 26.5 29 34 42
C3* 13 14 13 11.5 11.5
D 2.5 2.5 - - -
E 7 7.5 8.5 12 15
ØD h7 70 80 90 110 142
ØG H7 48 60 70 88 114
ØH h7 20 25 30 38 45
ØI H7 14 19 21 29 36
ØJ f7 20 25 30 38 45
ØK H7 14 19 21 29 36
L1 3 3 2x6 2x6 2x6
L2 M3 M3 M3xDP6 M3xDP6 M3xDP6
M (P.C.D) - - 25.5 33.5 40.5
N1 8 12 12 12 12
ØN2 3.5 3.5 3.5 4.5 5.5
O (P.C.D) 64 74 84 102 132
P1 2 4 4 4 4
P2 M3 M3 M3 M3 M4
P3 (degree) 22.5° 15° 15° 15° 15°
Q1 12 E.A. 8 20 E.A. 16 16 16 16
Q2 M3xDP5 M3xDP6 M3xDP6 M4xDP7 M5xDP8
Q3 Ø3.5xDP6 Ø3.5xDP6.5 Ø3.5xDP7.5 Ø4.5xDP10 Ø5.5xDP14
ØR 44 54 62 77 100
S (degree) 30° 18° 22.5° 22.5° 22.5°
T (degree) 30° 18° 11.25° 11.25° 11.25°

*C1, C3 is the rolerance and the matching position of axial direction.
