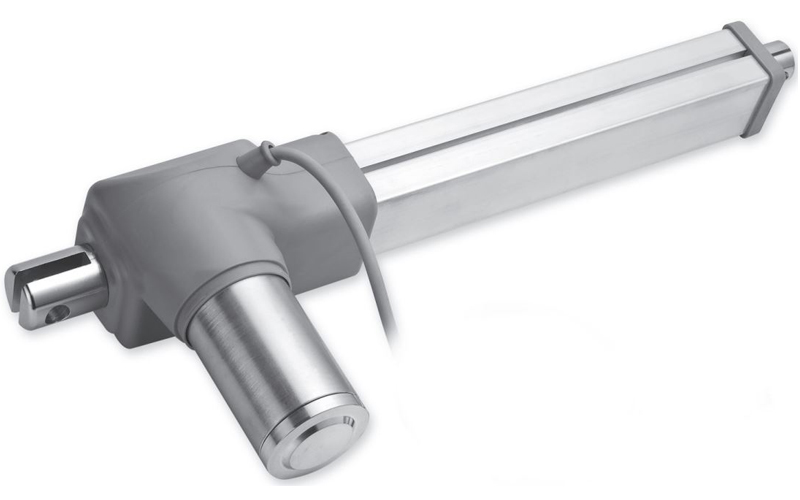

Hiwin Linear Actuator - LAM2

Hiwin Linear Actuator - LAM2 : This actuator is small and low noise, max thrust is 3500N, which enables it to be imbedded in comparatively small room.

Linear Actuator - LAM2

Hiwin Linear Actuator - LAM2 : It is mostly applied to medical (rehabilitation) industry and industrial automation.

ดาวน์โหลดไฟล์ PDF

Feature | Linear Actuator - LAM2

Screw type : Ball screw / ACME
Weight (Stroke length 200mm) : 1.9kg
Protection : IP54
Compatible countroller : Compatible with all controllers (*Notice the type of connector: Audio/DIN 4pin)
Working temp. : 5 - 40 °C
Option
- External reed switch (RL=S+207, S≤300)
- Mechanical Spline (Push only)
- MR Sensor (Position feedback)
- Backfixture turned 90°
- IP66
- Rod end with roung connector (RL=S+176, S≤300)
- Pulg: DIN 4PIN plug / Stereo plug / Mono plug
- UL Version

Specifications | Linear Actuator - LAM2

Model	Thrust max. (N)	Pulling max. (N)	Holding max. (N)	Speed (mm/s)		Standard stroke (mm) : s					Duty cycle %	Current max (A)		MR Sensor Resolution (mm/pulse)
Model	Thrust max. (N)	Pulling max. (N)	Holding max. (N)	Load max	Load 0	Standard stroke (mm) : s					Duty cycle %	12VDC	24VDC	MR Sensor Resolution (mm/pulse)
LAM2-1	3500	3500	3000	2	3.5	100	150	200	250	300	10	8	4	0.1
LAM2-2	2500	2500	2000	3	6	100	150	200	250	300	10	8	4	0.16
LAM2-3	1500	1500	1500	6.5	12	100	150	200	250	300	10	6	3	0.32
