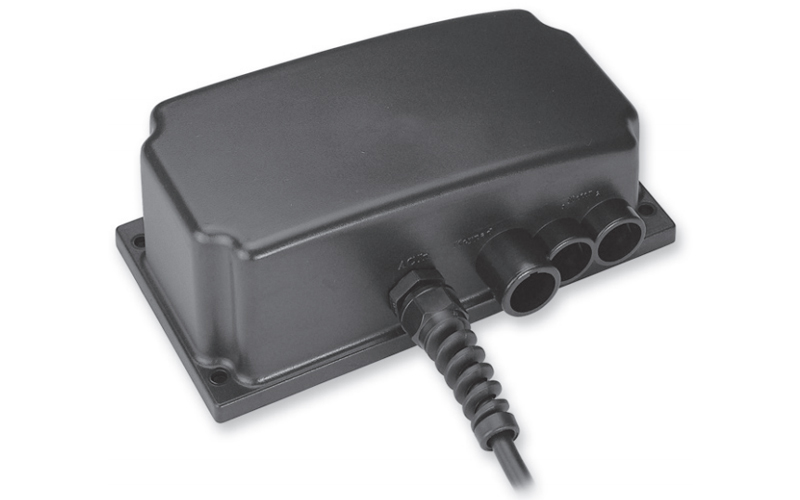

Hiwin Linear Actuator Controller - LAK2

Hiwin Linear Actuator Controller - LAK2 : is the interface that control actuator's trajectory, speed and positioning. Because of medical facilities are using DC linear actuator, rechargeable battery or rectifier is required. LAK series can provide software and function customized.

Linear Actuator Controller - LAK2

ดาวน์โหลดไฟล์ PDF

Feature | Linear Actuator Controller - LAK2

• Controls 1 or 2 Linear Actuators
• Over load protection
• Standard cable length: AC:4M / DC:1M
• Electronic protection of the relays
• Option
  • IP66
  • DC 12V In&Out
  • DC 24V In&Out
  • UL version only for AC 120V input (Max. Output 24V/6A)

---

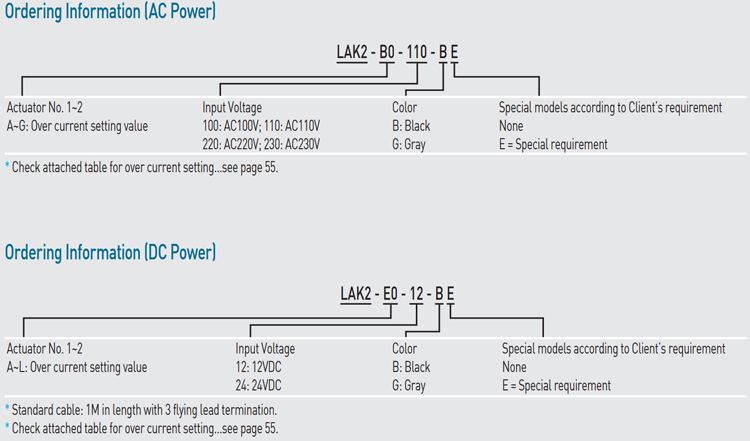

Code | Linear Actuator Controller - LAK2

---

Specifications | Linear Actuator Controller - LAK2

---

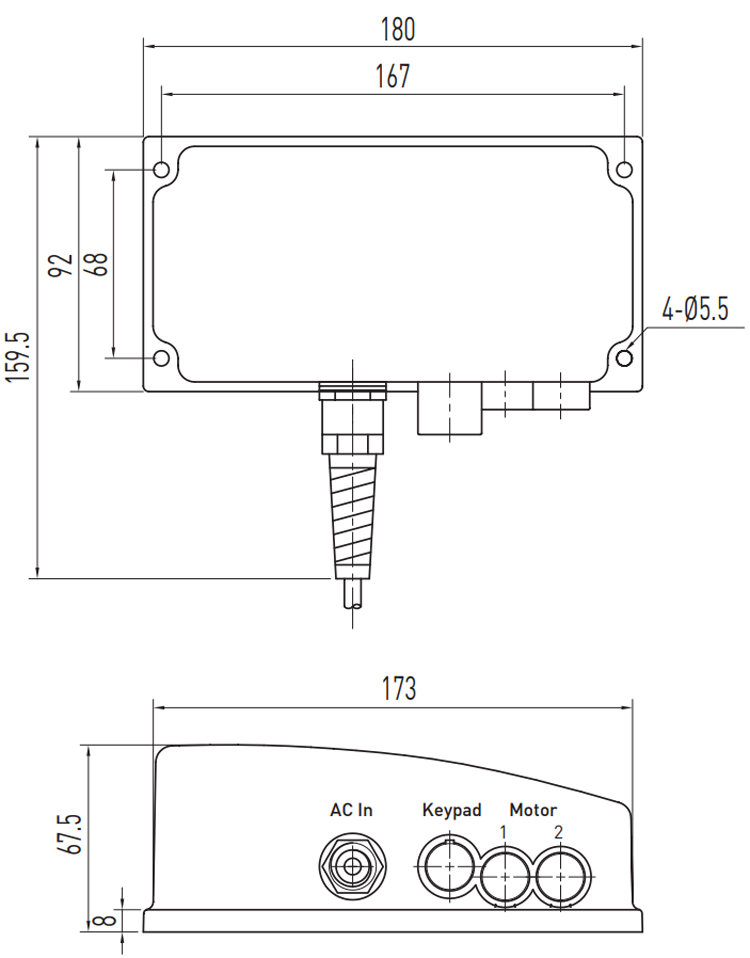

Dimensions | Linear Actuator Controller - LAK2
