The directional control valves NG6 are designed for subplate mouting with an interface in accordance with UNI ISO 4401-03-02-0-94 standard (ex CETOPR 35 H 4.2-4-03), and can be used in all fields on account of their high flow rate and pressure capacities combied with compact overall dimensions.

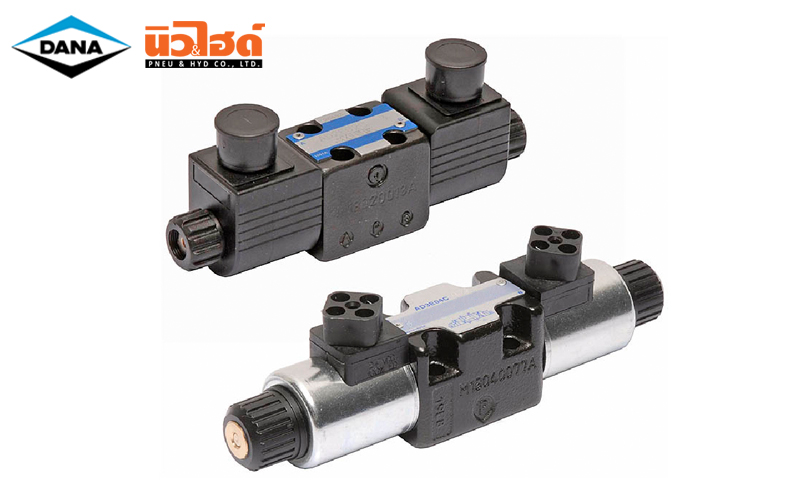

DANA CETOP Valves and blocks - Directional control
Feature | DANA CETOP Valves and blocks - Directional control
The use of solenoids with wet armatures allows a very prectical, safe construction completely dispensing with dynamic seals;the solenoid tube is screwed directly onto the valve chest whilst the coil is kept in position by means of a lock nut.
The special, precise construction of the ports and the improvement of the spools enables relatively high flow rates to be accommodated with a minimal pressure drop (∆p).
The centre position is obtained by means of calibrated length spring which reposition the spool in the centre or end of travel position once the action of the impulse is over.
