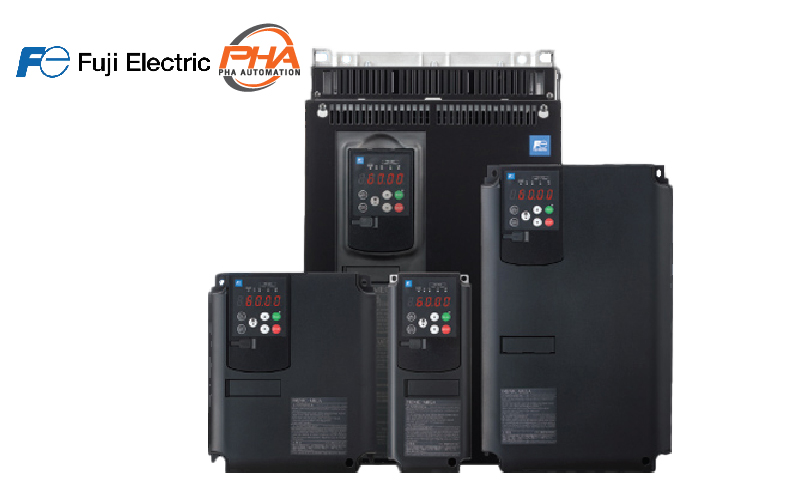

FUJI Electric Inverter - FRENIC MEGA series (G2)

English
ไทย

Inverter - FRENIC MEGA series (G2)

Download PDF
FRENIC MEGA G2
FUJI Electric Inverter - FRENIC MEGA series (G2)
Model Numbers
Specifications
Features

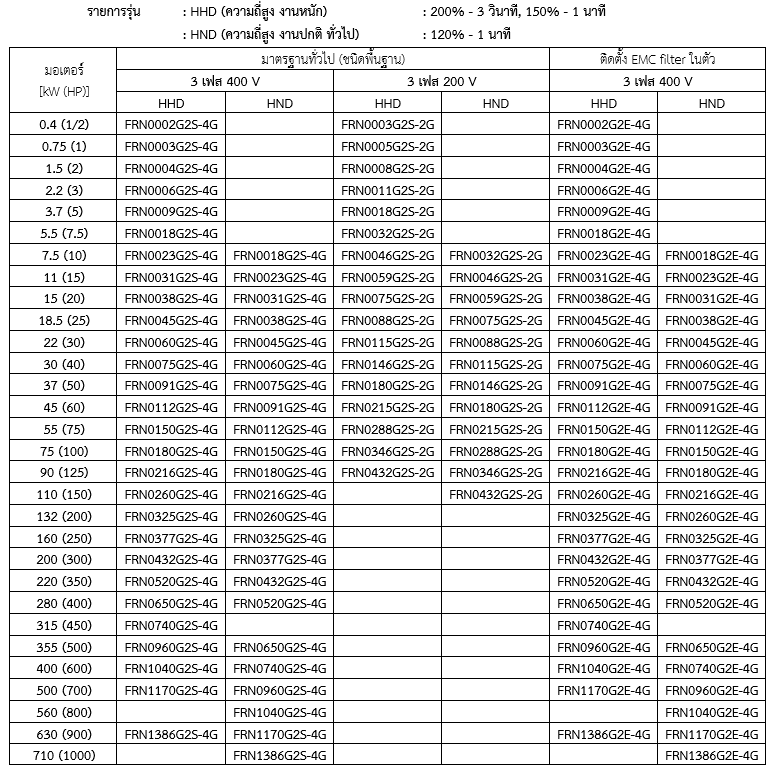

Model Numbers | Inverter - FRENIC MEGA series (G2)

FUJI Electric Inverter - FRENIC MEGA series (G2)

Specifications | Inverter - FRENIC MEGA series (G2)

FUJI Electric Inverter - FRENIC MEGA series (G2)

Features | Inverter - FRENIC MEGA series (G2)

Inherits the excellent performance specifications and functionality of the G1 Series. Unrelenting pursuit of performance and functionality to further enhance adaptability.
FRENIC-MEGA takes core capability, responsiveness, environmental awareness, and easy maintenance to the next level.

  • High basic performance
    • Supports vector control, sensor less vector control, dynamic torque vector control, and V/f control. Faster operating speeds: Increases the maximum output frequency of all control systems to 599 Hz and supports applications that require high-speed rotation and minimal speed and torque fluctuations. Enhanced response: Improves speed and current responsiveness Enhanced torque: Stabilizes torque at low speeds and increases the accuracy of machine operations through its improved speed control range. Advanced dynamic torque vector control: Enhances our proprietary dynamic torque vector control with new motor constant tuning. Strengthens ability to handle impact loads: Achieves its class’s highest level of torque responsiveness to sudden load changes. Minimizes fluctuations in motor rotational speed and suppresses vibration. Can be used with any motor: Comes with new auto-tuning features that enable multi-drive operation using our induction and synchronous motors as well as those of other companies. Expands the capacity of the built-in braking transistor type Comes standard with a larger capacity range and contributes to control panel space and cost savings.
  • Various applications:
    • Comes with feature-rich functionality and enhances compatibility with system networks. Positioning function: Contributes to shortening machine tact time through high-precision positioning control for pulse string input and feedback output instructions. PID auto tuning function: Simplifies optimization via automatic adjustment of proportional and integral gains, resulting in shorter system start-up times, etc. Load limiter: Improves system reliability by stopping when excessive torque is detected. Customizable logic functions (from 10 to 260 steps): Customizable inverter functions to meet your own specific needs. Requires no PLC or external control equipment (relays, timers, etc.) circuits, and can be configured simply by setting and combining various parameters inside the inverter. Supports a variety of networks: Insert the option card into the connector inside the main unit. Up to three cards can be inserted. Enhanced network functions: Compatible with RS-485 communication (terminal block) Comes standard with an RS-485 terminal in addition to a port (RJ-45 connector) that is shared with the keypad. Simplifies multi-drop connections via terminal connection.
  • Easy Maintenance
    • Same mounting dimensions: The appearance and mounting dimensions of the inverter are fully compatible. The 3D position and size of the main circuit screw terminals are also the same. Simple wiring: The control terminal block uses an industry-standard rod-shaped block (44-pole, ⊖ screw) and improves workability of wiring. Easy parameter migration: Compatibility mode allows parameters read from the previous model to be written directly to the G2 Series. Designed with new operation keypad: Comes standard with a 7-segment 5-digit LED display whose large screen is very intuitive and enhances maintainability via improved key button operability and cursor digit control. Enhances alarm history and traceback functions: Capable of displaying and storing data for the past four occurrences, such as data for output voltage and output frequency at the times of alarms. / Capable of acquiring and saving waveform data immediately before an alarm occurs. Enhanced PC loader functions: The PC loader can be used by directly connecting the keypad to a PC using a commercially available USB cable (mini B). / It makes it easy to store or check various types of information at the office, or send information and check abnormalities at Life expectancy diagnosis and maintenance functions: The keypad and PC loader make it easy to check the status of equipment and detect problems before they occur, helping to reduce production equipment maintenance time and downtime. Long life expectancy (main components): Many of the serviceable parts inside the inverter have been designed to meet customer equipment maintenance cycles.
  • Environmentally resistant
    • Improves environmental resistance: (1) Uses copper bars with Ni and Sn plating, (2) Ambient operating temperature up to +55°C, (3) Further strengthens PCB coating, (4) IP55 protection for the inverter’s main cooling unit contributes to enhanced cooling outside the panel, lower costs, and downsizing. Includes safety functions: Compliant with European safety standards. (EN ISO 13849-1:2015, Cat3/PL:e IEC/EN61800-5-2:2016 SIL3 (STO)) / The inverter comes with a function that enables it to adapt to machine safety. This facilitates the design of main circuit switching devices for ensuring safe stoppages. Compliant with the revised European RoHS Directive: Lead, mercury, cadmium, and hexavalent chromium, Polybrominated biphenyl (PBB), Polybrominated diphenyl ether (PBDE), Di-2-ethylhexyl phthalate (DEHP), Butyl benzyl phthalate (BBP), Di-n-butyl phthalate (DBP), Diisobutyl phthalate (DIBP) Globally compliant: Compliant with overseas safety standards. (European regions- EC directive (CE marking)) (United States/Canada- UL standard/cUL standard)

Inverter - FRENIC MEGA series (G2)

ดาวน์โหลดไฟล์ PDF
FUJI Electric Inverter - FRENIC MEGA series (G2)
FUJI Electric Inverter - FRENIC MEGA series (G2)
เลือกรุ่นสินค้า
ข้อมูลทางเทคนิค
คุณสมบัติ

เลือกรุ่นสินค้า | Inverter - FRENIC MEGA series (G2)

FUJI Electric Inverter - FRENIC MEGA series (G2)
FUJI Electric Inverter - FRENIC MEGA series (G2)

คุณสมบัติ | Inverter - FRENIC MEGA series (G2)

รับช่วงต่อคุณสมบัติที่มีประสิทธิภาพต่อการทำงานที่ยอดเยี่ยม และฟังก์ชันของรุ่นก่อน(G1 Series) การพัฒนาที่ไม่หยุดยั้งของประสิทธิภาพ และการทำงาน เพื่อเพิ่มความสามารถในการใช้งานที่หลากหลาย
FRENIC MEGA (G2) ยกระดับความสามารถหลัก การตอบสนอง ความตระหนักด้านสิ่งแวดล้อม และการบำรุงรักษาที่ง่ายไปในอีกระดับ

  • ประสิทธิภาพพื้นฐานสูง
    • รองรับการควบคุมแบบ vector control, sensor less vector control, dynamic torque vector control และ V/f control.
    • ความเร็วในการทำงานเร็วขึ้น: เพิ่มความถี่เอาต์พุตสูงสุดของระบบการควบคุมทั้งหมดถึง 599 Hz และ รองรับงานที่ต้องการการหมุนด้วยความเร็วสูง และความเร็วต่ำสุด และแรงบิดที่ไม่แน่นอน
    • การตอบสนองที่เพิ่มขึ้น: ปรับปรุงความเร็วและการตอบสนองในปัจจุบัน
    • แรงบิดที่เพิ่มขึ้น: รักษาแรงบิดที่ความเร็วต่ำ และเพิ่มความแม่นยำของการทำงานของเครื่องจักร
    • Dynamic torque vector control ขั้นสูง: ปรับปรุงการควบคุมด้วยการปรับค่าคงที่ของมอเตอร์แบบใหม่
    • ความสามารถในการรองรับแรงกระแทกของโหลด: ตอบสนองแรงบิดสูงสุดในระดับเดียวกันที่มีการเปลี่ยนแปลงโหลดกะทันหัน ช่วยลดความผันผวนของความเร็วในการหมุนของมอเตอร์ และลดการสั่นสะเทือน
    • ใช้งานได้กับมอเตอร์ทุกรุ่น: มาพร้อมคุณสมบัติการจูนอัตโนมัติแบบใหม่ ช่วยให้สามารถทำงานแบบมัลติไดรฟ์ ใช้งานกับมอเตอร์อินดักชั่น และมอเตอร์ซิงโครนัส
    • ขยายความจุของเบรกชนิดทรานซิสเตอร์ภายในตัว: มาพร้อมกับมาตรฐานด้วยช่วงความจุมากขึ้น มีส่วนพื้นที่แผงควบคุม และช่วยประหยัดค่าใช้จ่าย
  • แอพพลิเคชั่นต่างๆ : มาพร้อมกับฟังก์ชันการทำงานที่มีความหลากหลาย และเพิ่มความเข้ากันได้ผ่านเครือข่ายระบบ
    • ฟังก์ชั่นตำแหน่ง: มีส่วนทำให้เวลาทำงานของเครื่องสั้นลง ผ่านการควบคุมตำแหน่งที่มีความแม่นยำสูง สำหรับคำสั่งอินพุตพัลส์ และค่าเอาต์พุตส่งคืน
    • ฟังก์ชัน Auto-Tuning PID: ลดความซับซ้อนของการปรับให้เหมาะสม โดยผ่านการปรับอัตโนมัติของเกนตามสัดส่วนและอินทิกรัล ทำให้เวลาเริ่มต้นระบบสั้นลงเป็นต้น
    • ตัวจำกัดโหลด: ปรับปรุงระบบโดยการหยุดเมื่อตรวจพบแรงบิดที่มากเกินไป
    • ฟังก์ชันลอจิกที่ปรับแต่งได้ (10 ถึง 260 steps): ไม่ต้องใช้ PLC หรือวงจรอุปกรณ์ควบคุมภายนอก และสามารถกำหนดค่าได้ โดยการตั้งค่า และพารามิเตอร์ต่างๆ ภายในอินเวอร์เตอร์
    • รองรับเครือข่ายการสื่อสารที่หลากหลาย: ติดตั้งการ์ดเสริมด้วยคอนเน็กเตอร์ภสยใน ใส่การ์ดเสริมได้สูงสุด 3 การ์ด
    • ปรับปรุงฟังก์ชั่นเครือข่าย: เพิ่มเติมส่วนเทอร์มินอล RS-485 มาตรฐาน นอกเหนือจากพอร์ต (RJ-45) ที่ใช้ร่วมกับคีย์แพด
  • งานต่อการบำรุงรักษา
    • ขนาดที่ติดตั้งเท่ากัน: ขนาดอินเวอร์เตอร์ รูเจาะยึด และการติดตั้งเท่ากันระหว่างอินเวอร์เตอร์รุ่นเก่า G1 จะเท่ากันกับ G2 รุ่นใหม่ได้
    • ง่ายต่อการต่อสายไฟ: เทอร์มินอลคอนโทรลใช้ตามมาตรฐานของงานอุตสาหกรรม (มี 44-ช่อง, ⊖ ไขควงแบน)
    • การย้ายพารามิเตอร์: ช่วยให้สามารถย้ายพารามิเตอร์จากรุ่นก่อนหน้า G1 ไปยังรุ่น G2 ได้โดยตรง
    • ออกแบบคีย์แพดใหม่: มาพร้อมกับจอแสดงผล LED 5 หลัก ส่วนที่มีหน้าจอขนาดใหญ่ที่ใช้งานง่าย และปรับปรุงความสามารถในการบำรุงรักษา
    • ปรับปรุงฟังก์ชั่นการโหลดด้วย PC: สามารถใช้ PC loader เชื่อมต่อปุ่มกดกับ PC ได้โดยตรงโดยผ่านสาย USB (mini B)
    • ฟังก์ชั่นการวินิจฉัย และบำรุงรักษา: คีย์แพด และ PC loader ทำให้ง่ายต่อการตรวจสอบสถานะของอุปกรณ์ และตรวจสอบปัญหาก่อนที่จะเกิดขึ้น
    • อายุการใช้งานยืนยาว (ชิ้นส่วนประกอบหลักภายใน): ชิ้นส่วนที่ซ่อมบำรุงได้รับการออกแบบมาเพื่อให้สอดคล้องกับรอบการบำรุงรักษาอุปกรณ์ของลูกค้า
  • ทนทานต่อสิ่งแวดล้อม
    • ปรับปรุงความต้านทานต่อสิ่งแวดล้อม: (1) ใช้แท่งทองแดงชุบนิกเกิล และดีบุก, (2) ทนอุณหภูมิในการทำงานได้สูงถึง 55°C, (3) เคลือบแผ่น PCB, (4) การป้องกัน IP55
    • ฟังก์ชันความปลอดภัย: สอดคล้องกับมาตรฐานความปลอดภัยของยุโรป (EN ISO 13849-1:2015, Cat3/PL:e IEC/EN61800-5-2:2016 SIL3 (STO)) / อินเวอร์เตอร์มาพร้อมกับฟังก์ชันที่ช่วยให้สามารถปรับให้เข้ากับ
    • ความปลอดภัยของเครื่องได้
    • เป็นไปตามข้อกำหนด RoHS ของยุโรป
    • สอดคล้องกับทั่วโลก: ได้มาตรฐานความปลอดภัยจากต่างประเทศ (ยุโรป- EC directive (CE marking)) (อเมริกา/แคนาดา- UL standard/cUL standard)
