HMI - Comfort Panel PRO
Download PDF
Specifications
Features
Specifications | HMI - Comfort Panel PRO
| Series | Model | Display size | Display | Resolution (pixel) | Memory | Note | |
|---|---|---|---|---|---|---|---|
| SIMATIC HMI Unified Comfort Panels |
MTP700 Unified Comfor | 6AV2128-3GB06-0AX0 | 7 | TFT widescreen display | 800 x 480 | 12 Mbyte | Profinet (Has logo SIEMENS) |
| 6AV2128-3GB36-0AX0 | TFT widescreen display | Profinet (No logo SIEMENS) | |||||
| MTP1000 Unified Comfor | 6AV2128-3KB06-0AX0 | 10.1 | TFT widescreen display | 1280 x 800 | 12 Mbyte | Profinet (Has logo SIEMENS) | |
| 6AV2128-3KB36-0AX0 | TFT widescreen display | Profinet (No logo SIEMENS) | |||||
| MTP1200 Unified Comfor | 6AV2128-3MB06-0AX0 | 12.1 | TFT widescreen display | 1280 x 800 | 12 Mbyte | Profinet (Has logo SIEMENS) | |
| 6AV2128-3MB36-0AX0 | TFT widescreen display | Profinet (No logo SIEMENS) | |||||
| MTP1500 Unified Comfor | 6AV2128-3QB06-0AX0 | 15.6 | TFT widescreen display | 1366 x 768 | 12 Mbyte | Profinet (Has logo SIEMENS) | |
| 6AV2128-3QB36-0AX0 | TFT widescreen display | Profinet (No logo SIEMENS) | |||||
| MTP1900 Unified Comfor | 6AV2128-3UB06-0AX0 | 18.5 | TFT widescreen display | 1920 x 1080 | 12 Mbyte | Profinet (Has logo SIEMENS) | |
| 6AV2128-3UB36-0AX0 | TFT widescreen display | Profinet (No logo SIEMENS) | |||||
| MTP2200 Unified Comfor | 6AV2128-3XB06-0AX0 | 21.5 | TFT widescreen display | 1920 x 1080 | 12 Mbyte | Profinet (Has logo SIEMENS) | |
| 6AV2128-3XB36-0AX0 | TFT widescreen display | Profinet (No logo SIEMENS) | |||||
| SIMATIC HMI Comfort Panels |
KP400 Comfort | 6AV2124-2DC01-0AX0 | 4 | TFT widescreen display | 480 x 272 | 4 Mbyte | Profinet (Keypad and touchscreen) |
| 6AV2124-1DC01-0AX0 | TFT widescreen display | Profinet (Keypad) | |||||
| KP700 Comfort | 6AV2124-0GC01-0AX0 | 7 | TFT widescreen display | 800 x 480 | 12 Mbyte | Profinet (Keypad and touchscreen) | |
| 6AV2124-1GC01-0AX0 | TFT widescreen display | Profinet (Keypad) | |||||
| KP900 Comfort | 6AV2124-0JC01-0AX0 | 9 | TFT widescreen display | 800 x 480 | 12 Mbyte | Profinet (Keypad and touchscreen) | |
| 6AV2124-1JC01-0AX0 | TFT widescreen display | Profinet (Keypad) | |||||
| KP1200 Comfort | 6AV2124-0MC01-0AX0 | 12 | TFT widescreen display | 1280 x 800 | 24 Mbyte | Profinet (Keypad and touchscreen) | |
| 6AV2124-1MC01-0AX0 | TFT widescreen display | Profinet (Keypad) | |||||
| KP1500 Comfort | 6AV2124-0QC02-0AX1 | 15 | TFT widescreen display | 1280 x 800 | 24 Mbyte | Profinet (Keypad and touchscreen) | |
| 6AV2124-1QC02-0AX1 | TFT widescreen display | Profinet (Keypad) | |||||
| KP1900 Comfort | 6AV2124-0UC02-0AX1 | 19 | TFT widescreen display | 1366 x 768 | 24 Mbyte | Profinet (Keypad and touchscreen) | |
| KP2200 Comfort | 6AV2124-0XC02-0AX1 | 22 | TFT widescreen display | 1920 x 1080 | 24 Mbyte | Profinet (Keypad and touchscreen) | |
Features | HMI - Comfort Panel PRO

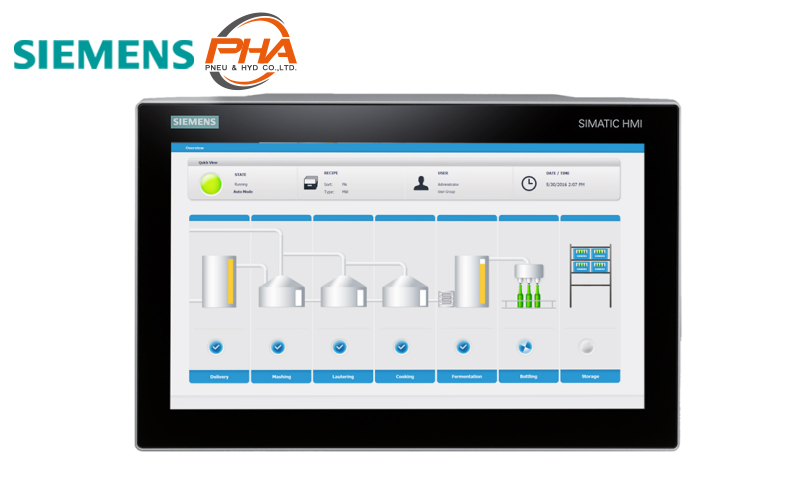

Siemens has extended its system range of completely IP65-protected HMI devices by SIMATIC HMI Comfort Panels PRO (PROtected) for visualization and automation without control cabinets.
The panels with 12-, 15-, 19-, and 22-inch screen diagonals are equipped with the high protection type IP65, just like the PRO devices in the Simatic IFP and IPC series.
Properties | HMI - Comfort Panel PRO
| HMI | Comfort Panel PRO |
|---|---|
| Size | 12", 15", 19", 22" |
| Resolution | 1280 x 800 px (TFT) |
| 1366 x 768 px (TFT) | |
| 1920 x 1080 px (TFT) | |
| Control element | touchscreen |
| Memory | 24 MB |
| Interface | RJ 45 for PROFINET (with integrated switch) |
| RJ 45 Ethernet for PROFINET (gigabit capable) | |
| RS 485/422 for PROFINET/MPI | |
| USB-host, 1 x USB-device | |
| SD card slot | |
| Degree of protection | IP65 (all-round) |
HMI - Comfort Panel PRO
ดาวน์โหลดไฟล์ PDF ข้อมูลทางเทคนิค
คุณสมบัติ
ข้อมูลทางเทคนิค | HMI - Comfort Panel PRO
| อุปกรณ์ | รุ่น | ขนาดจอ | ส่วนการแสดงผล | ความละเอียด (พิกเซล) | หน่วยความจำ | หมายเหตุ | |
|---|---|---|---|---|---|---|---|
| SIMATIC HMI Unified Comfort Panels |
MTP700 Unified Comfor | 6AV2128-3GB06-0AX0 | 7 | TFT widescreen display | 800 x 480 | 12 Mbyte | Profinet (มีโลโก้ SIEMENS) |
| 6AV2128-3GB36-0AX0 | TFT widescreen display | Profinet (ไม่มีโลโก้ SIEMENS) | |||||
| MTP1000 Unified Comfor | 6AV2128-3KB06-0AX0 | 10.1 | TFT widescreen display | 1280 x 800 | 12 Mbyte | Profinet (มีโลโก้ SIEMENS) | |
| 6AV2128-3KB36-0AX0 | TFT widescreen display | Profinet (ไม่มีโลโก้ SIEMENS) | |||||
| MTP1200 Unified Comfor | 6AV2128-3MB06-0AX0 | 12.1 | TFT widescreen display | 1280 x 800 | 12 Mbyte | Profinet (มีโลโก้ SIEMENS) | |
| 6AV2128-3MB36-0AX0 | TFT widescreen display | Profinet (ไม่มีโลโก้ SIEMENS) | |||||
| MTP1500 Unified Comfor | 6AV2128-3QB06-0AX0 | 15.6 | TFT widescreen display | 1366 x 768 | 12 Mbyte | Profinet (มีโลโก้ SIEMENS) | |
| 6AV2128-3QB36-0AX0 | TFT widescreen display | Profinet (ไม่มีโลโก้ SIEMENS) | |||||
| MTP1900 Unified Comfor | 6AV2128-3UB06-0AX0 | 18.5 | TFT widescreen display | 1920 x 1080 | 12 Mbyte | Profinet (มีโลโก้ SIEMENS) | |
| 6AV2128-3UB36-0AX0 | TFT widescreen display | Profinet (ไม่มีโลโก้ SIEMENS) | |||||
| MTP2200 Unified Comfor | 6AV2128-3XB06-0AX0 | 21.5 | TFT widescreen display | 1920 x 1080 | 12 Mbyte | Profinet (มีโลโก้ SIEMENS) | |
| 6AV2128-3XB36-0AX0 | TFT widescreen display | Profinet (ไม่มีโลโก้ SIEMENS) | |||||
| SIMATIC HMI Comfort Panels |
KP400 Comfort | 6AV2124-2DC01-0AX0 | 4 | TFT widescreen display | 480 x 272 | 4 Mbyte | Profinet (คีย์แพดและหน้าจอสัมผัส) |
| 6AV2124-1DC01-0AX0 | TFT widescreen display | Profinet (คีย์แพด) | |||||
| KP700 Comfort | 6AV2124-0GC01-0AX0 | 7 | TFT widescreen display | 800 x 480 | 12 Mbyte | Profinet (คีย์แพดและหน้าจอสัมผัส) | |
| 6AV2124-1GC01-0AX0 | TFT widescreen display | Profinet (คีย์แพด) | |||||
| KP900 Comfort | 6AV2124-0JC01-0AX0 | 9 | TFT widescreen display | 800 x 480 | 12 Mbyte | Profinet (คีย์แพดและหน้าจอสัมผัส) | |
| 6AV2124-1JC01-0AX0 | TFT widescreen display | Profinet (คีย์แพด) | |||||
| KP1200 Comfort | 6AV2124-0MC01-0AX0 | 12 | TFT widescreen display | 1280 x 800 | 24 Mbyte | Profinet (คีย์แพดและหน้าจอสัมผัส) | |
| 6AV2124-1MC01-0AX0 | TFT widescreen display | Profinet (คีย์แพด) | |||||
| KP1500 Comfort | 6AV2124-0QC02-0AX1 | 15 | TFT widescreen display | 1280 x 800 | 24 Mbyte | Profinet (คีย์แพดและหน้าจอสัมผัส) | |
| 6AV2124-1QC02-0AX1 | TFT widescreen display | Profinet (คีย์แพด) | |||||
| KP1900 Comfort | 6AV2124-0UC02-0AX1 | 19 | TFT widescreen display | 1366 x 768 | 24 Mbyte | Profinet (คีย์แพดและหน้าจอสัมผัส) | |
| KP2200 Comfort | 6AV2124-0XC02-0AX1 | 22 | TFT widescreen display | 1920 x 1080 | 24 Mbyte | Profinet (คีย์แพดและหน้าจอสัมผัส) | |
คุณสมบัติ | HMI - Comfort Panel PRO
Siemens ได้ขยายขีดความสามารถของอุปกรณ์ HMI ให้สามารถป้องกันสภาพแวดล้อมได้ที่ IP65 ได้โดยสมบรูณ์โดย SIMATIC HMI Comfort Panels PRO มาจาก PROtected เพื่องามแสดงผลและงานระบบอัตโนมัติโดยที่ไม่ต้องพึ่งพาตู้ควบคุม ซึ่งจอขนาด 12, 15, 19 และ 22 นิ้ว มีระดับป้องกันสูง IP65 เหมือกันอุปกรณ์ใรตระกูล Simatic IFP และ IPC
ข้อมูลจำเพาะ | HMI - Comfort Panel PRO
| HMI | Comfort Panel PRO |
|---|---|
| ขนาด | 12, 15, 19, 22 นิ้ว |
| รายละเอียด | 1280 x 800 px (TFT) |
| 1366 x 768 px (TFT) | |
| 1920 x 1080 px (TFT) | |
| รูปแบบการควบคุม | จอสัมผัส |
| หน่วยความจำ | 24 MB |
| Interface | RJ 45 for PROFINET (with integrated switch) |
| RJ 45 Ethernet for PROFINET (gigabit capable) | |
| RS 485/422 for PROFINET/MPI | |
| USB-host, 1 x USB-device | |
| SD card slot | |
| มาตรฐานการป้องกัน | IP65 (รอบทิศทาง) |
