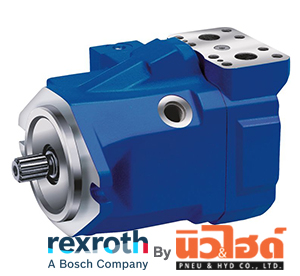

Rexroth Variable Plug-in Motor รุ่น A10VM Series 52
Axial piston variable motor - A10VM series 52
รายละเอียด Rexroth Axial Piston fixed motor - A10VM series 52
- Medium pressure motor with two-point control
- Size 28 … 85
- Nominal pressure up to 280 bar
- Maximum pressure up 350 bar
- Open and closed circuit
Features
- Dual displacement motor with well-tried A10-rotary unit technology
- Approved for high speeds
- Long service life
- High power density
- Low noise
- Minimum swivel angle can be set externally
- Swashplate design

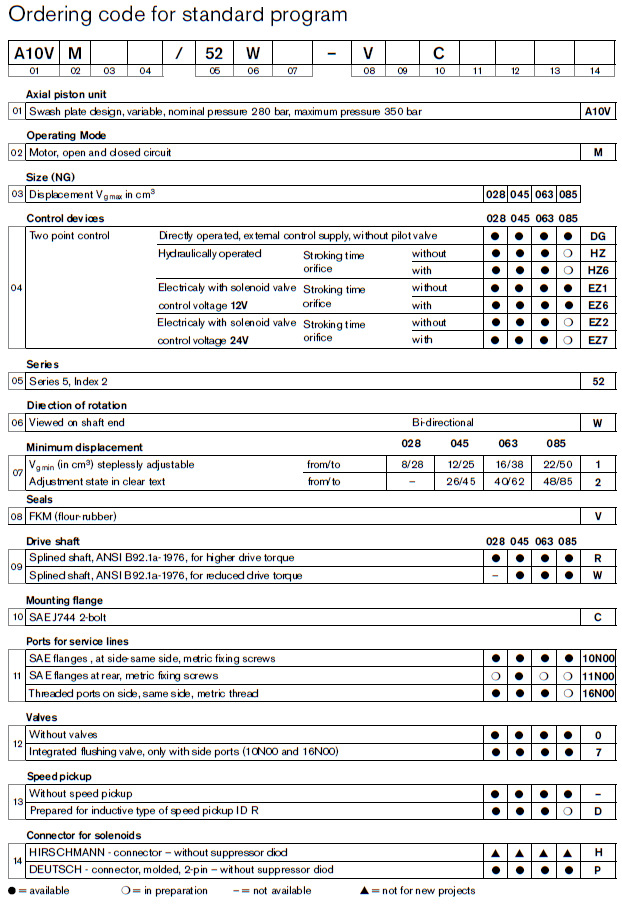

Type Code
| Size | 28 | 45 | 63 | 85 | |||
|---|---|---|---|---|---|---|---|
| Displacement | Vg max | cm³ | 28 | 45 | 62 | 87 | |
| Vg min | cm³ | 8 | 12 | 16 | 22 | ||
| Nominal pressure | pnom | bar | 280 | 280 | 280 | 280 | |
| Maximum pressure | pmax | bar | 350 | 350 | 350 | 350 | |
| Maximum speed | at Vg max | nnom | rpm | 4700 | 4000 | 3300 | 3100 |
| at Vg min | nmax | rpm | 5400 | 4600 | 3900 | 3560 | |
| Inletflow | at Vg max and nnom | qV nom | l/min | 131.6 | 180 | 205 | 270 |
| Torque | at Vg max and pnom | M | Nm | 125 | 200 | 276 | 387 |
| Weight (approx.) | m | kg | 14 | 18 | 26 | 34 | |
| Model | Code |
|---|---|
| A A10V M 10 DG /52W-PKC64N000-S1975 | R902444471 |
| A A10V M 22 DFR1/52W1-PSC68N000 -SO483 | R910983832 |
| A A10V M 28 DFR1/52W1-VSC68N000 -S1378 | R910983825 |
| A A10V M 28 DG /52W1-PSC95N000 | R910983838 |
| A A10V M 28 DG /52W1-VRC60N000 | R902420018 |
| A A10V M 28 DG /52W1-VRC60N000 | R910996778 |
| A A10V M 28 DG /52W1-VRC61N000 | R902406022 |
| A A10V M 28 DG /52W1-VRC64N000 | R902411878 |
| A A10V M 28 DG /52W1-VRC64N000 -S1046 | R902409950 |
| A A10V M 28 DG /52W1-VRC64N000 -S1047 | R902406131 |
| A A10V M 28 DG /52W1-VRC66N000 | R902430413 |
| A A10V M 28 DG /52W1-VRC66N000 -S1103 | R902403882 |
| A A10V M 28 DG /52W1-VSC60N000 | R902407428 |
| A A10V M 28 EZ1 /52W1-PRC60N000 | R910994730 |
| A A10V M 28 EZ1 /52W1-PRC95N000 | R910988851 |
| A A10V M 28 EZ1 /52W1-PSC95N000 | R910983834 |
| A A10V M 28 EZ1 /52W1-VRC66N000 | R902433280 |
| A A10V M 28 EZ1 /52W1-VSC60N000 -S1047 | R902406535 |
| A A10V M 28 EZ1/52W1-VRC66N000D -SO952 | R902410633 |
| A A10V M 28 EZ1/52W1-VSC60N000D -S1047 | R902406536 |
| A A10V M 28 EZ2 /52W1-PRC60N000 | R910998398 |
| A A10V M 28 EZ2 /52W1-PRC60N000 -SO701 | R910991132 |
| A A10V M 28 EZ2 /52W1-PSC95N000 | R910983837 |
| A A10V M 28 EZ2 /52W1-VRC60N000 | R902435436 |
| A A10V M 28 EZ2 /52W1-VRC60N000 -S1119 | R902405958 |
| A A10V M 28 EZ2 /52W1-VRC60N000 -S1549 | R902424976 |
| A A10V M 28 EZ2 /52W1-VRC60N000P-S1119 | R902562346 |
| A A10V M 28 EZ2 /52W1-VRC68N000 | R902402263 |
| A A10V M 28 HZ /52W1-PRC95N000 | R902400225 |
| A A10V M 28 HZ /52W1-PSC95N000 | R910987434 |
| A A10V M 28 HZ /52W1-PSC95N000 -S1047 | R902400050 |
| A A10V M 28 HZ /52W1-VRC60N000 | R902500291 |
| A A10V M 28 HZ /52W1-VRC60N000 | R902534870 |
| A A10V M 28 HZ /52W1-VRC60N000 -S1048 | R902438662 |
| A A10V M 28 HZ /52W1-VRC66N000 | R902400221 |
| A A10V M 28 HZ /52W1-VRC66N000 -S1091 | R902404811 |
| A A10V M 28 HZ /52W1-VRC66N000 -SO952 | R902400267 |
| A A10V M 28 HZ /52W1-VRC66N000D -SO952 | R902403664 |
| A A10V M 28 HZ /52W1-VRC66N007 -S1064 | R902434149 |
| A A10V M 28 HZ /52W1-VSC60N000 | R902410757 |
| A A10V M 28 HZ /52W1-VSC60N000 -S1047 | R902400411 |
| A A10V M 45 DFR1/52WX-VSC95N0*UNGUEL*** | R902410588 |
| A A10V M 45 DG /52W1-PRC66N000 -SO286 | R910966173 |
| A A10V M 45 DG /52W1-PRC95N000 | R910985949 |
| A A10V M 45 DG /52W1-PRC95N000 -SO286 | R910966896 |
| A A10V M 45 DG /52W1-PUC60N000 | R902424688 |
| A A10V M 45 DG /52W1-PUC66N000 | R910979365 |
| A A10V M 45 DG /52W1-PUC66N000 -SO407 | R910979267 |
| A A10V M 45 DG /52W1-PUC66N000 -SO643 | R902400043 |
| A A10V M 45 DG /52W1-PUC95N000 | R902400098 |
| A A10V M 45 DG /52W1-PUC95N000 -SO935 | R910979363 |
| A A10V M 45 DG /52W1-VRC10N000 | R902544103 |
| A A10V M 45 DG /52W1-VRC11N000 | R902546108 |
| A A10V M 45 DG /52W1-VRC60N000 | R902425897 |
| A A10V M 45 DG /52W1-VRC61N000 | R902427638 |
| A A10V M 45 DG /52W1-VRC64N000 | R902400122 |
| A A10V M 45 DG /52W1-VRC64N000 | R902506688 |
| A A10V M 45 DG /52W1-VRC64N000 -S1167 | R902409587 |
| A A10V M 45 DG /52W1-VRC64N000 -SO481 | R902409327 |
| A A10V M 45 DG /52W1-VRC64N000 -SO607 | R902401007 |
| A A10V M 45 DG /52W1-VRC64N000 -SO873 | R910986253 |
| A A10V M 45 DG /52W1-VRC66N000 | R902400121 |
| A A10V M 45 DG /52W1-VRC66N000D | R902400415 |
| A A10V M 45 DG /52W1-VRC68B020 | R902400035 |
| A A10V M 45 DG /52W1-VRC68B025 | R902400188 |
| A A10V M 45 DG /52W1-VSC95N000 | R902400083 |
| A A10V M 45 DG /52W1-VUC64N000 -SO873 | R902400051 |
| A A10V M 45 DG /52W1-VUC66N000 -S1207 | R902413383 |
| A A10V M 45 DG /52W1-VUC95N000 -S1207 | R902413384 |
| A A10V M 45 DG /52W1-VWC61N000 | R910994806 |
| A A10V M 45 DG /52W1-VWC64N000 | R902400146 |
| A A10V M 45 DG /52W1-VWC64N000 -S1854 | R902436258 |
| A A10V M 45 DG /52W1-VWC64N000 -SO481 | R902412653 |
| A A10V M 45 DG /52W1-VWC66N000 -SO407 | R902400126 |
| A A10V M 45 DG /52W1-VWC95N000 | R902400200 |
| A A10V M 45 DG /52W2-VRC10N000 | R902544105 |
| A A10V M 45 DG /52W2-VRC11N000 | R902546550 |
| A A10V M 45 DG /52W2-VRC60N000 | R902416346 |
| A A10V M 45 DG /52W2-VRC61N000 | R902401331 |
| A A10V M 45 DG /52W2-VRC64N000 | R902400212 |
| A A10V M 45 DG /52W2-VRC95N000 | R902412262 |
| A A10V M 45 DG /52W2-VSC95N000 | R902403337 |
| A A10V M 45 DG /52W2-VWC10N000 | R902489575 |
| A A10V M 45 DG /52W2-VWC60N000 | R902401221 |
| A A10V M 45 DG /52W2-VWC64N000 | R902400414 |
| A A10V M 45 DG /52W2-VWC66N000 | R902430387 |
| A A10V M 45 EZ1 /52W1-PSC95N000 | R902400022 |
| A A10V M 45 EZ1 /52W1-PUC95N000 | R902400010 |
| A A10V M 45 EZ1 /52W1-VRC10N007 | R902488558 |
| A A10V M 45 EZ1 /52W1-VRC60N000 | R910993532 |
| A A10V M 45 EZ1 /52W1-VRC60N007 | R910994441 |
| A A10V M 45 EZ1 /52W1-VRC60N007 -S1037 | R902402959 |
| A A10V M 45 EZ1 /52W1-VRC60N007 -S1065 | R902410052 |
| A A10V M 45 EZ1 /52W1-VRC60N007 -S1065 | R902403421 |
| A A10V M 45 EZ1 /52W1-VRC64N000 | R902401099 |
| A A10V M 45 EZ1 /52W1-VRC95N000 | R902412229 |
| A A10V M 45 EZ1 /52W1-VSC60N000 | R902417346 |
| A A10V M 45 EZ1 /52W1-VSC60N000 -SO779 | R902400199 |
| A A10V M 45 EZ1 /52W1-VSC95N000 -S1173 | R902410298 |
| A A10V M 45 EZ1 /52W1-VUC60N000 | R902409576 |
| A A10V M 45 EZ1 /52W1-VUC60N000DH | R902401402 |
| A A10V M 45 EZ1 /52W1-VWC60N000 | R910999835 |
| A A10V M 45 EZ1 /52W1-VWC60N00D | R902500113 |
| A A10V M 45 EZ1 /52W2-VRC10N00 | R902409586 |
| A A10V M 45 EZ1 /52W2-VRC60N000 | R902409303 |
| A A10V M 45 EZ1 /52W2-VRC60N000 | R910994592 |
| A A10V M 45 EZ1 /52W2-VRC60N000 -S1050 | R902430475 |
| A A10V M 45 EZ1 /52W2-VRC60N007 | R902425040 |
| A A10V M 45 EZ1 /52W2-VRC66N000 | R902420175 |
| A A10V M 45 EZ1 /52W2-VUC60N000 | R902403743 |
| A A10V M 45 EZ1 /52W2-VWC60N000 | R910993550 |
| A A10V M 45 EZ2 /52W1-PUC60N000 -S1123 | R902405993 |
| A A10V M 45 EZ2 /52W1-VRC10N000 | R902435175 |
| A A10V M 45 EZ2 /52W1-VRC10N000D | R902428432 |
| A A10V M 45 EZ2 /52W1-VRC10N007P | R902547925 |
| A A10V M 45 EZ2 /52W1-VRC60N000 | R902416443 |
| A A10V M 45 EZ2 /52W1-VRC60N000 -SO607 | R902429620 |
| A A10V M 45 EZ2 /52W1-VSC60N000 | R902433399 |
| A A10V M 45 EZ2 /52W2-VRC60N000 | R910994110 |
| A A10V M 45 EZ6 /52W1-VRC10N00 | R902428985 |
| A A10V M 45 EZ6 /52W1-VRC10N007 | R902438685 |
| A A10V M 45 EZ6 /52W1-VRC10N007 -S1064 | R902454334 |
| A A10V M 45 EZ6 /52W1-VRC10N007 -SO942 | R902454451 |
| A A10V M 45 EZ6 /52W1-VRC10N007 -SO942 | R992000859 |
| A A10V M 45 EZ6 /52W1-VRC16N000 | R902443535 |
| A A10V M 45 EZ6 /52W1-VRC60N000 -SO763 | R902425700 |
| A A10V M 45 EZ6 /52W1-VRC60N007 | R902433148 |
| A A10V M 45 EZ6 /52W1-VRC95N000 -SO763 | R902427406 |
| A A10V M 45 EZ6 /52W1-VSC60N000 -SO752 | R902432014 |
| A A10V M 45 EZ6 /52W1-VSC95N000 -S1173 | R902425673 |
| A A10V M 45 EZ6 /52W1-VSC95N000 -S1674 | R902428839 |
| A A10V M 45 EZ6 /52W1-VSC95N000 -S1674 | R902443195 |
| A A10V M 45 EZ6 /52W1-VUC60N000 | R902420320 |
| A A10V M 45 EZ6 /52W1-VWC10N00 | R902435694 |
| A A10V M 45 EZ6 /52W1-VWC66N000 | R902416962 |
| A A10V M 45 EZ6 /52W2-VRC10N00 | R902411153 |
| A A10V M 45 EZ6 /52W2-VRC10N007 -SO942 | R902454658 |
| A A10V M 45 EZ6 /52W2-VRC10N007 -SO942 | R902477990 |
| A A10V M 45 EZ6 /52W2-VRC10N007 -SO942 | R992000941 |
| A A10V M 45 EZ6 /52W2-VRC10N007P -SO942 | R902561962 |
| A A10V M 45 EZ6 /52W2-VRC11N000 | R902416430 |
| A A10V M 45 EZ7 /52W1-VRC60N000 -SO607 | R902434887 |
| A A10V M 45 EZ7 /52W1-VSC68N000 -SO607 | R902410328 |
| A A10V M 45 HZ /52W1-VPC10N000 | R902511265 |
| A A10V M 45 HZ /52W1-VRC10N000 | R902428015 |
| A A10V M 45 HZ /52W1-VRC60N000 | R902400477 |
| A A10V M 45 HZ /52W1-VRC61N000 | R902406026 |
| A A10V M 45 HZ /52W1-VRC64N000 | R902400201 |
| A A10V M 45 HZ /52W1-VRC64N007 -S1621 | R902427122 |
| A A10V M 45 HZ /52W1-VRC66N000 | R902400481 |
| A A10V M 45 HZ /52W1-VSC60N000 | R902400241 |
| A A10V M 45 HZ /52W1-VUC60N000 | R902500316 |
| A A10V M 45 HZ /52W1-VWC60N000 | R902400168 |
| A A10V M 45 HZ /52W1-VWC60N007 | R902401401 |
| A A10V M 45 HZ /52W1-VWC64N000 | R902429544 |
| A A10V M 45 HZ /52W1-VWC66N000 | R902400186 |
| A A10V M 45 HZ /52W1-VWC66N007 | R902401465 |
| A A10V M 45 HZ /52W1-VWC66N007 -S1064 | R902400228 |
| A A10V M 45 HZ /52W1-VWC66N007 -SO97 | R902450203 |
| A A10V M 45 HZ /52W1-VWC66N007D | R902406680 |
| A A10V M 45 HZ /52W2-VRC10N00 | R902404144 |
| A A10V M 45 HZ /52W2-VRC66N007 *GO2* | R902505324 |
| A A10V M 45 HZ /52W2-VRC66N007 -S1622 | R902427233 |
| A A10V M 45 HZ /52W2-VWC60N000 | R902400324 |
| A A10V M 45 HZ /52W2-VRC66N007D -S1622 | R902450121 |
| A A10V M 45 HZ6 /52W1-VRC64N007 -S1621 | R902430341 |
| A A10V M 45 HZ6 /52W1-VRC64N007 -S2189 | R902438609 |
| A A10V M 45 HZ6 /52W1-VRC64N007 -S2189 | R902437108 |
| A A10V M 45 HZ6 /52W2-VRC10N000 | R902417671 |
| A A10V M 63 DFR1/52W1-VWC60N000 -SO677 | R910996131 |
| A A10V M 63 DG /52W1-VRC60N000 | R902434111 |
| A A10V M 63 DG /52W2-VRC10N000 | R902544107 |
| A A10V M 63 DG /52W2-VWC10N000 | R902546425 |
| A A10V M 63 EZ1 /52W1-VRC60N007 | R902447112 |
| A A10V M 63 EZ1 /52W1-VRC60N007D | R902500305 |
| A A10V M 63 EZ1 /52W1-VWC16N000 | R902418617 |
| A A10V M 63 EZ1 /52W1-VWC60N000 | R902407725 |
| A A10V M 63 EZ1 /52W1-VWC60N000 -S1299 | R902451723 |
| A A10V M 63 EZ1 /52W1-VWC60N007 | R902409835 |
| A A10V M 63 EZ1 /52W1-VWC60N007 -S1064 | R902403902 |
| A A10V M 63 EZ1 /52W1-VWC60N007 -SO942 | R902454403 |
| A A10V M 63 EZ1 /52W2-VWC60N007 | R902449556 |
| A A10V M 63 EZ1/52W1-VRC60N007D -S1299 | R902415809 |
| A A10V M 63 EZ1/52W1-VWC60N007D -S1299 | R902419333 |
| A A10V M 63 EZ2 /52W1-VWC60N000 | R902502805 |
| A A10V M 63 EZ6 /52W1-VRC10N000 | R902434241 |
| A A10V M 63 EZ6 /52W1-VRC10N007 | R902433298 |
| A A10V M 63 EZ6 /52W1-VWC10N000 | R902428984 |
| A A10V M 63 EZ6 /52W1-VWC10N007 | R902420253 |
| A A10V M 63 EZ6 /52W1-VWC10N007 -S1890 | R902437716 |
| A A10V M 63 EZ6 /52W1-VWC10N007 -S2292 | R902456134 |
| A A10V M 63 EZ6 /52W1-VWC10N007 -SO942 | R902454452 |
| A A10V M 63 EZ6 /52W1-VWC10N007 -SO942 | R992000860 |
| A A10V M 63 EZ6 /52W1-VWC10N007 -SO942 | R902477988 |
| A A10V M 63 EZ6 /52W1-VWC16N000 -SO752 | R902435183 |
| A A10V M 63 EZ6 /52W1-VWC60N000 | R910998241 |
| A A10V M 63 EZ6 /52W1-VWC60N000 | R992001066 |
| A A10V M 63 EZ6 /52W1-VWC60N007 | R902412662 |
| A A10V M 63 EZ6 /52W1-VWC60N007 -S1299 | R902425360 |
| A A10V M 63 EZ6 /52W1-VWC60N007 -S2093 | R902450664 |
| A A10V M 63 EZ6 /52W1-VWC60N007 -SO942 | R902409579 |
| A A10V M 63 EZ6 /52W1-VWC60N007 -SO942 | R992000683 |
| A A10V M 63 EZ6 /52W1-VWC66N007 -S1651 | R902428116 |
| A A10V M 63 EZ7 /52W1-VRC10N007P | R902547567 |
| A A10V M 63 EZ7 /52W1-VWC60N000 | R902455519 |
| A A10V M 63 HZ /52W1-VKC10N000 | R902517104 |
| A A10V M 63 HZ /52W1-VRC60N000 | R902500298 |
| A A10V M 63 HZ /52W1-VWC60N000 | R902429540 |
| A A10V M 63 HZ /52W2-VRC60N000 | R902434346 |
| A A10V M 63 HZ6 /52W1-VWC10N000 | R902417670 |
| A A10V M 85 DG /52W2-VRC10N000 | R902433174 |
| A A10V M 85 DG /52W2-VRC10N000 -S1854 | R902532872 |
| A A10V M 85 DG /52W2-VWC10N000 | R902554650 |
| A A10V M 85 EZ1 /52W2-VWC60N007 | R902445391 |
| A A10V M 85 EZ1/52W1-VUC10N007D -S1299 | R902415213 |
| A A10V M 85 EZ6 /52W1-VRC10N007 | R902423531 |
| A A10V M 85 EZ6 /52W1-VRC10N007H | R902542025 |
| A A10V M 85 EZ6 /52W1-VUC10N007 | R902413225 |
| A AA10V M 45 EZ1 /52W1-PRC60N000 -SO687 | R910984622 |
| A AA10V M 45 EZ1 /52W2-VRC10N000 -SO687 | R910984870 |
| A AA10V M 45 EZ2 /52W1-PUC60N000 -SO687 | R910984571 |
| A AA10V M 45 EZ2 /52W1-PUC60N000 -SO699 | R910985038 |
| AL A10V M 22 DFR1/52W1-PSC68N000 -SO483 | R910983829 |
| AL A10V M 28 DFR1/52W1-VSC68N000 -S1378 | R902403439 |
| AL A10V M 28 DG /52W1-VRC64N000 | R902500236 |
| AL A10V M 28 DG /52W1-VRC64N000 -S1046 | R902500201 |
| AL A10V M 28 HZ /52W1-PSC95N000 | R902500177 |
| AL A10V M 28 HZ /52W1-VSC60N000 | R902500215 |
| AL A10V M 45 DFR1/52WX-VSC95N0*UNGUEL*** | R902410584 |
| AL A10V M 45 DG /52W1-PUC66N000 | R910979661 |
| AL A10V M 45 DG /52W1-PUC66N000 -SO407 | R902412539 |
| AL A10V M 45 DG /52W1-PUC95N000 | R910979662 |
| AL A10V M 45 DG /52W1-VRC64N00 -SO481 | R902401044 |
| AL A10V M 45 DG /52W1-VRC64N000 -S1167 | R902409588 |
| AL A10V M 45 DG /52W1-VRC68B020 | R902401045 |
| AL A10V M 45 DG /52W1-VUC66N000 -S1207 | R902401159 |
| AL A10V M 45 DG /52W1-VUC66N000 -S1207 | R992001414 |
| AL A10V M 45 DG /52W1-VUC95N000 -S1207 | R902401158 |
| AL A10V M 45 DG /52W1-VWC64N00 | R902401373 |
| AL A10V M 45 DG /52W1-VWC64N00 -SO481 | R902401141 |
| AL A10V M 45 EZ1 /52W1-VRC10N007 | R902488557 |
| AL A10V M 45 EZ1 /52W1-VRC60N007 -S1065 | R902410050 |
| AL A10V M 45 EZ1 /52W1-VSC95N000 -S1173 | R902411639 |
| AL A10V M 45 EZ1 /52W2-VUC60N000 | R902406604 |
| AL A10V M 45 EZ6 /52W1-VRC10N007 | R902444316 |
| AL A10V M 45 EZ6 /52W1-VRC10N007 -S1064 | R902454333 |
| AL A10V M 45 EZ6 /52W1-VRC10N007 -S2310 | R902456944 |
| AL A10V M 45 EZ6 /52W1-VRC10N007 -S2310 | R902456945 |
| AL A10V M 45 EZ6 /52W1-VRC10N007 -SO942 | R902456771 |
| AL A10V M 45 EZ6 /52W1-VRC10N007P -SO942 | R902561278 |
| AL A10V M 45 EZ6 /52W1-VRC60N000 -SO763 | R902425699 |
| AL A10V M 45 EZ6 /52W1-VRC66N007P -S3350 | R902484163 |
| AL A10V M 45 EZ6 /52W1-VRC95N000 -SO763 | R902427407 |
| AL A10V M 45 EZ6 /52W1-VRC95N000 -SO763 | R992000736 |
| AL A10V M 45 EZ6 /52W1-VSC60N000 -SO752 | R902432012 |
| AL A10V M 45 EZ6 /52W1-VSC95N000 -S1173 | R902425674 |
| AL A10V M 45 EZ6 /52W1-VSC95N000 -S1674 | R902428838 |
| AL A10V M 45 EZ6 /52W1-VSC95N000 -S1674 | R902443194 |
| AL A10V M 45 EZ6 /52W2-VRC10N007 -SO942 | R902454657 |
| AL A10V M 45 EZ7 /52W1-VWC16N000 -S2632 | R902478692 |
| AL A10V M 45 EZ7 /52W1-VWC16N000D -S2632 | R902470392 |
| AL A10V M 45 EZ7 /52W1-VWC16N000F -S2632 | R902475177 |
| AL A10V M 45 HZ /52W1-VRC60N000 | R902433109 |
| AL A10V M 45 HZ /52W1-VRC66N007 -S1622 | R902460088 |
| AL A10V M 45 HZ /52W1-VRC66N007 -S3720 | R902474599 |
| AL A10V M 45 HZ /52W2-VRC66N007 -S1622 | R902427232 |
| AL A10V M 45 HZ /52W2-VRC66N007D -S1622 | R902450120 |
| AL A10V M 45 HZ /52W1-VRC66N007F -S3921 | R902505080 |
| AL A10V M 45 HZ /52W1-VRC66N007F -S3921 | R902488553 |
| AL A10V M 45 HZ6 /52W1-VRC64N007 -S1621 | R902431893 |
| AL A10V M 45 HZ6 /52W1-VRC64N007 -S2189 | R902437150 |
| AL A10V M 45 HZ6 /52W1-VRC64N007 -S2189 | R902438608 |
| AL A10V M 45 HZ6 /52W1-VRC64N007 ES2189 | R902406372 |
| AL A10V M 63 DFR1/52W1-VWC60N000 -SO677 | R902401655 |
| AL A10V M 63 EZ1 /52W1-VRC60N007D -S1299 | R902415810 |
| AL A10V M 63 EZ1 /52W1-VWC60N007 -S1064 | R902438310 |
| AL A10V M 63 EZ1 /52W1-VWC60N007D -S1299 | R902419334 |
| AL A10V M 63 EZ6 /52W1-VWC10N007 -S1890 | R902444315 |
| AL A10V M 63 EZ6 /52W1-VWC10N007P | R902548565 |
| AL A10V M 63 EZ6 /52W1-VWC10N007P | R902562987 |
| AL A10V M 63 EZ6 /52W1-VWC60N000P | R902490097 |
| AL A10V M 63 EZ6 /52W1-VWC60N007 | R902424940 |
| AL A10V M 63 EZ6 /52W1-VWC60N007 -S1299 | R902425359 |
| AL A10V M 63 EZ6 /52W1-VWC60N007 -S2093 | R902450663 |
| AL A10V M 63 EZ6 /52W1-VWC60N007P -S1464 | R902514782 |
| AL A10V M 63 EZ6 /52W1-VWC66N007 -S1651 | R902428117 |
| AL A10V M 63 HZ /52W1-VRC60N000 | R902406103 |
| AL A10V M 63 HZ /52W1-VWC60N000 | R902406116 |
| AL A10V M 85 EZ1 /52W-VUC10N007D -S1299 | R902415211 |
| AL A10V M 85 EZ1 /52W1-VWC60N000P | R902558584 |
| AL A10V M 85 EZ7 /52W1-VRC10N007P | R902539724 |
| ALAA10V M 45 EZ1 /52W1-PRC60N000 -SO687 | R902431314 |
| G A10V M 63 OV /52W1-VWC10N000 -SO548 | R902417599 |
Data Sheet : Rexroth Axial piston variable motor - A10VM
Technology Instrument
T.U Pack
Your Lift
