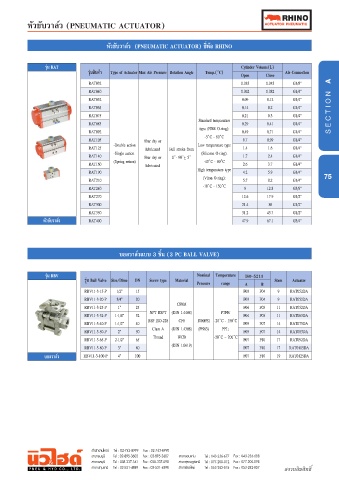

หัวขับวาล์ว (PNEUMATIC ACTUATOR) ยี่ห้อ RHINO

รุ่น RAT Cylinder Volume(L)
รุ่นสินค้า Type of Actuator Max Air Pressure Rotation Angle Temp.(°˚C) Open Close Air Connection
RAT032 0.035 0.045 G1/8”
RAT040 0.062 0.082 G1/4”
RAT052 0.09 0.12 G1/4”
RAT063 0.14 0.2 G1/4”
RAT075 0.21 0.3 G1/4”
RAT083 Standard temparature 0.29 0.41 G1/4”
RAT092 type (NBR O-ring): 0.49 0.71 G1/4”
RAT105 8bar dry or -5°˚C - 80°˚C 0.7 0.99 G1/4”
RAT125 -Double action lubricated Full stroke from Low temparature type 1.4 1.6 G1/4”
RAT140 -Single action 8bar dry or 0˚- 90°˚+ ±5˚° (Silicone O-ring): 1.7 2.4 G1/4”
RAT160 (Spring return) lubricated -40°˚C - 80°˚C 2.6 3.7 G1/4”
RAT190 High temparature type 4.2 5.9 G1/4”
RAT210 (Viton O-ring): 5.7 8.2 G1/4” 75
RAT240 -10°˚C - 150°˚C 9 12.8 G3/8”
RAT270 12.6 17.9 G1/2”
RAT300 21.4 30 G1/2”
RAT350 31.2 43.7 G1/2”
หัวขับวาล์ว RAT400 47.9 67.1 G3/4”

บอลวาล์วแบบ 3 ชิ้น (3 PC BALL VALVE)

รุ่น RBV Nominal Temperature ISO-5211
รุ่น Ball Valve Size/Dime DN Screw type Material Pressure range A B Stem Actuator
RBV11-3-15-P 1/2” 15 F03 F04 9 RAT052DA
RBV11-3-20-P 3/4” 20 F03 F04 9 RAT052DA
RBV11-3-25-P 1” 25 CF8M F04 F05 11 RAT052DA
RBV11-3-32-P 1-1/4” 32 NPT BSPT (DIN 1.4408) PTFE: F04 F05 11 RAT063DA
RBV11-3-40-P 1-1/2” 40 BSP ISO-228 CF8 1000PSI -20º˚C - 150º˚C F05 F07 14 RAT075DA
RBV11-3-50-P 2” 50 Class A (DIN 1.4308) (PN63) PPL: F05 F07 14 RAT083DA
RBV11-3-65-P 2-1/2” 65 Thread WCB -20˚ºC – 200º˚C F07 F10 17 RAT092DA
RBV11-3-80-P 3” 80 (DIN 1.0619) F07 F10 17 RAT0105DA
บอลวาล์ว RBV11-3-100-P 4” 100 F07 F10 19 RAT0125DA
