AirTAC FRL ชุดกรองลมดักน้ำ รุ่น GAC Series

AirTAC FRL ชุดกรองลมดักน้ำ รุ่น GAC Series
F.R.L. COMBINATION แบบ 3 ตัวเรียง

Features | AirTAC FRL ชุดกรองลมดักน้ำ GAC Series

  1. Oil dripping adopts gap seal structure, which makes the adjustment of oil supply more reliable.
  2. Oil feed ring can only make one full turn. The quantity of oil supply, basically taking on linear distribution. The quantity of oil supply can be generally calculated according to the position of graduation ring.
  3. Filling of oil while the lubricator is under pressure is made possible.
  4. Special drip nozzle structure will produce negative pressure in oil dripping outlet and the mist flow is minimal.
  5. Quick and reliable mounting clamps makes it convenient to install and use.
  6. The performance of pressure adjustment is reliable with high precision.
  7. The efficiency of eliminating moisture and solid grain is high.
  8. Two drain types are available: manual drain+semi-auto drain and automatic drain.
  9. Three bowl materials are available: PC, Metal and Nylon.
airtac

สัญลักษณ์ (Symbol) FRL ชุดกรองลมดักน้ำ รุ่น GAC series

Symbol GAC Series

แบบไม่มีวาล์วป้องกันแรงดันเกินย้อนกลับ แบบมีวาล์วป้องกันแรงดันเกินย้อนกลับ


AirTAC FRL ชุดกรองลมดักน้ำ GAC Series

ประกอบด้วยตัวกรองลม Filter, ตัวปรับแรงดันลม Regulator, และตัวจ่ายน้ำมัน ผสมน้ำมันหล่อลื่น Lubricator ได้แก่ รุ่น GAC200-06 / GAC200-08 / GAC300-08 / GAC300-10 / GAC300-15 / GAC400-10 / GAC400-15 / GAC600-20 / GAC600-25

Specification | AirTAC FRL ชุดกรองลมดักน้ำ GAC Series

ModelGAC200-06GAC200-08GAC300-08GAC300-10GAC300-15GAC400-10GAC400-15GAC600-20GAC600-25
Fluid Air
Port size [Note 1] 1/8" 1/4" 1/4" 3/8" 1/2" 3/8" 1/2" 3/4" 1"
Filtering grade 40 µm or 5 µm
Pressure range 0.15-0.9 MPa (20-130 psi)
Max. pressure 1.0 MPa (145 psi)
Proof pressure 1.5 MPa (215 psi)
Temperature range -5 to 700°C (Unfreeze)
Capacity of drain bowl 25 CC 60 CC 100 CC 205 CC
Capacity of oil bowl 36 CC 98 CC 185 CC 410 CC
Recommended lubricant ISO VG 32 or equivalent
Weight 750 g 1300 g 2390 g 4600 g
ConstituteFilter GAF200-06 GAF200-08 GAF300-08 GFA300-10 GFA300-15 GFA400-10 GFA400-15 GFA600-20 GFA600-25
Regulator GAR200-06 GAR200-08 GAR300-08 GAR300-10 GAR300-15 GRA400-10 GAR400-15 GAR600-20 GAR600-25
Lubricator GAL200-06 GAL200-08 GAL300-08 GAL300-10 GAL300-15 GAL400-10 GAL400-15 GAL600-20 GAL600-25

[Note 1] PT thread, G thread and NPT thread are available.

Ordering code | AirTAC FRL ชุดกรองลมดักน้ำ รุ่น GAC Series

ตัวอย่าง: GAC300 10S WGK

วิธีการเลือก Code: GAC3001 [ ]2 103 [ ]4 S5 [ ]6 W7 G8 K9

(1) Model(2) Bowl material(3) Port size(4) Drain type(5) Type code(6) Pressure gauge(7) Filtering grade(8) Thread type(9) Code of reflux valve
GAC200 : GA200 Series F.R.L unit Blank: PC bowl
C: Metal bowl
N: Nylon bowl
06: 1/8"
08: 1/4"
Blank : Semi-auto drain
+ Manual drain
A: Automatic drain
S: Standard
L: Lower pressure [Notel]
Blank: Circular
N: No gauge
Blank: 40µm
W: 5µm
Blank : PT
(MPa/psi)
G: G
(bar/MPa)
T: NPT
(psi/bar)
Blank: No reverse flow valve is attached
K : Reverse
flow valve is attached
[Note2]
GAC300 : GA300 Series F.R.L unit 08: 1/4"
10 : 3/8"
15: 1/2"
GAC400 : GA400 Series F.R.L unit 10: 3/8"
15 : 1/2"
GAC600 : GA600 Series F.R.L unit C: Metal bowl 20: 3/4"
25: 1"
  • [Note 1] The maximum work pressure of lower pressure type is 0.4 MPa (58 psi);
  • [Note2] Please refer to page 194 for details of reflux valve.

Inner Structure | AirTAC FRL ชุดกรองลมดักน้ำ รุ่น GAC Series

Inner structure AirTAC GAC Series
Inner structure AirTAC GAC Series
NOItem
1 GA series flter
2 Bracket
3 GA series regulator
4 GA series lubricator

Pressure Chart | AirTAC FRL ชุดกรองลมดักน้ำ รุ่น GAC Series

Inner structure AirTAC GAC Series
Inner structure AirTAC GAC Series
Inner structure AirTAC GAC Series
Inner structure AirTAC GAC Series

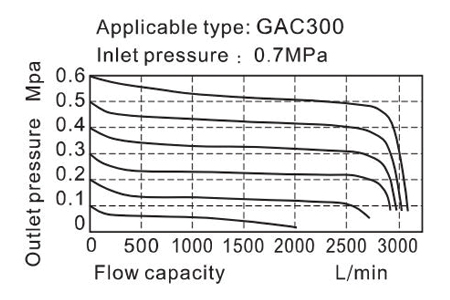

Flow Chart | AirTAC FRL ชุดกรองลมดักน้ำ รุ่น GAC Series

Flow chart AirTAC GAC Series
Flow chart AirTAC GAC Series
Flow chart AirTAC GAC Series
Flow chart AirTAC GAC Series

Dimensions | AirTAC FRL ชุดกรองลมดักน้ำ รุ่น GAC Series

Dimensions AirTAC GAC Series
Dimensions AirTAC GAC Series
Model/ltemABBABBCKKAKBPPAPBQ
GAC200-06 163.5 69 30 55.5 160 5.5 55.5 8.5 1/8" 25 120 M5X0.8
GAC200-08 163.5 69 30 55.5 160 5.5 55.5 8.5 1/4" 25 120 M5X0.8
GAC300-08 195 83 41.5 72 203.5 6.5 66.5 9 1/4" 35 158 G1/4
GAC300-10 195 83 41.5 72 203.5 6.5 66.5 9 3/8" 35 158 G1/4
GAC300-15 195 83 41.5 72 203.5 6.5 66.5 9 1/2" 35 158 G1/4
GAC400-10 248 99 50 88 227 8.6 84 12 3/8" 40 177.5 G1/4
GAC400-15 248 99 50 88 227 8.6 84 12 1/2" 40 177.5 G1/4
GAC600-20 312 128 70 117 267.5 11 106 16 3/4" 50 205 G1/4
GAC600-25 312 128 70 117 267.5 11 106 16 1" 50 205 G1/4
